IMC Series Industrial Fiber Media Converter
The IMC Series Industrial Fiber Media Converter converts between 10/100Base-TX and 100Base-FX, connecting copper-based cabling systems with fiber optic cabling systems. The self-designed converter is built to industrial-grade, high-reliability standards, featuring high-standard power supply tolerance, protected industrial circuit, plug and play, etc.
|Interface||RJ45 port||10/100Base-T(X) auto-sensing|
|FX fiber port||100Base-FX (SC/ST/FC)|
|Power Supply||Input voltage||24 VDC (12~48 VDC), support redundant inputs|
|Reverse polarity protection||Available|
|Power consumption||< 3 W|
|Mechanical Structure||Dimension (mm)||30x70x100|
|Installation||DIN-Rail and Wall Mounting (kit optional)|

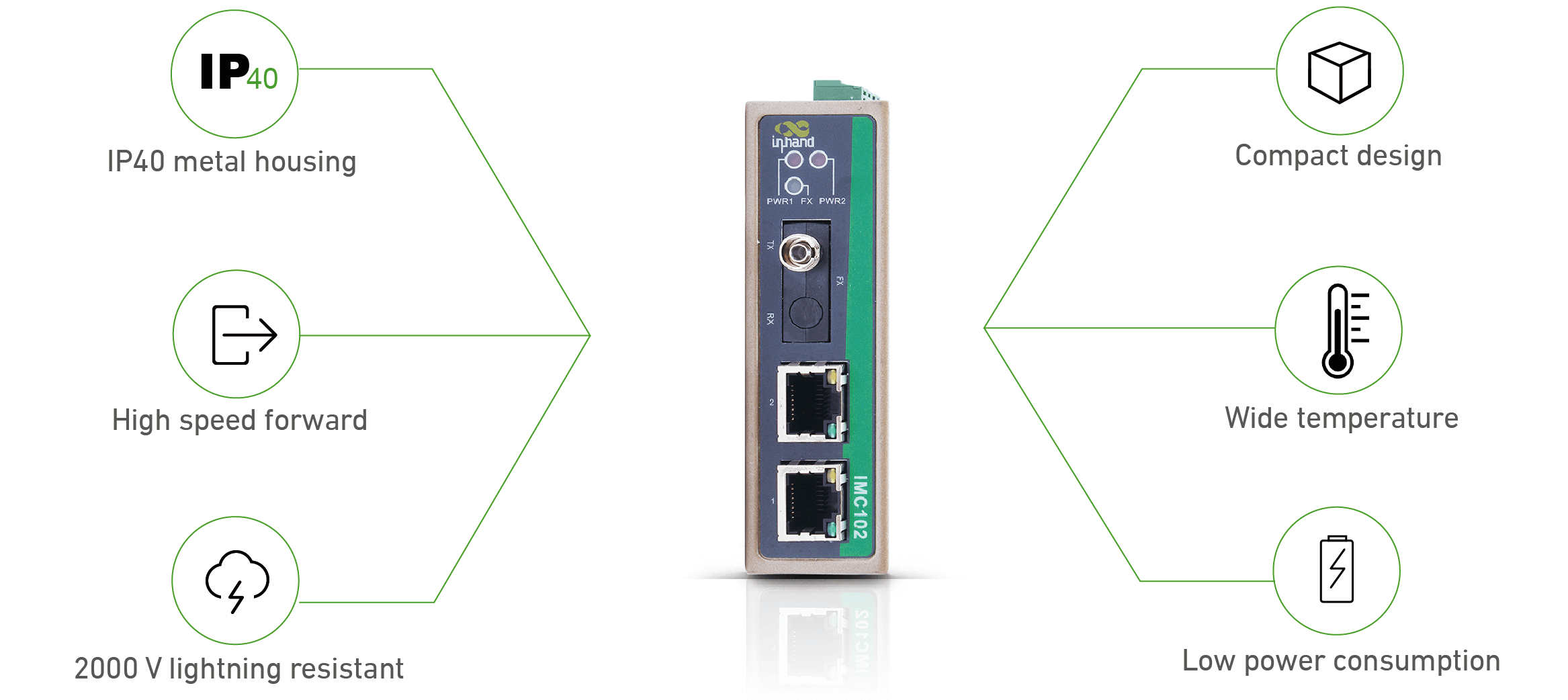

Industrial Rugged Converter

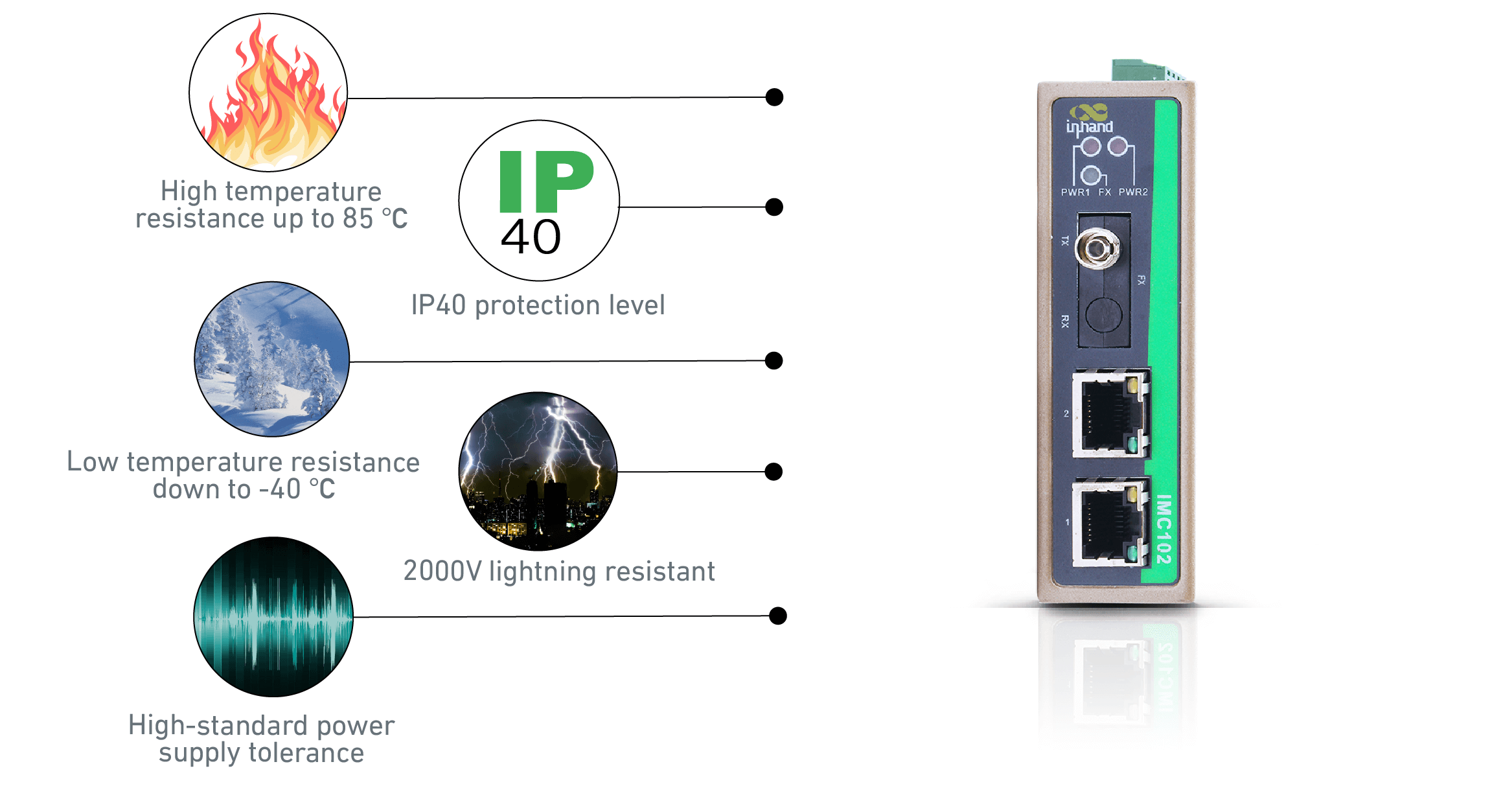

The IMC is designed for industrial applications including electric power, transportation and industrial control. Featuring high-standard power supply tolerance, protected industrial circuit, plug and play, the IMC has been proved reliable and durable.

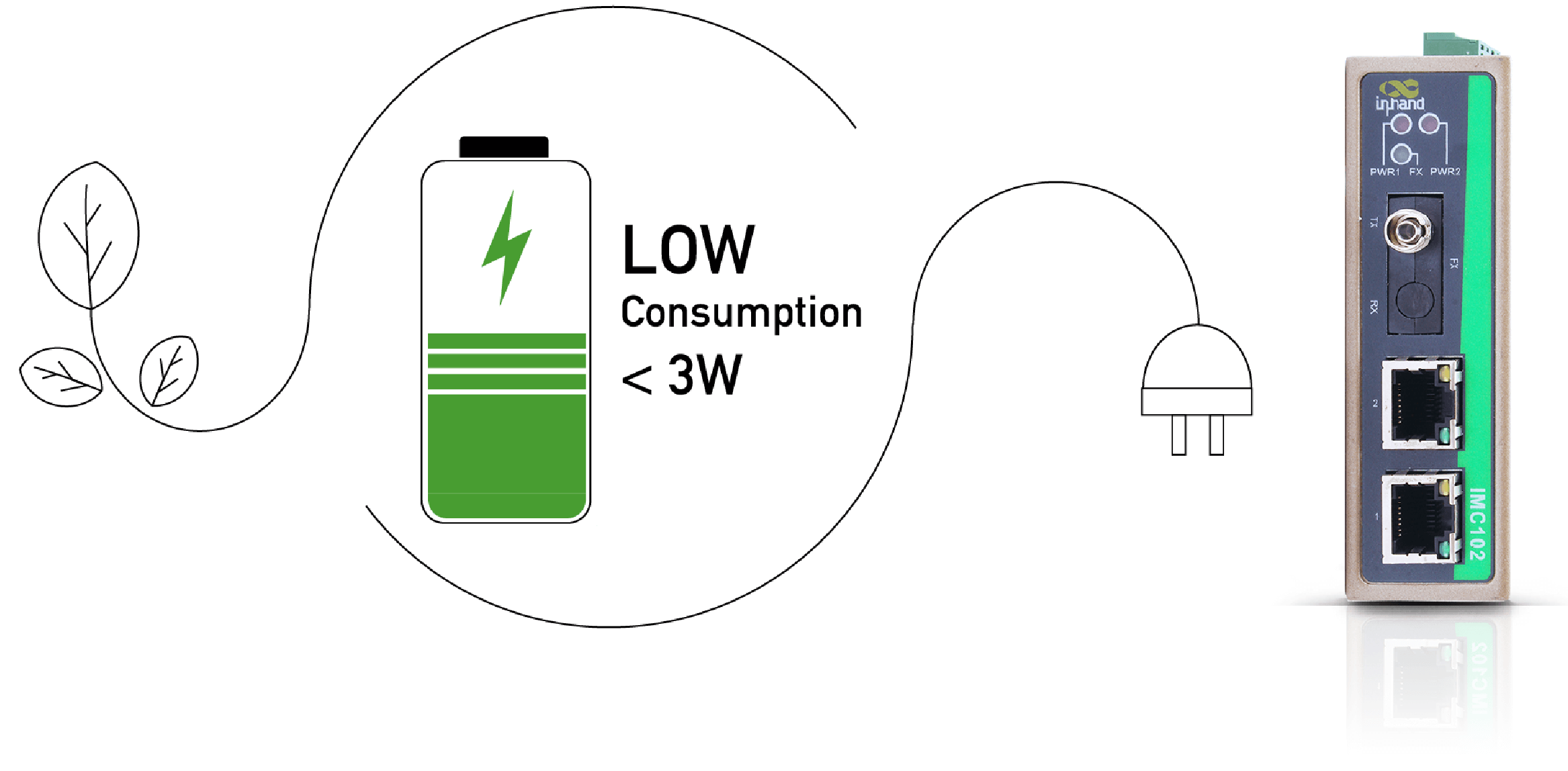

Low Power Consumption
Power consumption is less than 3W, adopting dual redundant power inputs with overload protection and reverse polarity to strength stability.

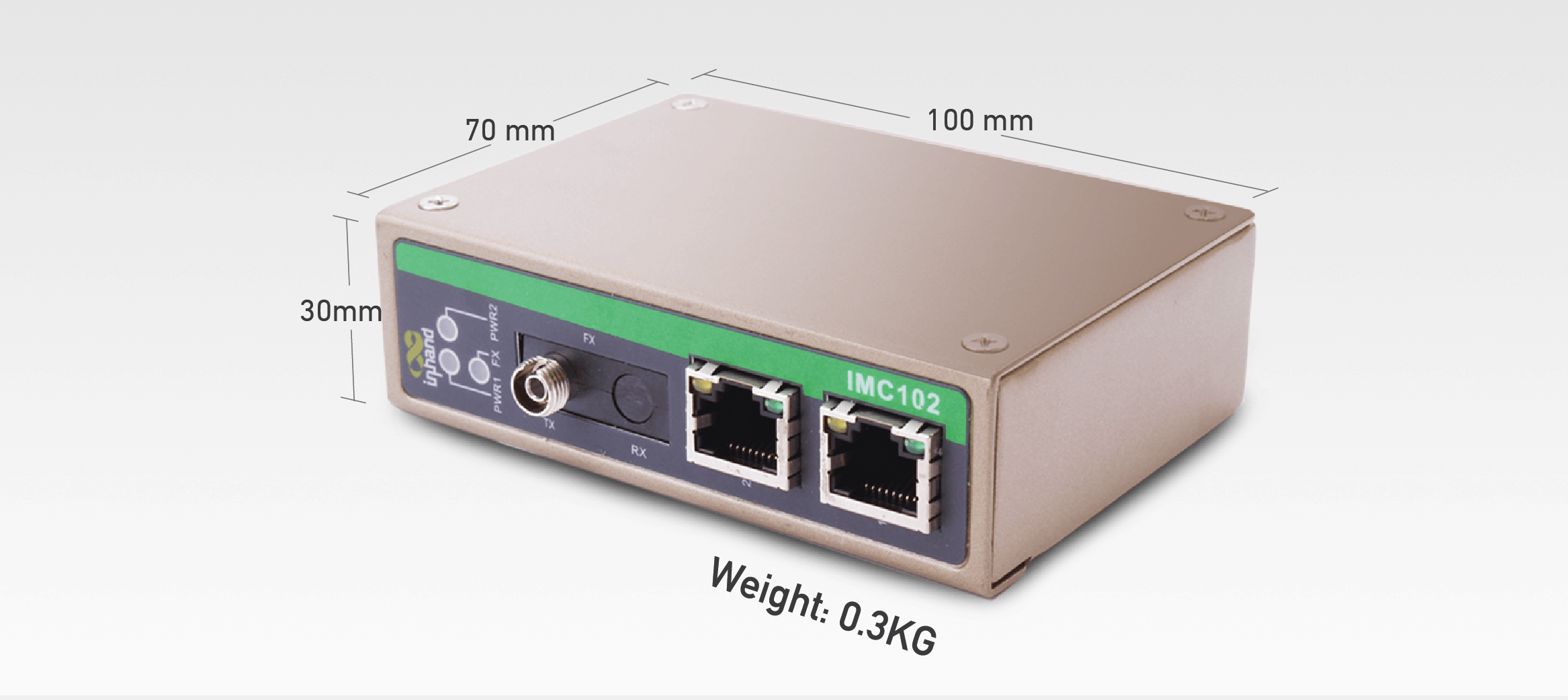

Compact Design, Easy to Fit
