InBox710 High Performance Industrial-Grade Computer

InHand NetworksSKU: InBox710-FS39-STD
filler

Price:
$339

Industrial Computer for Unattended Retail

The InBox710 is an industrial-grade edge computer powered by a high-performance ARM processor integrating dual-core Cortex-A72, quad-core Cortex-A53 and Mali T860 MP4 GPU, which enables artificial intelligence at the edge.

Featuring 4K Ultra HD on HMDI, touch screen interface, advanced peripherals on USB & serial ports, and highspeed LTE connectivity, the InBox710 is the engine of unattended retail solutions.

With rugged metal enclosure and wide temp -20°C to +70°C, the InBox710 is designed to withstand outdoor or harsh environments.

Ordering Guide

Mode Model code: : InBox710-<WMNN><STD><S>
<WMNN>: wireless type & module <STD/L>:OS <S>:Serial port type
InBox710-FS39-STD North America, Verizon Wireless
LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
STD: standard Android version <NA>: RS232 x 3
-485: RS485 x 1, RS232 x 2
InBox710-FS39-L North America, Verizon Wireless
LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
L: Linux <NA>: RS232 x 3
-485: RS485 x 1, RS232 x 2

Features and Advantages

  • +    ARM Dual-core Cortex-A72 &
         Quad-core Cortex-A53
  • +    Android 7.1, Linux(ubuntu)
  • +    4G LTE
  • +    Wi-Fi
  • +    Gigabit Ethernet
  • +    HDMI
  • +    Serial
  • +    USB 3.0
  • +    16GB Flash
  • +    Fanless Design
  • ● AI for Unattended Retail

Equipped with a powerful ARM processor, USB 3.0, and LibUSB+LibUVC,
the InBox710 is capable of driving 3D cameras and other peripherals to
enable facial/voice recognition powered by AI.

  • ● High-speed and Reliable LTE Connectivity

With 4G LTE/3G, the InBox710 ensures reliable and continuous
connectivity for digital signage and retail.

  • ● 4K Ultra HD Display & Touchscreen Interface

The InBox710 edge computer/media player supports 4K@60 HZ and touchscreen to display ultra HD videos and interactive UI for an
engaging customer experience.

Product Detail

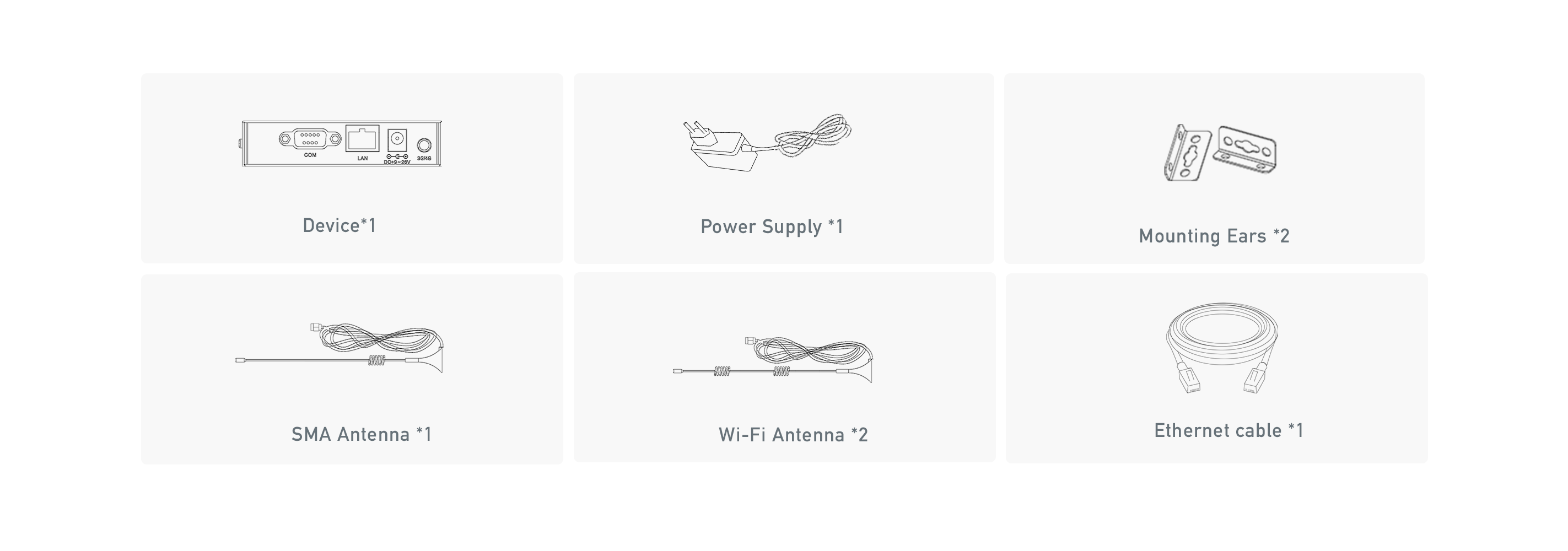

Packaging List

Certification

InBOX710
Processor
CPU ARM Dual-core Cortex-A72 & Quad-core Cortex-A53. 1.8 GHz, 64-bit
GPU ARM Mali-T860MP4 GPU, support OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1 etc
Memory 2 GB DDR3 or LPDDR4
Flash 16 GB eMMC
Graphic
Processing Dual ISP, up to 800 MPix/s. 3D, and deep information extraction
Video codec H.265/H.264/VP9 4K@60 fps HD video decoding
Image BMP, JPG, PNG, and GIF
Interface
SIM SD slot × 1, 1.8 V/3 V
Antenna 4G: SMA × 1; Wi-Fi/Bluetooth: RP-SMA × 1
Serial RS232 x 3 (1 RS232 can be configured to RS485), DB9 male connector
USB USB 2.0 x 2, USB 3.0 x 1
Ethernet Gigabit Ethernet × 1, LAN/WAN;
HDMI HDMI 2.0 x 1. Resolution: 4096×2160(4K), 1920x1080, 1366x768, 1280x720, 1024x768
Wi-Fi 802.11b/g/n, Client/AP mode
LED Indicators Power, Operating, 4G, Wi-Fi
Power DC input-12 V DC
Physical
Mounting Wall-mounted
Housing Metal, IP40
Dimensions 17x15x2.6cm
Cooling Fanless
Environment
Operating Temperature -20°C to +70°C (industrial grade)
Storage Temperature -40°C to +85°C
Humidity 5–95% (non-condensing)
Software
OS Android 7.1/Linux(ubuntu)
Others
Watchdog Support
Hardware information Custom API used to read hardware information.
RTC Embedded RTC, power supply with a supercapacitor
Power consumption <10 W
EMC
Level ESD: EN61000-4-2, level 3; EFT: EN61000-4-4, level 2; Surge: EN61000-4-5, level 2
Certifications
CE, FCC, Verizon Wireless, AT&T
