InGateway500 Compact Edge Computing Gateway

Save $26
InHand Networks SKU: IG501-FS58
filler

Price:
$199 $225

Powerful Edge Computing, Multiple Industrial Protocols, Fast Python Customization

The InGateway500 is a small-sized, compact edge computing gateway that features powerful edge computing capabilities. It provides uninterrupted Internet access over globally ubiquitous 3G/4G wireless networks and supports major IoT cloud platforms such as AWS and Microsoft Azure.



Powerful Edge Computing, Multiple Industrial Protocols, Python programmable. VPN

Product Highlights

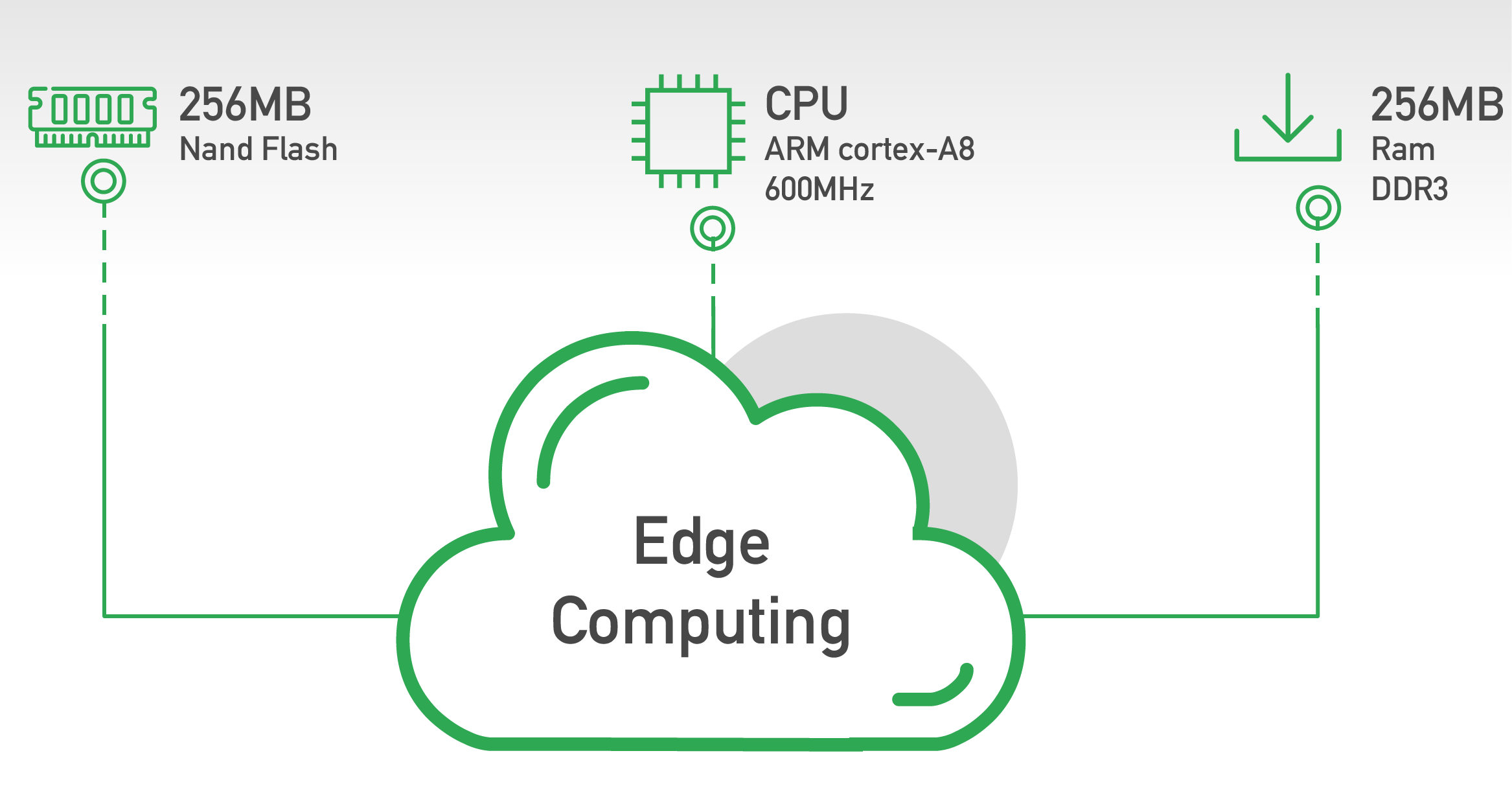

Powerful Computing Capability

The product is equipped with the hardware required for full-scale IoT edge computing, including a high-performance ARM Cortex-A8 processor, high capacity DDR3 RAM up to 256MB, which give the gateway powerful edge computing capability.

Edge computing with 256MB Nand Flash, CPU ARM cortex-A8 600MHz, 256MB Ram DDR3

Compatible with Multiple Industrial Protocols

To adapt to the broadly diversified IoT industry, InGateway500 is compatible with a rich selection of mainstream industrial real-time Ethernet protocols and fieldbuses, including Modbus TCP, Modbus RTU, ISO on TCP, etc..

Modbus TCP EtherNET/IP, Modbus RTU ISO on TCP

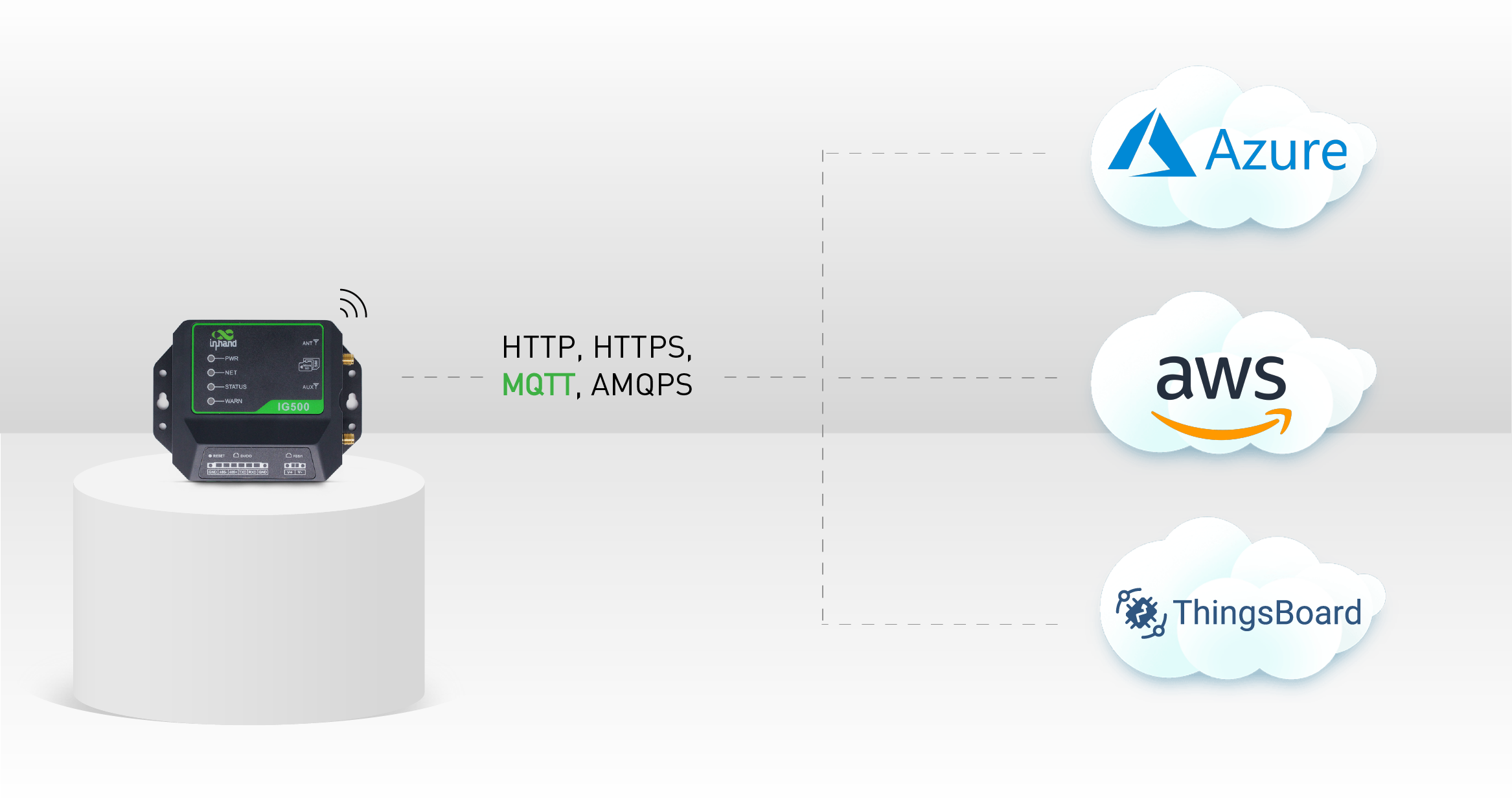

A Cooperative Ecosystem

InHand has become a partner of Microsoft and Amazon, providing users with multiple industrial cloud solutions. The edge computing gateway supports Microsoft AZURE, Amazon AWS Greengrass and ThingsBoard cloud platform.

InGateway902 Industrial Edge Computing Gateway with Azure, AWS IoT Greengrass Qualified

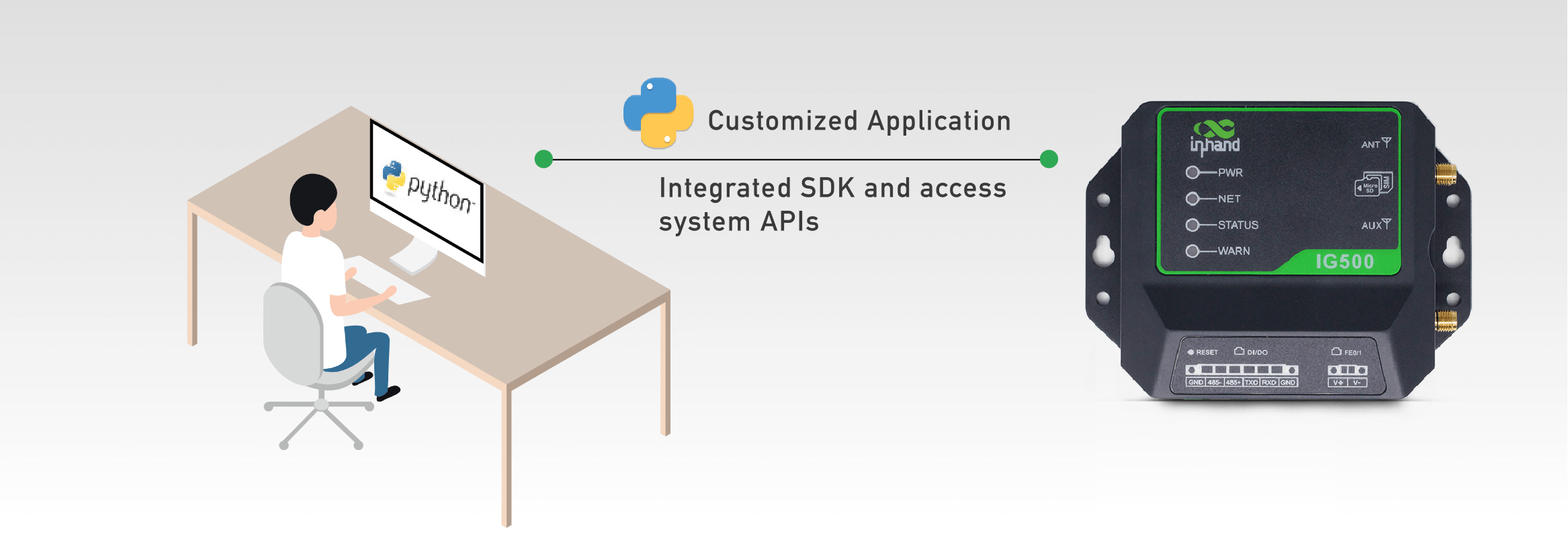

Python Custom Development Platform

Embedded with support of the Python development platform, customers may custom develop applications to meet their application requirements. While with the integrated SDK provided by InHand, customers may access the system APIs and other resources easily.

Integrated SDK and access system APIs

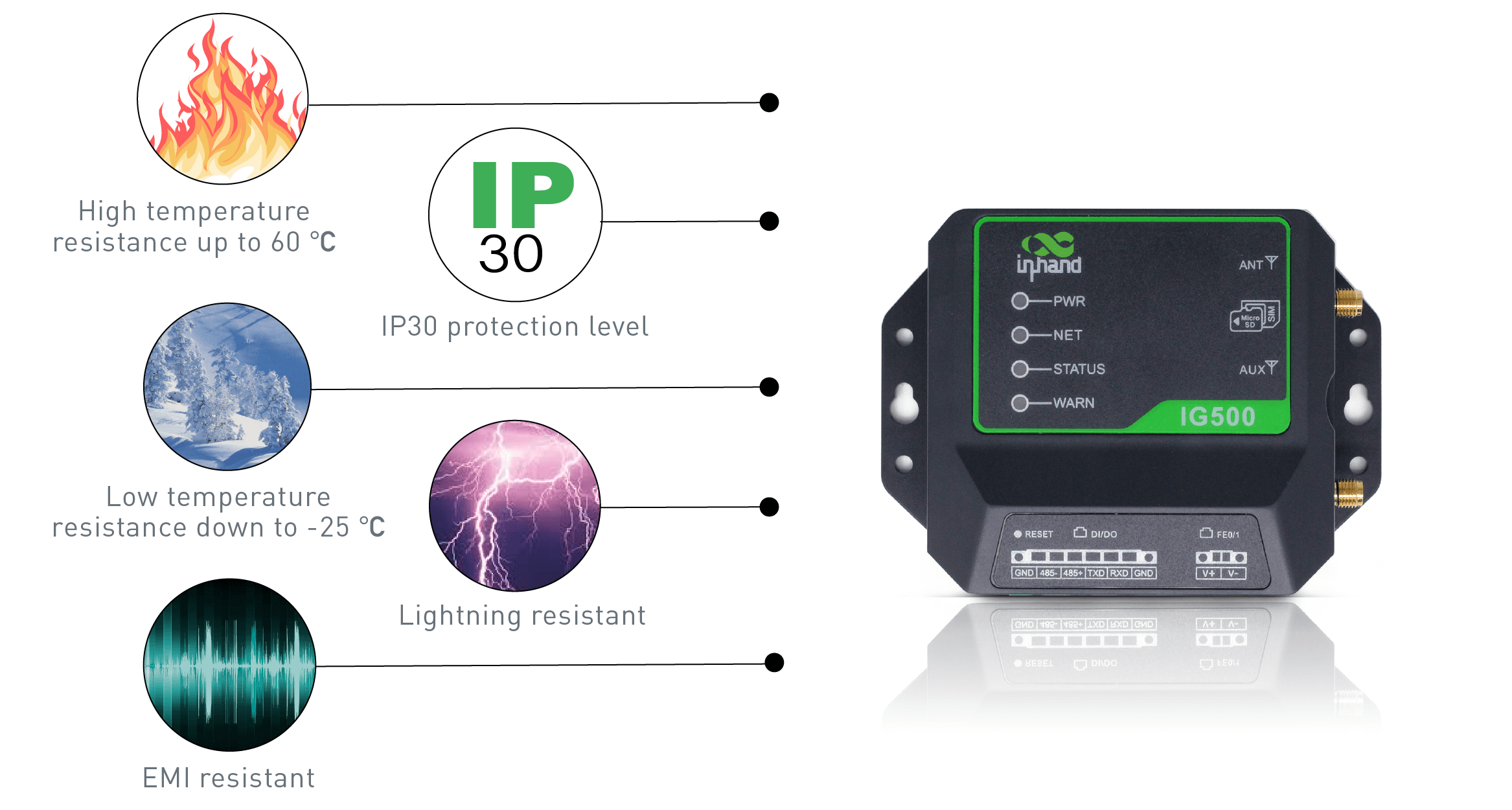

Full industrial design

EMC level 3, fan-less cooling, solid metal shell, strong resistance to lightning and EMI, effectively reduce fault rate.

-25℃~60℃, IP30 protection level, lighting resistant, EMI resistant

Remote Centralized Management

InGateway500 is also compatible with InHand Remote Management System. This platform allows to remotely manage & monitor status and parameters of all routers & gateways by InHand Networks

InHand Device Manager- Join for free
  • • Remotely manage your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping management and access control
  • • Monitor device status and data usage in real time
  • • Easily track your devices in a map view
InHand Device Manager- Join for free

Product Detail

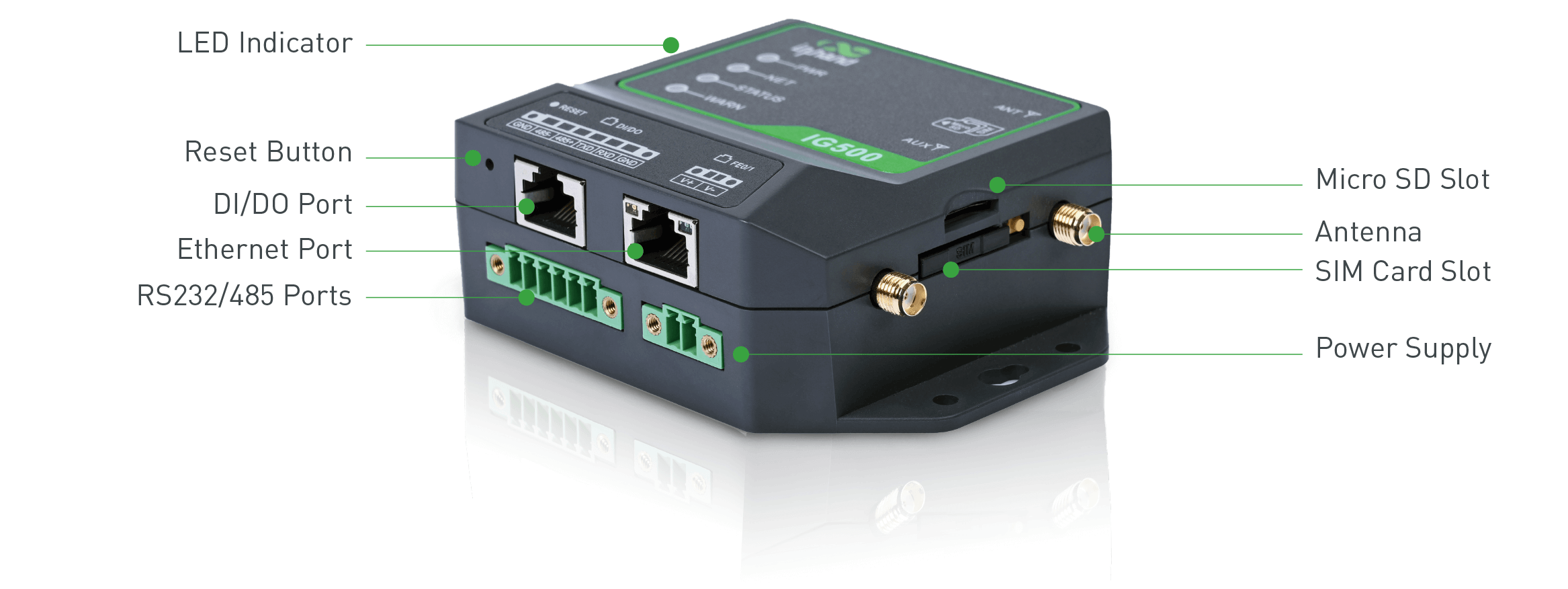

LED Indicator, reset button, DI/DO port, RS232/RS485 ports, Micro SD Slot, SIM Card Slot

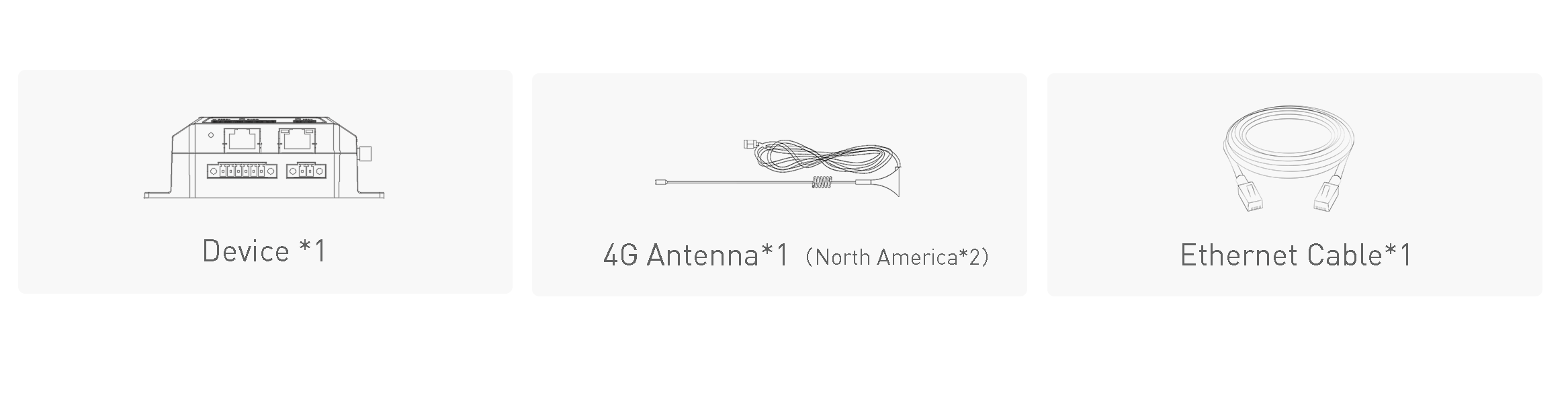

Packaging List

Device, 4G Antenna, Ethernet Cable

Certification

  • CE certification
Network type Model (region) Band
LTE CAT-4 IG501-FS58 (EMEA, APAC) LTE-FDD Band 1/3/8/20/28
UMTS(DC-HSPA+) Band1/8
GPRS 900/1800MHz
LTE CAT-1 IG501-FB13 (North America) LTE-FDD Band 2/4/5/12
UMTS(DC-HSPA+) Band2/5
(For North America, AT&T )

IG501 Hardware Specifications
Hardware Platform
CPU ARM Cortex-A8 600MHz
RAM 256MB
FLASH 256MB
Interfaces
Ethernet Port 1*10/100Mbps Ethernet port
I/O 4*DI/DO, configurable
Serial Port RS-232*1, RS-485*1, industrial terminal
SIM Card Slot SIM*1
MircoSD Expansion MicroSD Supported
Antenna SMA x 2
Mechanical Features
Installation Lug mounting
Housing Engineering plastic
Protection Rating IP30
Cooling Fan-less cooling
Power Supply
Power Input DC 9-35V
Polarity reverse protection Supported
Power Interface Industrial Terminal
Ambient Temperature and Humidity
Ambient Humidity 5 ~ 95% (non-condensing)
Storage Temperature -40 ~ 85℃
Working Temperature -25 ~ 70℃
EMC index
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulse Electric Field EN61000-4-4, level 3
Surge EN61000-4-5, level 3
Conducted Disturbance EN61000-4-6, level 3
Power Frequency Magnetic Field EN61000-4-8, horizontal / vertical 400A/m (>level 3)
Shockwave Immunity EN61000-4-12, level 3
Physical Features
Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE
IG501 Software Specifications
Network Interconnection
Network Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Network Type LTE, WCDMA(HSPA+), EVDO, EDGE, GPRS, CDMA
LAN Protocol ARP, Ethernet
Network Protocols
IP Application ICMP, DNS, TCP/UDP, TCP server, DHCP
IP Routing Static routing
Network Security
Firewall Stateful packet inspection (SPI), anti-DoS attack
Filter multicast/Ping probe packet, Access Control List (ACL) NAT,
PAT, DMZ, port mapping, virtual server
User Level Multi-level user authorization
Certificate Management Digital certificate
Data Security OPENVPN
Others ARP attack protection, DMZ
Reliability
Link Detection Heartbeat packet detection, auto-redials once disconnected
Embedded Watchdog Device self-diagnosing, auto-recovers from operation faults
Open Platform
Multiple Platforms Supported Python platform for custom development
Microsoft Azure
Amazon AWS
Industrial Protocol
Multiple Industrial Protocols Supported Modbus RTU, Modbus TCP, ISO on TCP, etc.
