InMetrics K16 Body Temperature Screening Kiosk

InHand Networks SKU: InMetrics K16-B-DQ60-OTHERS
filler

Price:
$1,499

InMetrics K16 Instantaneous Body Temperature Screening Kiosk

As winter approaches, the shopping season is about to begin. Keeping employees/customers safe is becoming our top priority. The InMetrics Body Temperature Scanning Kiosk helps you build a safe working/shopping environment for your employees/customers by providing instantaneous temperature scanning. Applicable scenarios include but not limited to schools, offices, factories, restaurants, cinemas, supermarkets. Get real-time body temperature scanning results.

InMetrics K16 Body Temperature Scanning Kiosk    InMetrics K16 Body Temperature Scanning Kiosk

Product Highlights

Three Temperature Scanning Modes to Choose From

InMetrics K16 Body Temperature Scanning Kiosk Three modes satisfy different scenarios’ needs

High Accuracy and Instantaneous Temperature Screening in less than 1 Second

With an advanced infrared camera featuring industry-leading high resolution 160x120 and 50Hz frame rate, the InMetrics K16 is able to offer instant scanning with a response time less than 1s and high accuracy data (<=0.9) to keep the traffic moving. Even in front of different backgrounds, wearing a hat or mask, it will calibrate automatically to provide accurate temperature scanning.

High Accuracy and Instantaneous Body Temperature Scanning less than 1 Second

Protect Your Employees by Allowing Them to Monitor from a Distance


● Real-time data recording, automatic email notification on over-temperature
● Customizable temp. thresholds, instant “Proceed / Wait” indication and verbal feedback
● Screen Casting to another computer, let your employees monitor from a distance
● Full API supports integration with 3rd party Building Management System

Protect your employees by allowing them to monitor visitors/customers’ body temperature from a distance

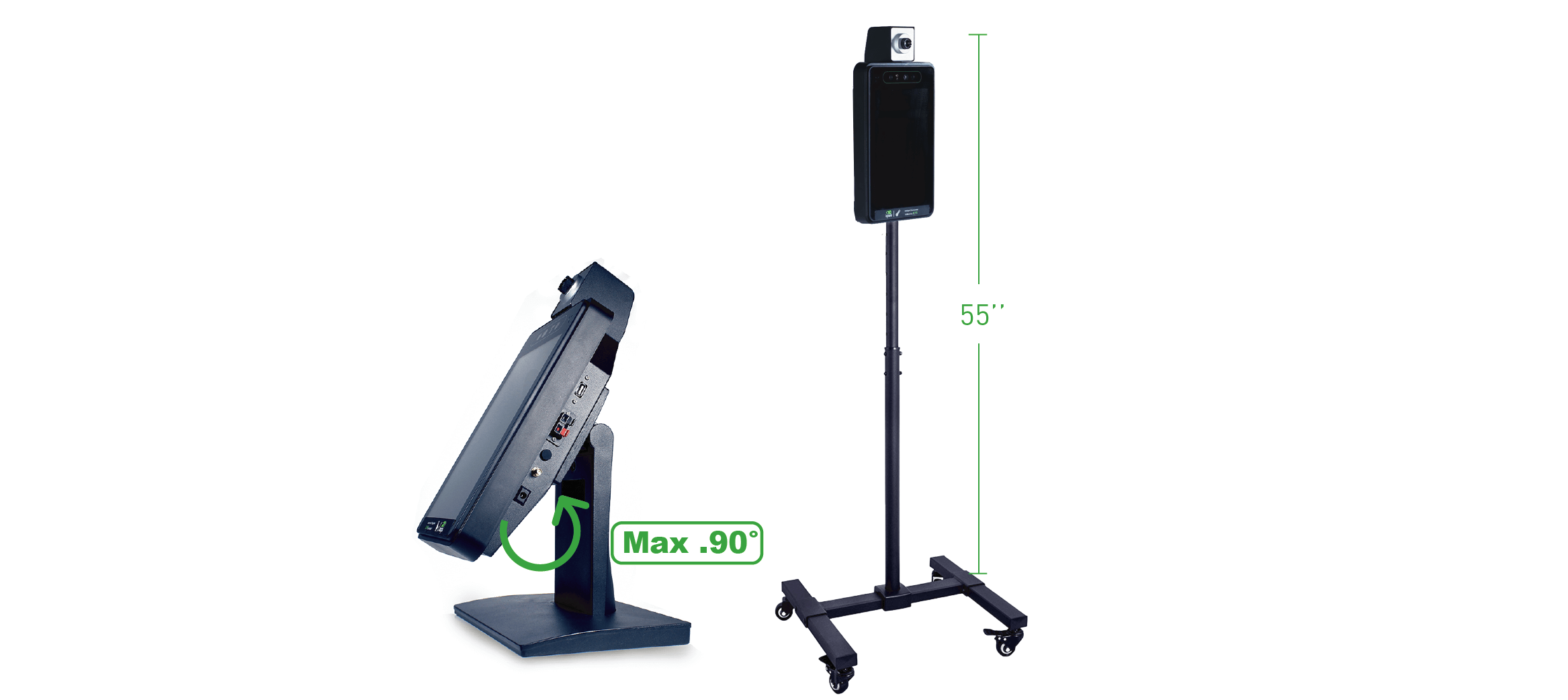

Flexible Height And Angle

With a standard table stand, you can adjust the screen angle from 0° to 90°. The InMetrics K16 body temperature screening kiosk also supports different floor stands and customized options for various scenarios.

(Click to buy from Amazon: Recommended Floor Stand, Recommended Wall Stand )

Flexible height and angle

Product Detail

K16 Body Temperature Scanning Kiosk

Packaging List

K16 Body Temperature Scanning Kiosk device, wifi antenna, power supply

InMatrics K16  Specifications

Infrared Image Sensor

Infrared Pixels

160x120

Detection Distance

0.75m-1.5m (2.5~5ft)

Angle of View

6.5mm(36°x28°)

Angular Resolution

3.8mrad

Frame Rate

50Hz

Measuring Range

20°C ~ 45°C / 68°F ~ 113°F

Accuracy

 ≤ ±0.5°C / 0.9°F

(After on-site calibration: ±0.3°C / 0.5°F)

Thermal Sensitivity

<80mK

Image Sensor

Camera

3D Camera x 1

Processor

CPU

Qualcomm Octa-core processor, 1.8 GHz

Memory & Flash

2GB LPDDR3 RAM; 16 GB eMMC

Display

10.1 inch (1280*800)

Software

OS

Android 7.1

Hardware

Power Consumption

Less than 10W,12V power supply

Interface

USB

Type A USB2.0 x1

Wi-Fi

802.11b/g/n, external antenna

Cellular

Optional: 4G LTE

Relay

Ultimate load 30V,1A,30W

Power

DC input-12 V DC

Physical

Dimensions

43.9cm*25.7cm*19.4cm, IP40

Environment

Temperature

Operating: for indoor only
Temp. 15°F to 122°F.
Humidity: 5-95% non-condensing

Shock Wave Resistance EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance ; EN61000-4- -8, horizontal Ivertical 400A/m (>level 2)

Installation

Option 1

Desk Stand

Option 2

Wall Mount

Option 3

Floor Stand


Model code

InMetrics K16

With Relay Output

InMetrics K16-B

Without Relay Output
