InRouter611-S Small and Secure Industrial 4G WiFi Router

Save $21
InHand NetworksSKU: IR611-S-FB53
filler

Price:
$129 $150

Compact Industrial Router With 3G/4G, Wi-Fi and VPN

The InRouter611-S (also IR611-S) is a series of compact IoT router that supports 3G/4G, WiFi and VPN. It provides easy network access for field devices with 3G/4G wireless WAN and Wi-Fi wireless LAN support, helps to build device networks scaling from tens up to tens of thousands. Great for quick deployment in mission critical IoT applications where advanced networking, ease of use and security features are needed.

Operation Band

Network type Model (region) Band
LTE CAT-4 or 6 IR611-S-S-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band 1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
R611-S-FQ88 (Japan) LTE-FDD CAT 4 Band 1/3/8/18/19/26
UMTS(DC-HSPA+) Band 1/3/8
EDGE/GPRS/GSM 900/1800HHz
IR611-S-FS18 (North America, AT&T) LTE-FDD CAT 3 Band2/4/5/17
UMTS(DC-HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
IIR611-S-FS28 (North America, Verizon Wireless) LTE-FDD CAT3  Band 4/13
UMTS(DC-HSPA+) Band 2/4/5
EDGE/GPRS/GSM850/900/1800/1900MHz
IR611-S-FS39 (North America, Verizon, AT&T) LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-1 IR611-S-FB53 (EMEA) LTE-FDD CAT 1 Band 3/7/20
EDGE/GPRS/GSM 900/1800/MHz
IR611-S-FB13 (North America, AT&T) LTE-FDD CAT 1 Band2/4/12
IR611-S-FB23 ( North America, Verizon Wireless) LTE-FDD CAT 1 Band4/13
LTE CAT-M1/NB IR611-FB02 (Global) Band 1/2/3/4/5/8/12/13/17/18/19/20/25/26/28 (Band 39 in M1 only)

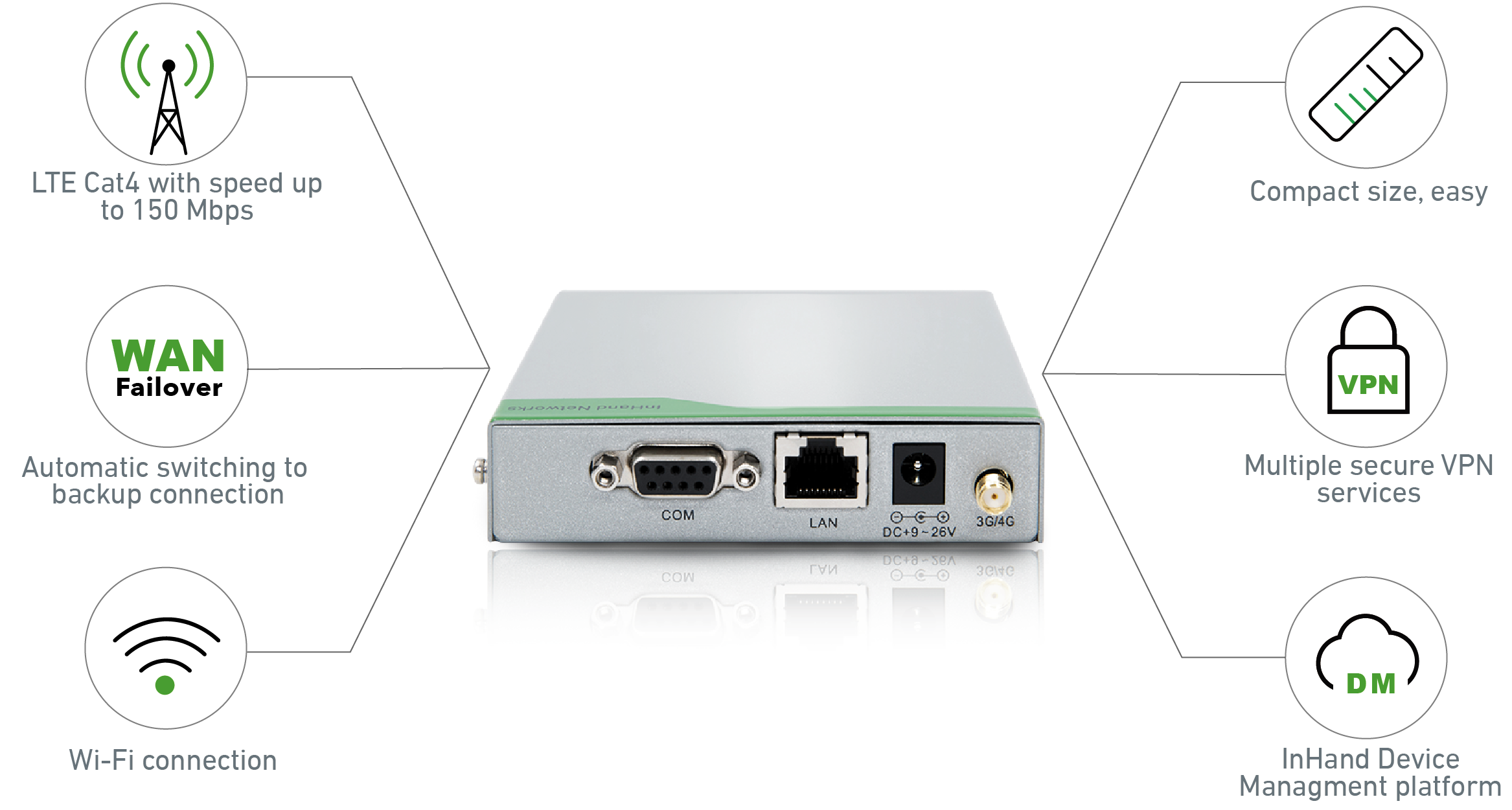

Product Highlights

Compact and Rugged Housing Design

Fully Industrial-Grade Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce the fault rate.

Comprehensive Security

Continuity and Reliability

The main link is Wi-Fi or 4G optional, so is the backup link. Automatic switching to an available backup connection so as to ensure the business data continuity.

Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

Remote Centralized Management

IR611-S is also compatible with InHand Remote Management System. This platform allowed to remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks.

  • • Remotely manage your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping management and access control
  • • Monitor device status and data usage in real time
  • • Easily track your devices in a map view

Fast and Easy Connectivity to Your Remote Machines

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

Product Detail

Packaging List

Certification

InRouter611-S Hardware Specifications

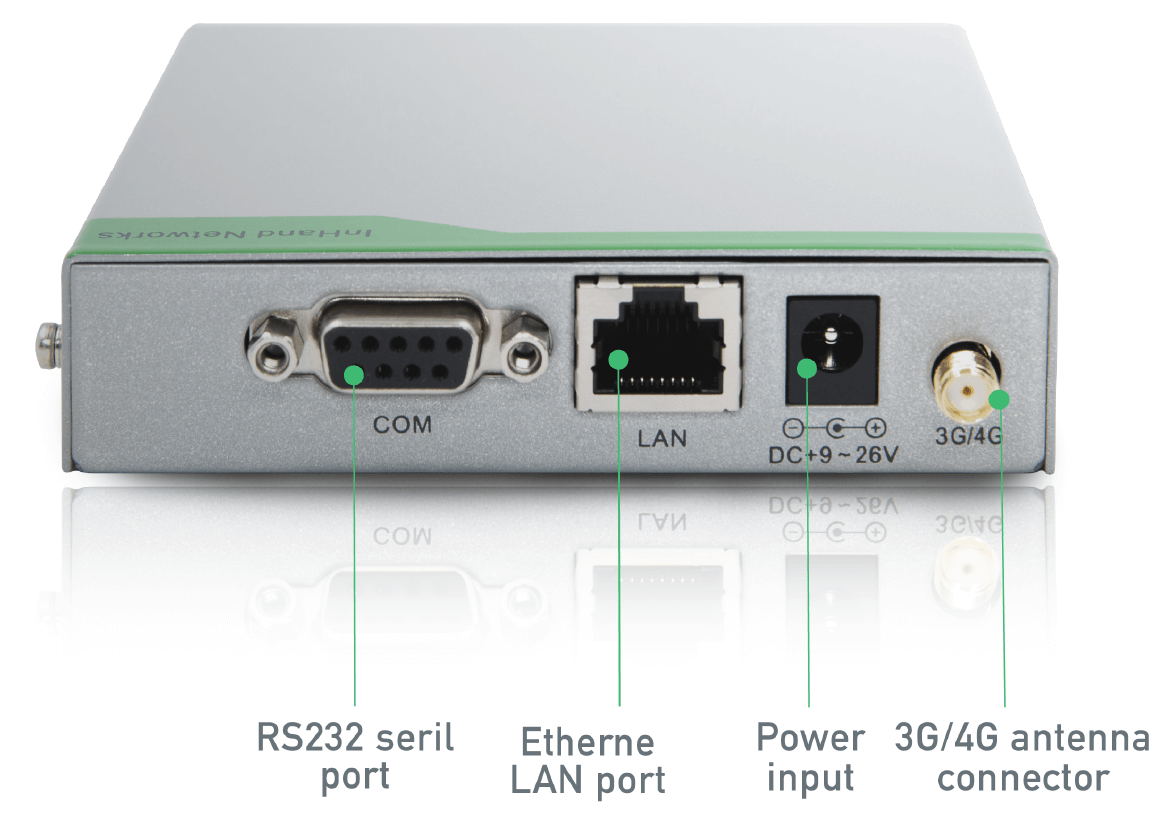

Interface
Ethernet Port 1*10/100Mbps fast Ethernet port,
LAN/WAN 1.5KV network isolation protection
Power Supply DC9-26V, over-current protection
Industrial Serial Port RS-232/485 x 1 (DB9)
ESD protection: 15KV
SIM Card Drawer-type card slot x 1
Reset Pinhole reset button
Antenna Connector 3G/4G: SMA x 1
WLAN: RP-SMA x 2
Note: FS18/FS39/FB13/FB23/FT43 models have 2 x SMA 4G antennas.
Ground Terminal Has ground terminal
Mechanical Specs
Dimensions (mm) 100x98.5x23.5mm
Weight (g) 280g
Installation Method Panel mounting
Protection Rating IP30
Housing Metal housing
Cooling Fanless
Power Rate
Working Power 200-220mA@12V
Standby Power 89mA-120mA@12V
Peak Power 240mA@12.0V
Wi-Fi Transmit Power
Transmit Power 802.11b: 16dBm +/-2dBm (11Mbps)
802.11g: 16dBm +/-2dBm (54Mbps)
802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7)
802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Indicator
LED POWER, STATUS, WARN, ERROR, WLAN, LINK, signal indicator
EMC Index
Static EN61000-4-2, level 2
Radiation Electric Field EN61000-4-3, level 2
Pulsed Electric Field EN61000-4-4, level 2
Surge EN61000-4-5,level 2
Conducted Disturbance Immunity EN61000-4-6, level 2
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal / vertical 400A/m (>level 2)
Shock Wave Resistance EN61000-4-12, level 2
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE, FCC, PTCRB, RCM, IC, Verizon, AT&T, T-Mobile, Sprint
InRouter611-S Software Specifications
Network Connection
Network Access APN, VPDN
Access Authentication CHAP/PAP
authentication
LAN Protocol ARP
WAN Protocol PPP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/FDD LTE
(Please refer to Ordering Guide for specific frequency.)
Network Protocol
IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Static routing
Security
Network Security Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping probe packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security VPN functions: PPTP, L2TP, GRE, IPSEC VPN, OPENVPN, etc.
CA digital certificate
Reliability
Hot Backup Support VRRP hot backup mechanism
Link detection Detect by send heartbeat packets, auto redial when disconnected
Embedded
Watchdog
Device operation self-detection, auto recover from malfunctions
WLAN (Optional)
Protocol &
Standard
IEEE 802.11b/g/n
Transmission Rate Up to 300Mbps
Working Mode Support AP, STA, and WDS modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
Transmission
Distance
Line of sight 100 meters (actual transmission distance depends on the site
environment)
Intelligence
Integrated DTU
Functions
TCP, UDP transparent transmission mode, TCP Server mode;
Supports conversion of Modbus RTU to Modbus TCP bridge;
Supports DCUDP, DCTCP mode;
Support for up to 15 data centers
Network Management
QoS Management Supports bandwidth limit, IP speed limit
Configuration
Method
Telnet, web, ssh, and
console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query,
configuration, restart
Dial-on-demand Dial-on-demand,
data / SMS activation
Network
Management
Supports InHand DeviceManager, batch management
Simple Network
Management
SNMP v1/v2c/v3,support SNMP TRAP function
Traffic
Management
Supports data traffic threshold setting, support traffic statistics and traffic
alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM
card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
