InRouter615-S Industrial Dual SIM 4G WiFi Router with 5 Ethernet Ports

InHand NetworksSKU: IR615-S-FB53-DS
filler

Price:
$159

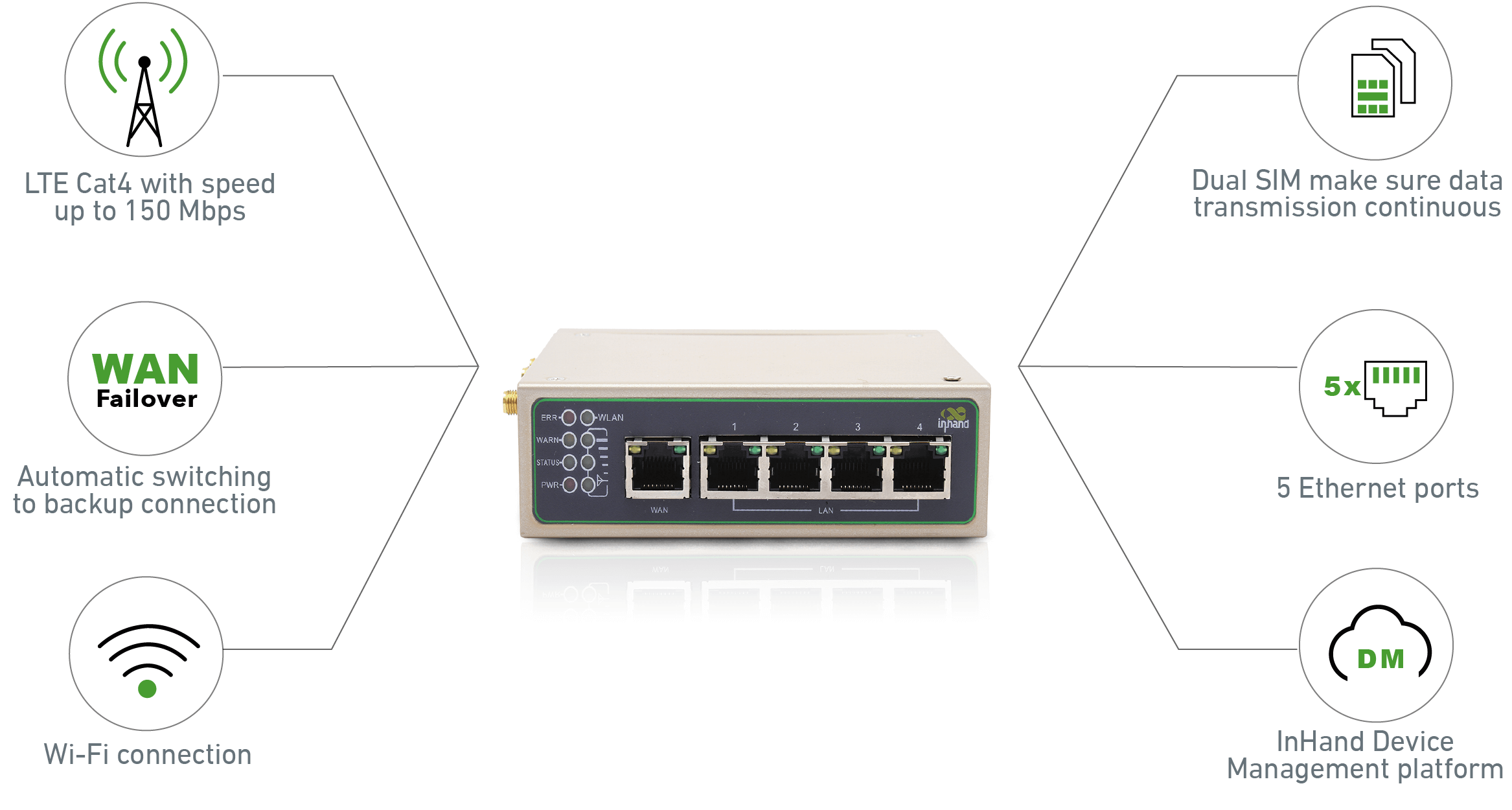

High-Performance Industrial-Grade 4G Dual SIM Cellular Router

InRouter615-S (also IR615-S) is a professional industrial 4G WiFi router for IoT applications. The router is equipped with WiFi, 5- Ethernet ports and advanced networking functionality. Quick to deploy, easy to manage and flexible for applications across the most demanding market sectors. IR615-S will ensure stable connectivity with 4G Dual-SIM failover and 3G/2G fallback

Operation Band

Network type Model (region) Band
LTE CAT-3,4 or 6 IR615-S-S-FH20 (EMEA,APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band 1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR615-S-FQ88 (Japan) LTE-FDD CAT 4 Band 1/3/8/18/19/26
UMTS(DC-HSPA+) Band 1/3/8
EDGE/GPRS/GSM 900/1800HHz
IR615-S-FS18 (North America,AT&T) LTE-FDD CAT 3    Band2/4/5/17
UMTS(DC-HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR615-S-FS28 (North America,Verizon Wireless) LTE-FDD CAT3  Band 4/13
UMTS(DC-HSPA+) Band 2/4/5
EDGE/GPRS/GSM850/900/1800/1900MHz
IR615-S-FS39  (North America, Verizon,AT&T) LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-1
IR615-S-FB53 (EMEA) LTE-FDD CAT 1 Band 3/7/20
EDGE/GPRS/GSM 900/1800/MHz
IR615-S-FB13  (North America, AT&T) LTE-FDD CAT 1 Band2/4/12
IR615-S-FB23 ( North America, Verizon Wireless) LTE-FDD CAT 1 Band4/13
LTE CAT-M1/NB IR615-FB02 (Global) Band1/2/3/4/5/8/12/13/17/18/19/20/25/26/28 (Band 39 in M1 only)
IR615-S-EN00 No cellular module

Fully Industrial-Grade Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate.

Comprehensive Security

Continuity and Reliability

With wired WAN and 4G LTE backup – customers have full control of their connectivity and dual sim failover functionality makes devices can switch automatically to secondary GSM operator if the main mobile data connectivity is lost.

Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

Remote Centralized Management

IR615-S is also compatible with InHand Remote Management System. This platform allows to remotely manage & monitor status and parameters of all routers & gateways by InHand Networks

  • • Remotely manage your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping management and access control
  • • Monitor device status and data usage in real time
  • • Easily track your devices in a map view

Fast and Easy Connectivity to Your Remote Machines

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

Product Detail

Packaging List

Certification

InRouter615-S Hardware Specifications
Interface
Ethernet Port 1*10/100Mbps fast Ethernet WAN port
4*10/100Mbps fast Ethernet LAN ports
1.5KV network isolation protection
Power Supply DC9-26V, 36V expandable
Industrial Serial Port RS-232/485 x 1 (DB9)
ESD protection: 15KV
SIM Card Drawer-type card slot x 1
Part models: Drawer-type card slot x 2
Reset Pinhole reset button
Antenna Connector 3G/4G: SMA x 1
WLAN: RP-SMA x 2
Ground Terminal Has ground terminal
Mechanical Specs
Dimensions (mm) 127x108.2x35mm
Weight (g) 440g
Installation Method DIN-Rail Optional: Lugs/wall mounting
Protection Rating IP30
Housing Metal housing
Cooling Fanless
Power Rate
Working Power 150mA-320mA@12V
Standby Power 120mA-200mA@12V
Peak Power 320mA@12.0V
Wi-Fi Transmit Power
Transmit Power 802.11b:16dBm+/-2dBm(11Mbps)
802.11g:16dBm+/-2dBm(54Mbps)
802.11n@2.4GHz: 16dBm+/-2dBm(HT20MCS7)
802.11n@2.4GHz:16dBm+/-2dBm(HT40MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Indicator
LED POWER, STATUS, WARN, ERROR, WLAN, LINK, signal indicator
EMC Index
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulsed Electric Field EN61000-4-4, level 3
Surge EN61000-4-5, level 3
Conducted Disturbance Immunity EN61000-4-6, level 3
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal / vertical 400A/m (>level 3)
Shock Wave Resistance EN61000-4-12, level 3
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE, FCC, PTCRB, IC, IMDA, RCM, Class I Division 2, Verizon, AT&T, T-Mobile, Sprint
InRouter615-S Software Specifications
Network Connection
Network Access APN, VPDN
Access Authentication CHAP/PAP authentication
LAN Protocol ARP, Ethernet
WAN Protocol Static IP, DHCP, PPPoE, PPP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/FDD LTE
IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Static routing
NAT Support network
address translation
Network Security
Firewall Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Access Security Multi-level user authorization
Data Security IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA digital certificate
Reliability
Backup Dual-SIM mutual backup, VRRP hot backup, link backup
Link detection Send heartbeat packets, auto redial when disconnected
Embedded Watchdog Device operation self-detection, auto recover from malfunctions
WLAN (Optional)
Protocol & Standard IEEE 802.11b/g/n
Transmission Rate Up to 300Mbps
Working Mode AP and STA modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
Transmission Distance 100m (actual transmission distance depends on site environment)
Intelligence
Integrated DTU Functions TCP, UDP transparent transmission mode, TCP Server mode;
Supports conversion of Modbus RTU to Modbus TCP bridge;
Supports DCUDP, DCTCP mode;
Support for up to 15 data centers
Network Management
QoS Management Supports bandwidth limit, IP speed limit
Configuration Method Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query, configuration, restart
Dial-on-demand Dial-on-demand, data / SMS activation
Network Management Supports InHand DeviceManager, batch management
Simple Network Management SNMP v1/v2c/v3,support SNMP TRAP
Traffic Management Supports data traffic threshold setting, supports traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
