ISE5005D 5-Port Gigabit Industrial Unmanaged Switch

InHand Networks SKU: ISE5005D-5GT-24
filler
Price:
$165
  • Description
  • Specifications
  • Download
  • Optional Accessories
  • Reviews

5-Port Gigabit Industrial Unmanaged Switch

The ISE5005D is a 5-port Gigabit industrial unmanaged switch that has been specifically designed for industrial Ethernet infrastructure. Built with industrial design and easy management functions, the ISE series allows customers to build simple and reliable communication systems under harsh industrial environments.

ISE5005D 5-Port Gigabit Industrial Unmanaged Switch

Product Information

Item ISE5005D
Interface RJ45 port 10/100/1000Base-T(X)
Switching performance Forwarding inherent time delay < 3µs
Switching capacity 10 Gbps
MAC address table 1k
Power Supply Input voltage 24 VDC (12~48 VDC), support redundant inputs
Overload protection Available
Reverse polarity protection Available
Power consumption < 4.5 W
Mechanical Structure Dimension (mm) 35x120x100
Weight 0.6 Kg
Installation DIN-Rail and Wall Mounting (kit optional)

Product Highlights

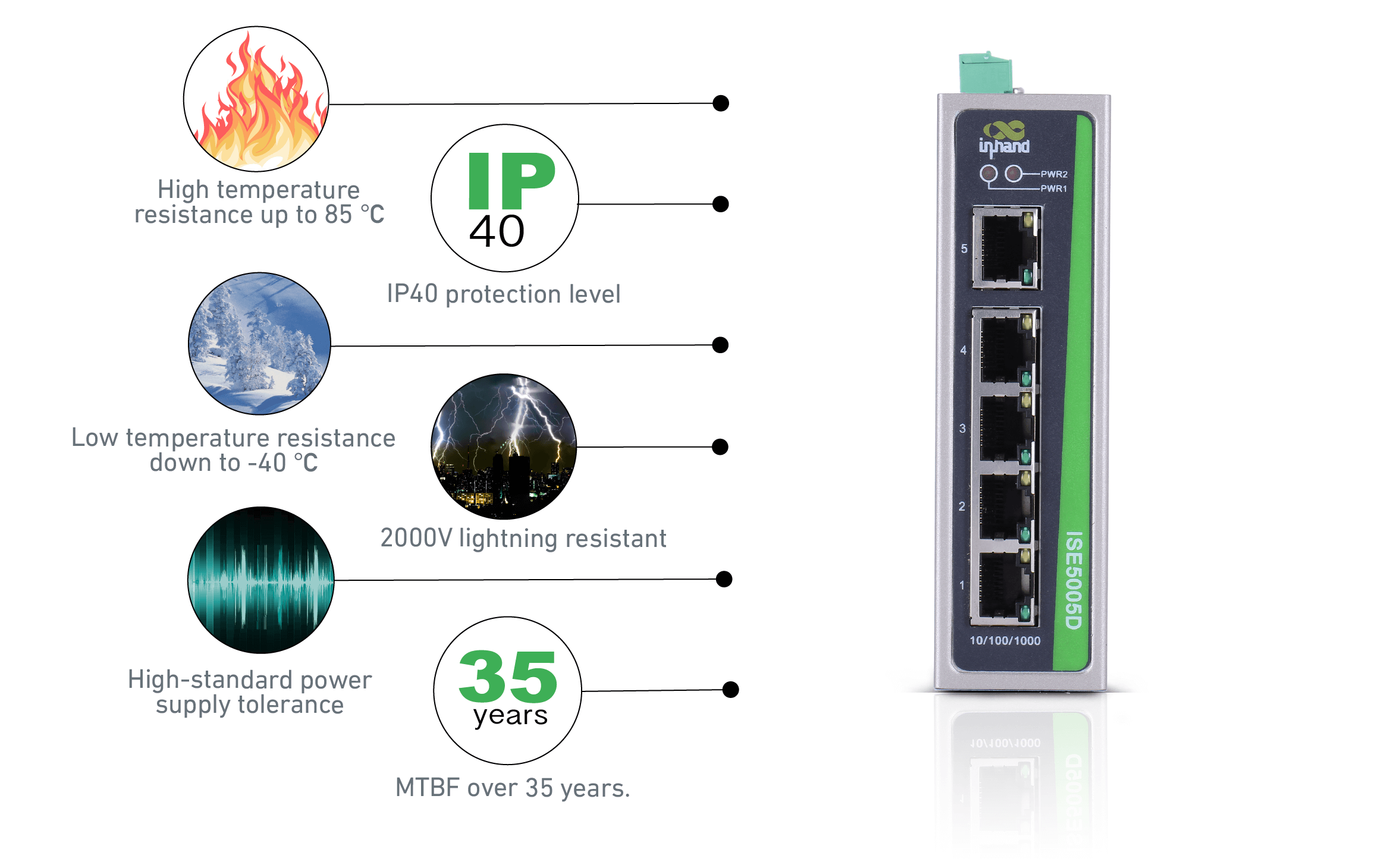

Rugged Communications

The ISE series is built with high levels of ruggedness, featuring solid and durable metal shell, wide operating temperature, high EM compatibility, industrial redundant power supply, and an MTBF over 35 years.

-40℃~85℃, 2000V lighting resistant, power supply tolerance, MTBF over 35 years

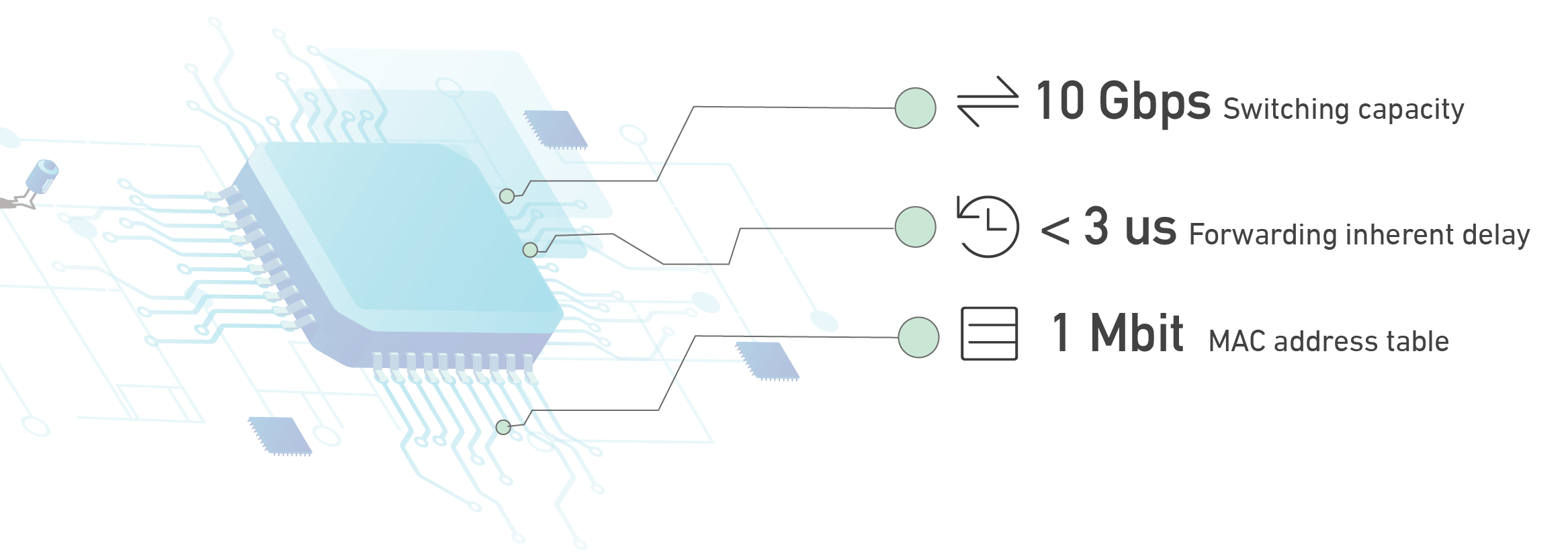

Industrial-Grade Chip

10 Gbps switching capacity, <3 us forwarding inherent delay, 1 Mbit MAC address table

Compatible with Major Brands in the Market

Compatible with Major Brands

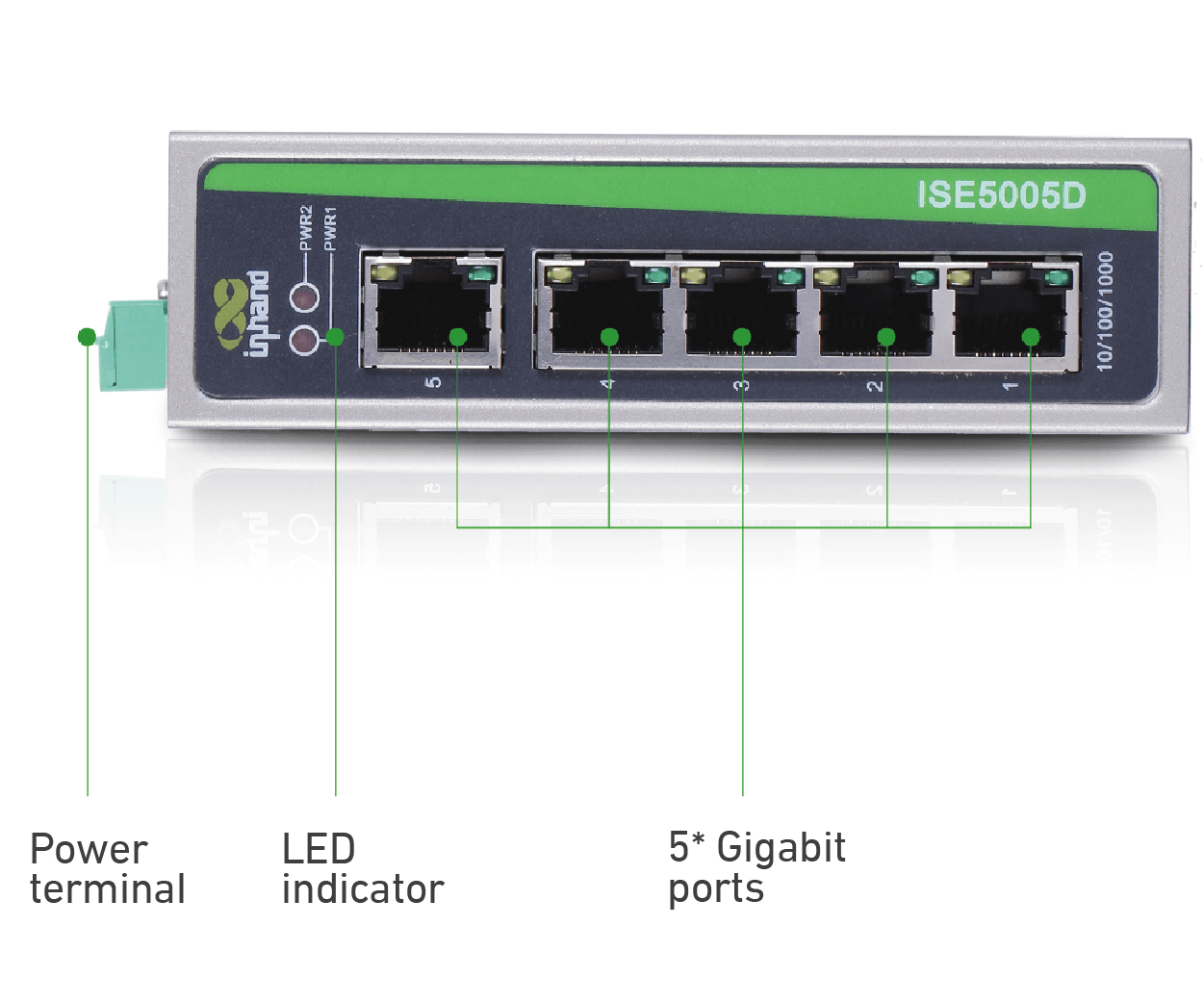

Product Detail

ISE5005D 5-Port Gigabit Industrial Unmanaged Switch with 5 Gigabit ports

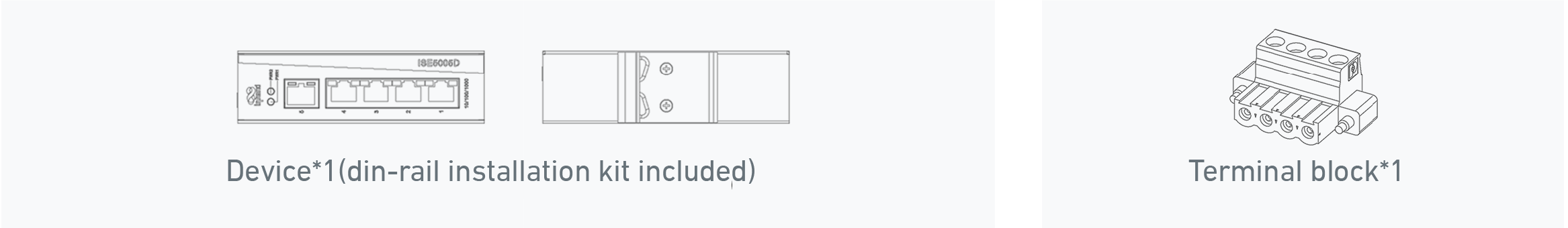

Packaging List

ISE5005D 5-Port Gigabit Industrial Unmanaged Switch device, terminal block

Certification

CE, UL certifications

ISE5005D
Interface
RJ45 port 10/100/1000Base-T(X) self-adaptive RJ45 port
LED indication PWR1, PWR2
Mechanical structure
Housing IP40 class protection, fully enclosed seamless metal cabinet PCB protection coating
Dimension (mm) 35mm* 120mm *100mm
Weight 0.6 Kg
Heat dissipation mode Fan-less heat dissipation
Installation mode DIN-rail, with optional wall mounting bracket
MTBF 35 years
Power source
Input voltage 24 VDC (12~48 VDC), support redundant input
Interface terminal 4-pin pluggable screw connection terminal
Overload protection Available
Reverse polarity protection Available
Power consumption < 2.4 W
Working environment
Working temperature -40 ~ +85 °C
Storage temperature -40 ~ +85 °C
Relative humidity 5%~95% (non- condensing)
Switching performance
Forwarding inherent time delay <3µs
Backplane bandwidth 10Gbps
Data package buffer 1Mbit
Function features
Ethernet standard IEEE 802.3 for 10Base-T(x)
IEEE 802.3u for 100Base-T(x)and 100Base-FX
IEEE 802.3x for flow control
IEEE 802.3ab for 1000BaseT(x)
The giant frame forwarding Default enabled 10240 Byte frame forwarding
Industrial standard
Electromagnetic compatibility ESD Electrostatic Discharge Immunity: EN61000-4-2, Level 3
RFI Radio Frequency Immunity: EN61000-4-3, level 3
EFT Electrical Fast Transient/Burst Immunity: EN61000-4-4, Level 3
Surge Immunity: EN61000-4-5, level 3
Immunity to Conducted Disturbances: EN61000-4-6, Level 3
Damped Oscillator Immunity: EN61000-4-12, Level 3
Shock Test IEC60068-2-27
Freefall IEC60068-2-32
Vibration IEC60068-2-6
Certification
CE, UL
Warranty
5 years




Pictures Description Price Add to Cart
24V-2A AC DC Power Supply Adapter Compatible with Switches - US $ 10
24V-2A AC DC Power Supply Adapter Compatible with Switches - UK $ 10
24V-2A AC DC Power Supply Adapter Compatible with Switches - EU $ 10
24V-2A AC DC Power Supply Adapter Compatible with Switches - AU $ 10
