ISE1005D 5-Port Unmanaged Industrial Ethernet Switch

InHand Networks SKU: ISE1005D-5T-24
filler
Price:
$75
  • Description
  • Specifications
  • Download
  • Optional Accessories
  • Reviews

ISE Series DIN-Rail Unmanaged Industrial Ethernet Switch

ISE1005D series products are 5-port DIN-Rail Unmanaged Industrial Ethernet Switch specifically designed for industrial Ethernet infrastructure. Built with an industrial design and easy management functions, the ISE series allows customers to build simple and reliable communication systems under harsh industrial environments. DIN-Rail installation kit is included.

IP40 protection level, dual power supply, DIP switch for broadcast storm control, easy installation, wide temperature, EMC level 3

Product Information

Item ISE1005D
Interface RJ45 port 10/100Base-T(X) auto-sensing
Switching performance Forwarding inherent time delay < 4µs
Switching capacity 1 Gbps
MAC address table 1k
Power Supply Input voltage 24 VDC (12~48 VDC), support redundant inputs
Overload protection Available
Reverse polarity protection Available
Power consumption < 1.6 W
Mechanical Structure Dimension (mm) 35x120x100
Weight 0.6 Kg
Installation DIN-Rail and Wall Mounting (kit optional)

Product Highlights

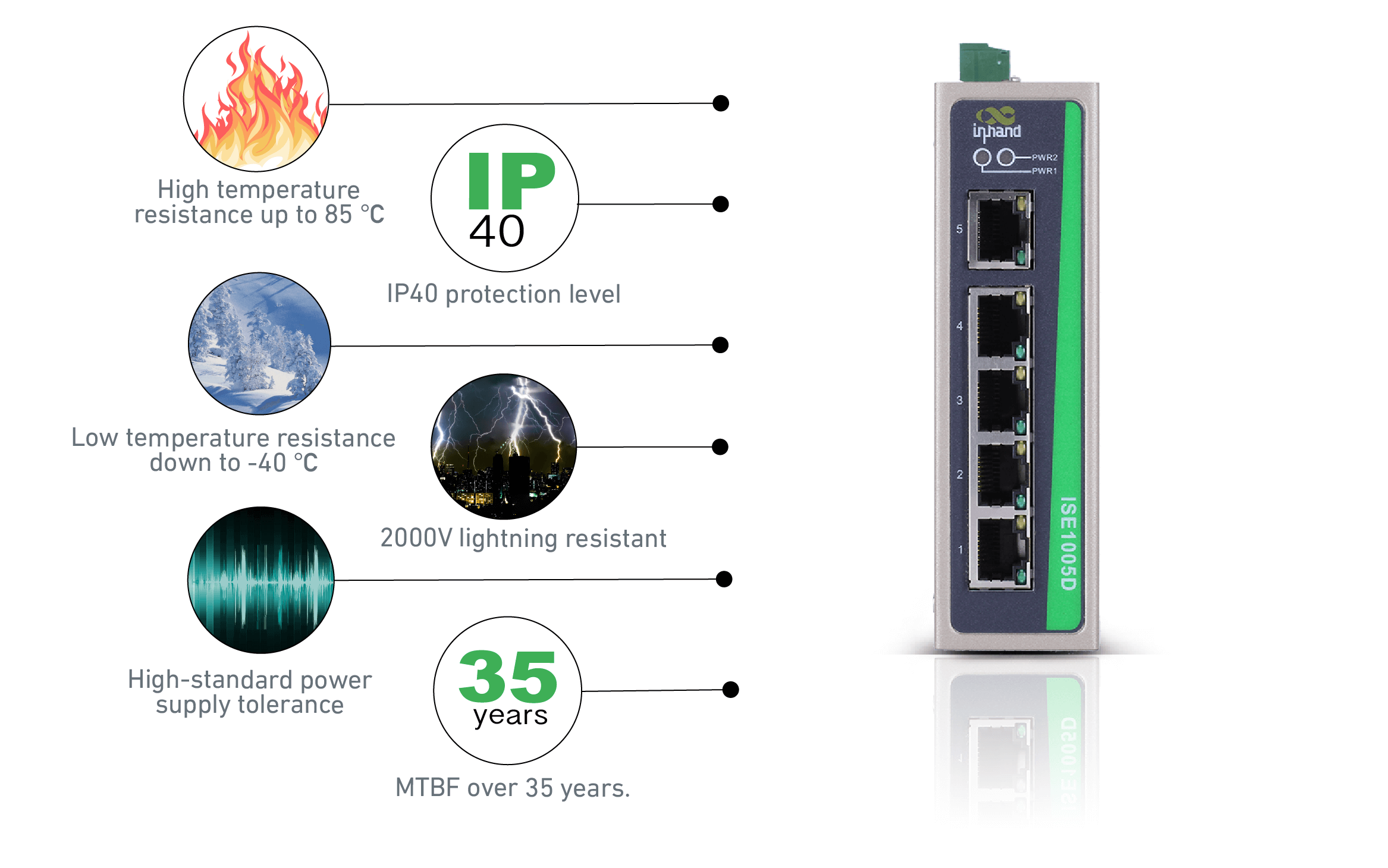

Rugged Communications, Industrial Design

The ISE series is built with high levels of ruggedness, featuring solid and durable metal shell, wide operating temperature, high EM compatibility, industrial redundant power supply, and an MTBF over 35 years.

-40℃~85℃, 2000v lighting resistant, power supply tolerance, MTBF over 35 years.

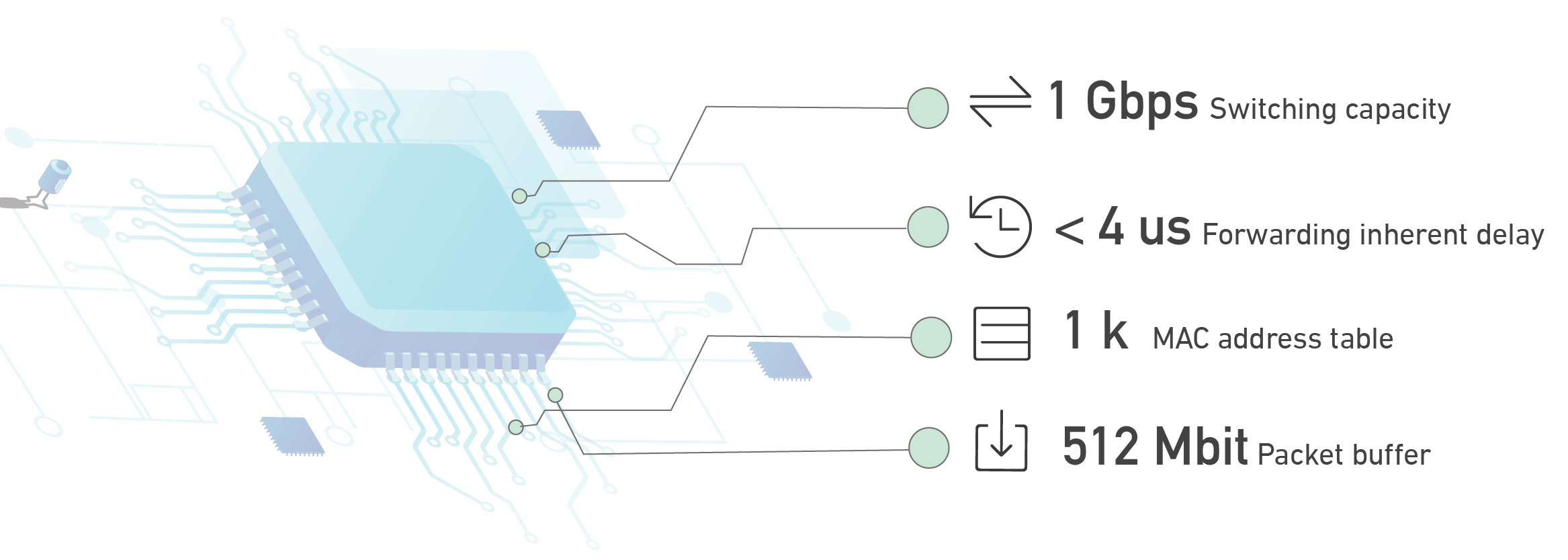

Industrial-Grade Chip

1Gbps switching capacity, < 4 us forwarding inherent delay, 1k MAC address table, 512 Mbit Packet buffer

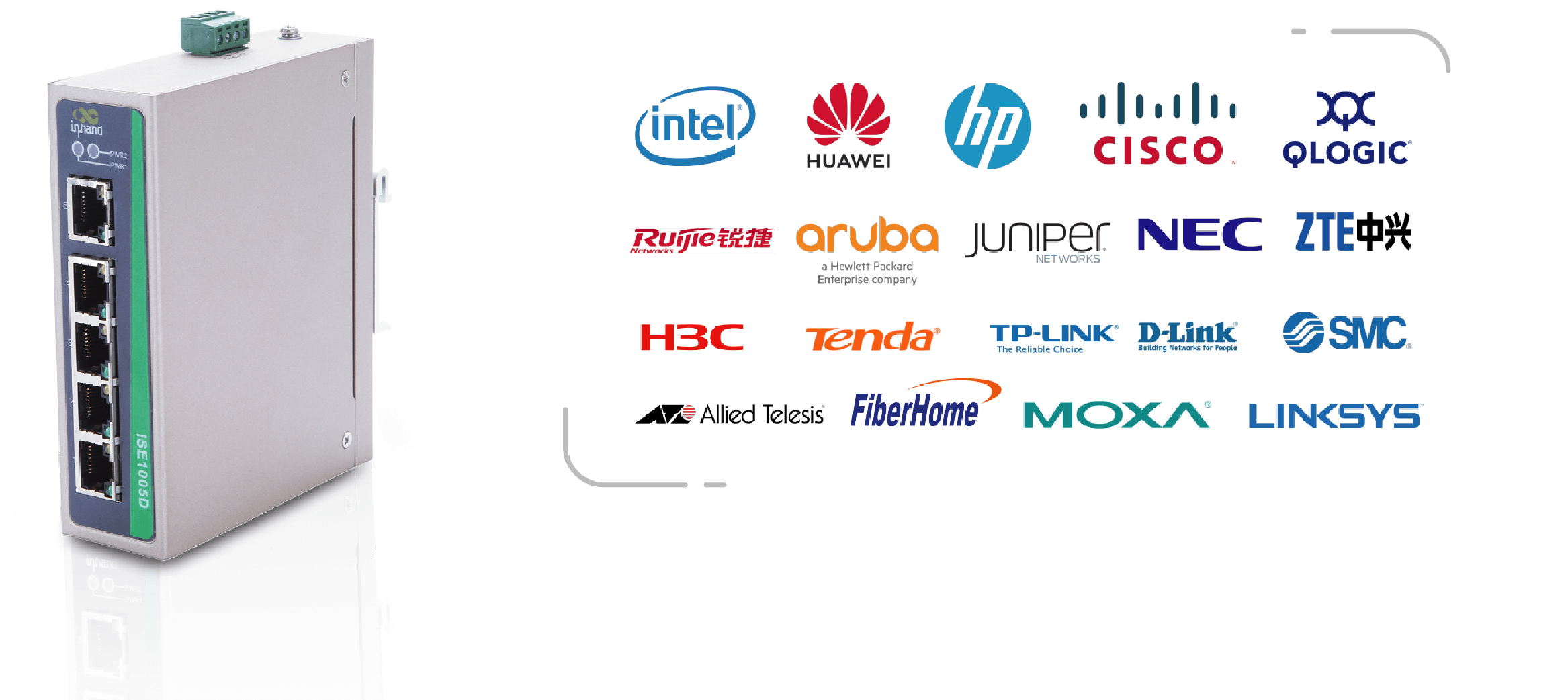

Compatible with Major Brands in the Market

Compatible with Major Brands

Product Detail

power terminal, LED indicator, 5 Ethernet ports

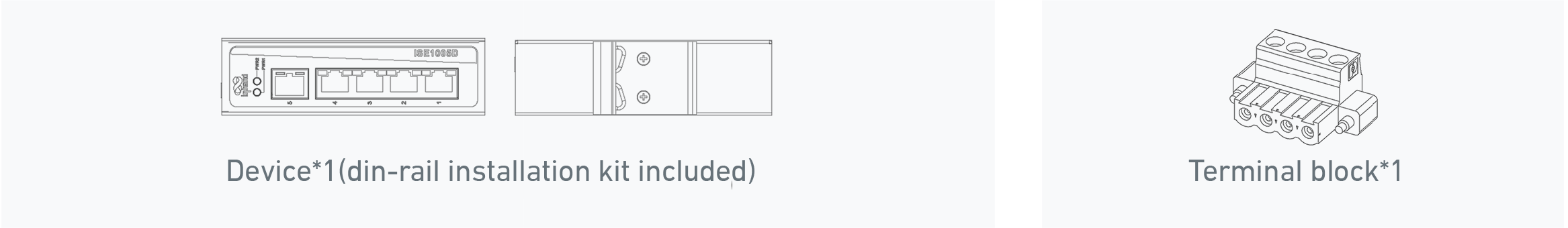

Packaging List

ISE1005D 5-Port Unmanaged Industrial Ethernet Switch, terminal block

Certification

CE , UL

ISE1005D Specifications
Interface
RJ45 port 10/100Base-T(X) auto-sensing
LED indication PWR1, PWR2, LINK/ACT
Mechanical structure
Housing IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available
Dimension (mm) 35 x 120 x 100
Dimension (in) 17.8 x 47.2 x 39.4
Weight 0.6 Kg
Heat dissipation Fanless heat dissipation
Installation DIN-rail and wall mounting (kit optional)
MTBF 35 years
Power source
Input voltage 24 VDC (12~48 VDC), support redundant inputs
Interface terminal The 4-pin pluggable screw connection terminal
Overload protection Available
Reverse polarity protection Available
Power consumption < 1.6 W
Working environment
Working temperature -40 ~ +85°C
Storage temperature -40 ~ +85°C
Relative humidity 5% ~ 95% (free of condensation)
Switching performance
Forwarding inherent time delay < 4µs
Backplane bandwidth 1 Gbps
MAC address table 1 Kbyte
Data package buffer 512 Kbit
Industrial standard
Electromagnetic compatibility ESD Electrostatic Discharge Immunity: EN61000-4-2, Level 4
RFI Radio Frequency Immunity: EN61000-4-3, Level 4
EFT Electrical Fast Transient/Burst Immunity: EN61000-4-4, Level 4
Surge Immunity: EN61000-4-5, level 4
Immunity to Conducted Disturbances: EN61000-4-6, Level 4
Damped Oscillator Immunity: EN61000-4-12, Level 4
Shock Test IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Certification
CE, UL
Warranty
5 years
