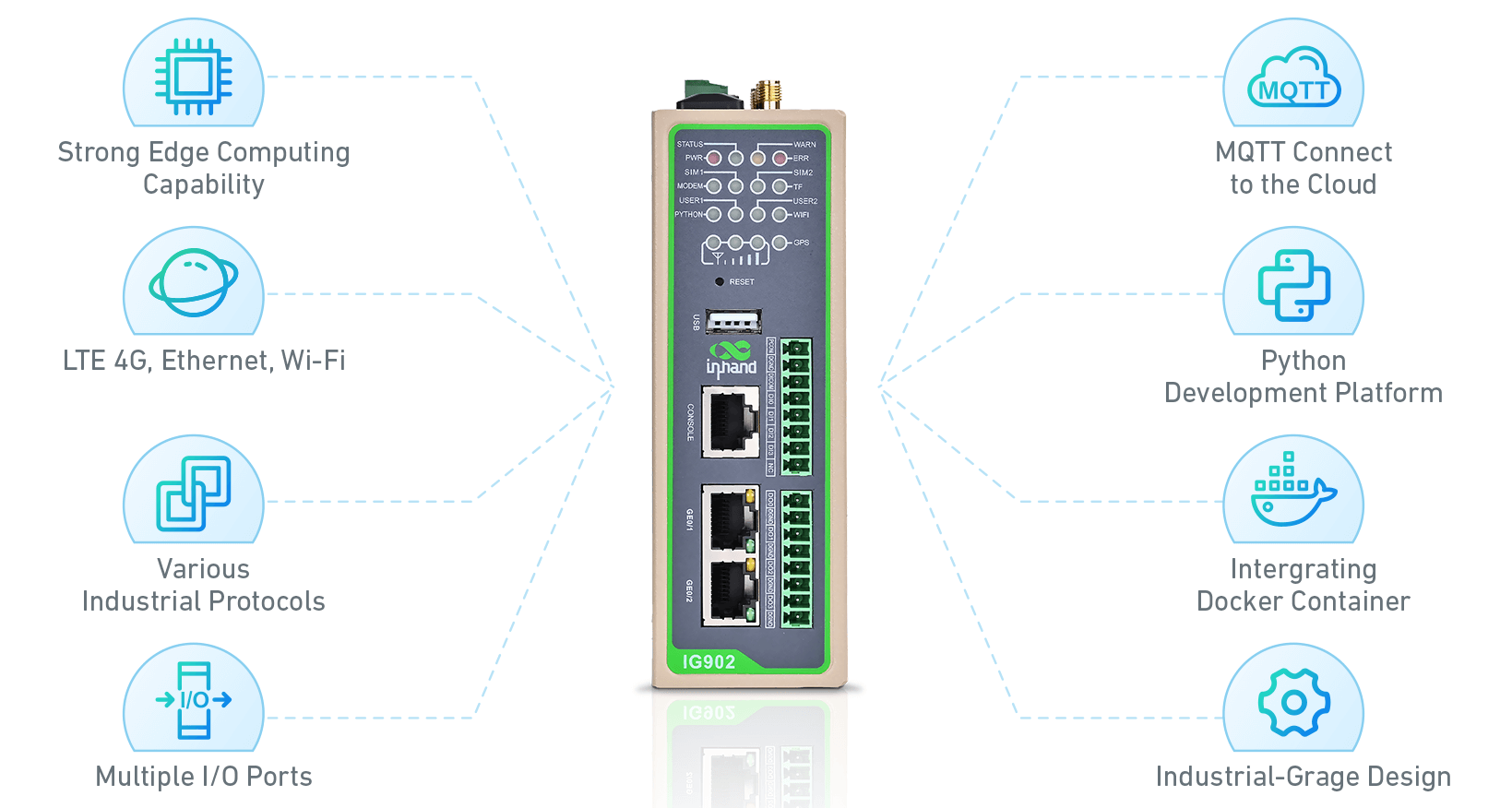

Powerful Edge Computing Gateway, Multiple Industrial Protocols, Fast Python Customization
InGateway902 features powerful edge computing capabilities. It realizes data optimization, real-time response, agile connection and intelligent analysis on the IoT edge, significantly reduces the data flow between field sites and data center, and avoids bottlenecks of cloud-end computing.
The InGateway902 is a certified Microsoft Azure IoT Device and is also AWS IoT Greengrass qualified.
![Powerful Computing, Multiple Industrial Protocols, Fast Python Customisation](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--01.png?v=1668679383)
Product Highlights

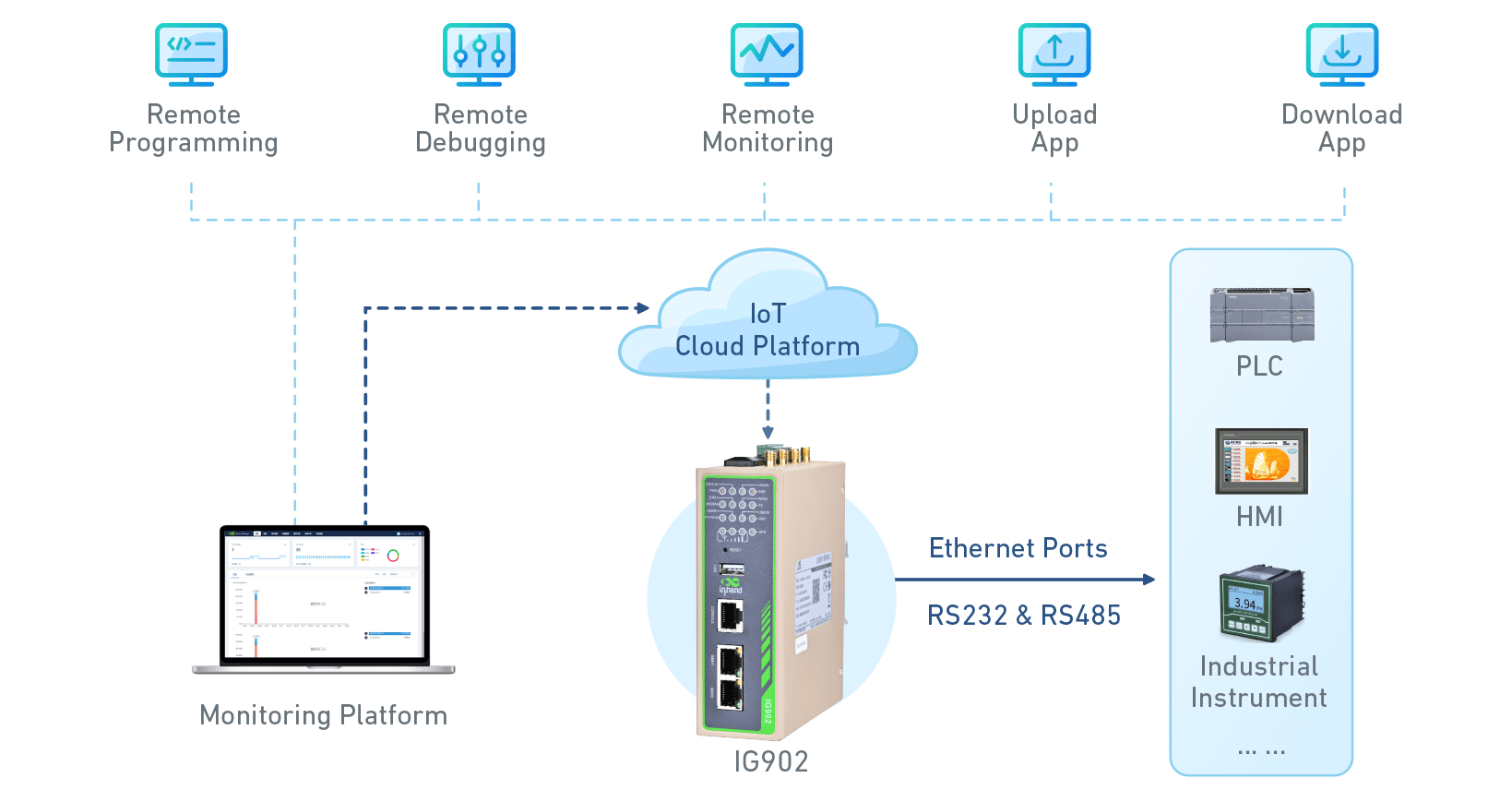

PLC Remote Management
Operation and maintenance personnel can remote control and monitor PLC devices anywhere, anytime. Remote programming.
![8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--02.png?v=1668679383)
Powerful Computing Capability
The InGateway902 is equipped with the hardware required for full-scale IoT edge computing, including a high-performance ARM Cortex-A8 processor (1 GHz), high capacity DDR3 RAM up to 1GB and 8GB eMMC FLASH, which gives the gateway powerful edge computing capabilities.
![8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--03.png?v=1668679383)

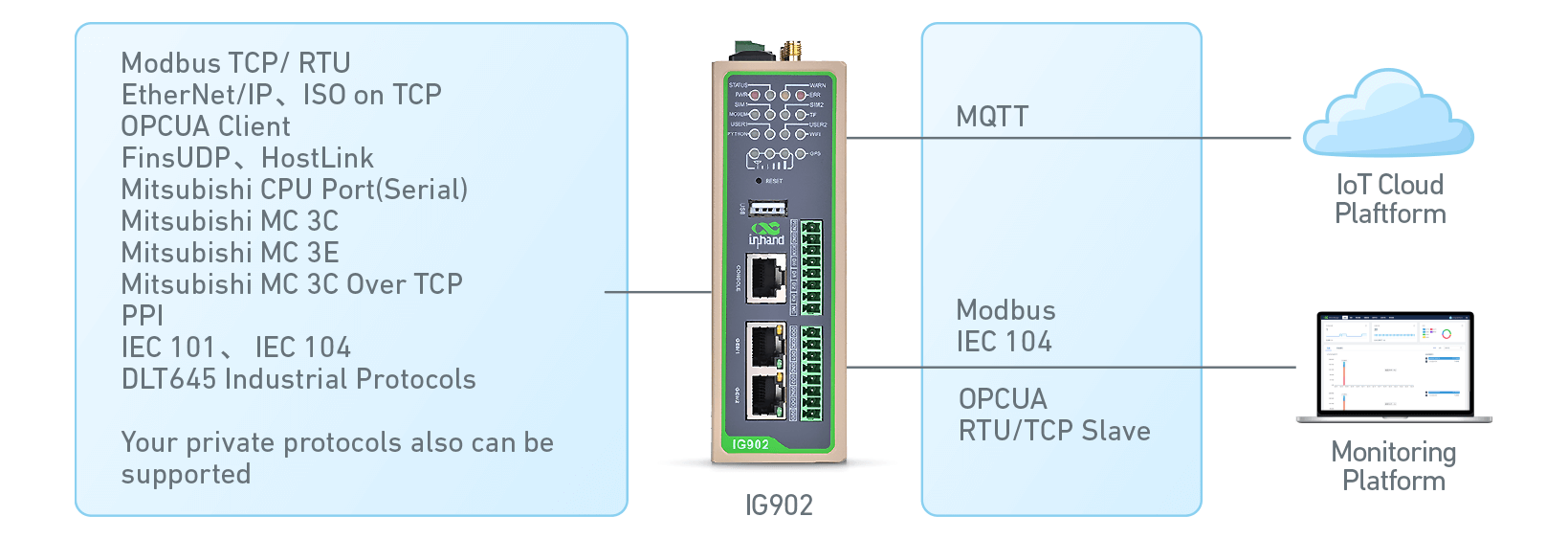

Compatible with Multiple Industrial Protocols
To adapt to the broadly diversified IoT industry, InGateway900 is compatible with a rich selection of mainstream industrial real-time Ethernet protocols and fieldbuses.
![Modbus TCP, PPP +CC-LINK, ErhernetNET/IP, Modbus RTU, OPC UA Server](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--04.png?v=1668679383)

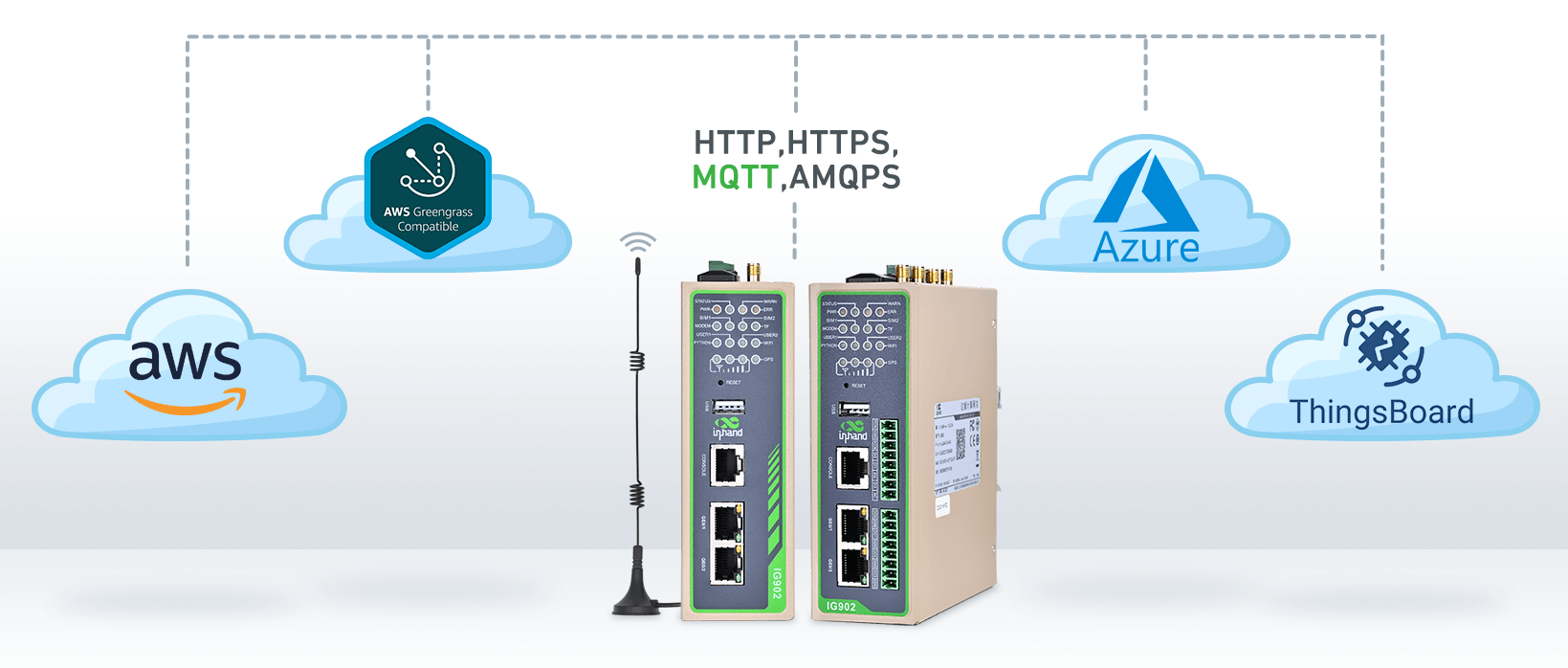

A Cooperative Ecosystem
InHand has become a partner of Microsoft and Amazon, providing users with multiple industrial cloud solutions. The edge gateway supports Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform.
![Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--05.png?v=1668679383)

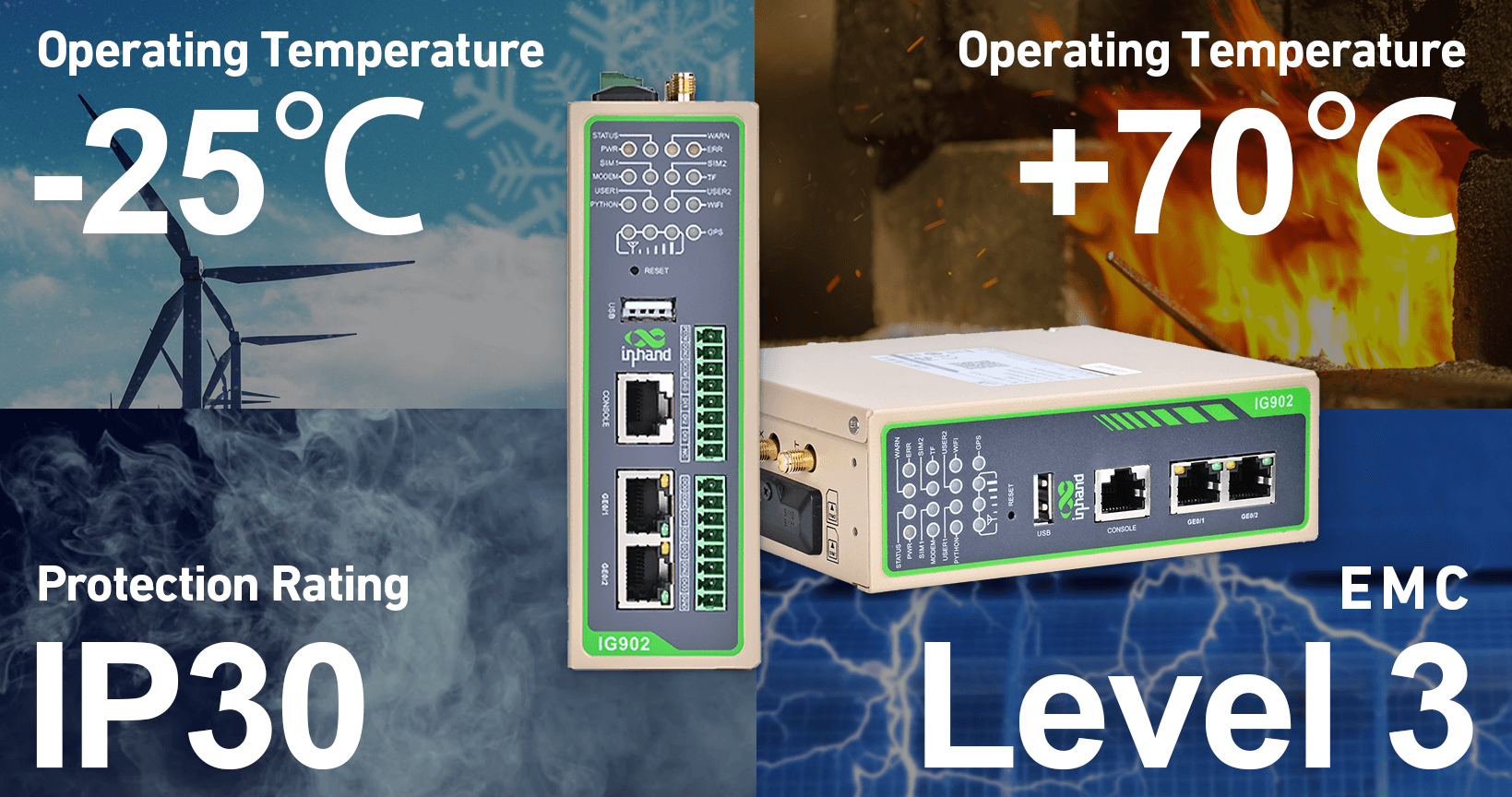

Fully Industrial Design
EMC level 3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.
![EMC L3, IP30](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--06.png?v=1668679383)
Docker
Docker Container as a standard feature that can build and operate a scalable and seamless IoT system. It also can develop, release and execute cross-platform applications regardless of the edge or the cloud side.
![Docker and IOT system](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/iot-02.png?v=1598852540)

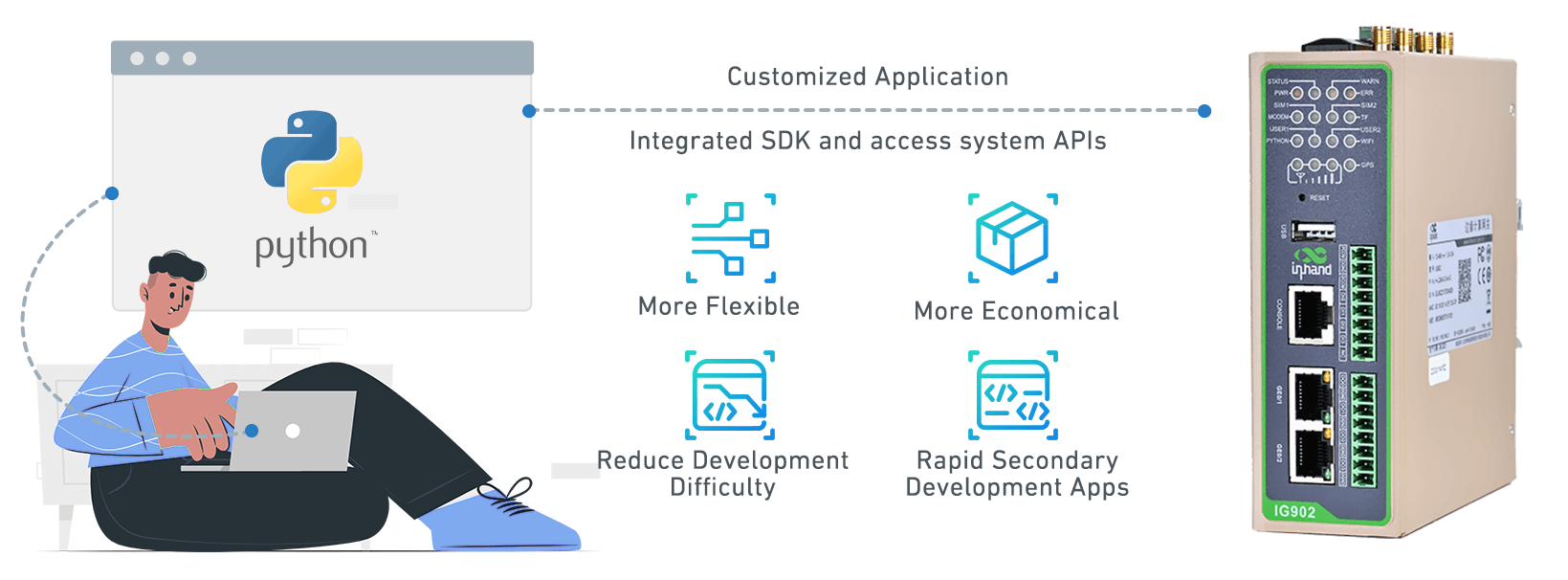

Python Custom Development Platform
Embedded with the support of the Python development platform, customers may custom-develop applications to meet their application requirements. While with the integrated SDK provided by InHand, customers may access the system APIs and other resources easily.
![Customized Application, Integrated SDK and access system APIs](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--09.png?v=1668679383)
InHand Easy Web Management
A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.
![InGateway902 Industrial Edge Computing Gateway with Azure, AWS IoT Greengrass Qualified](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--07.png?v=1668679383)

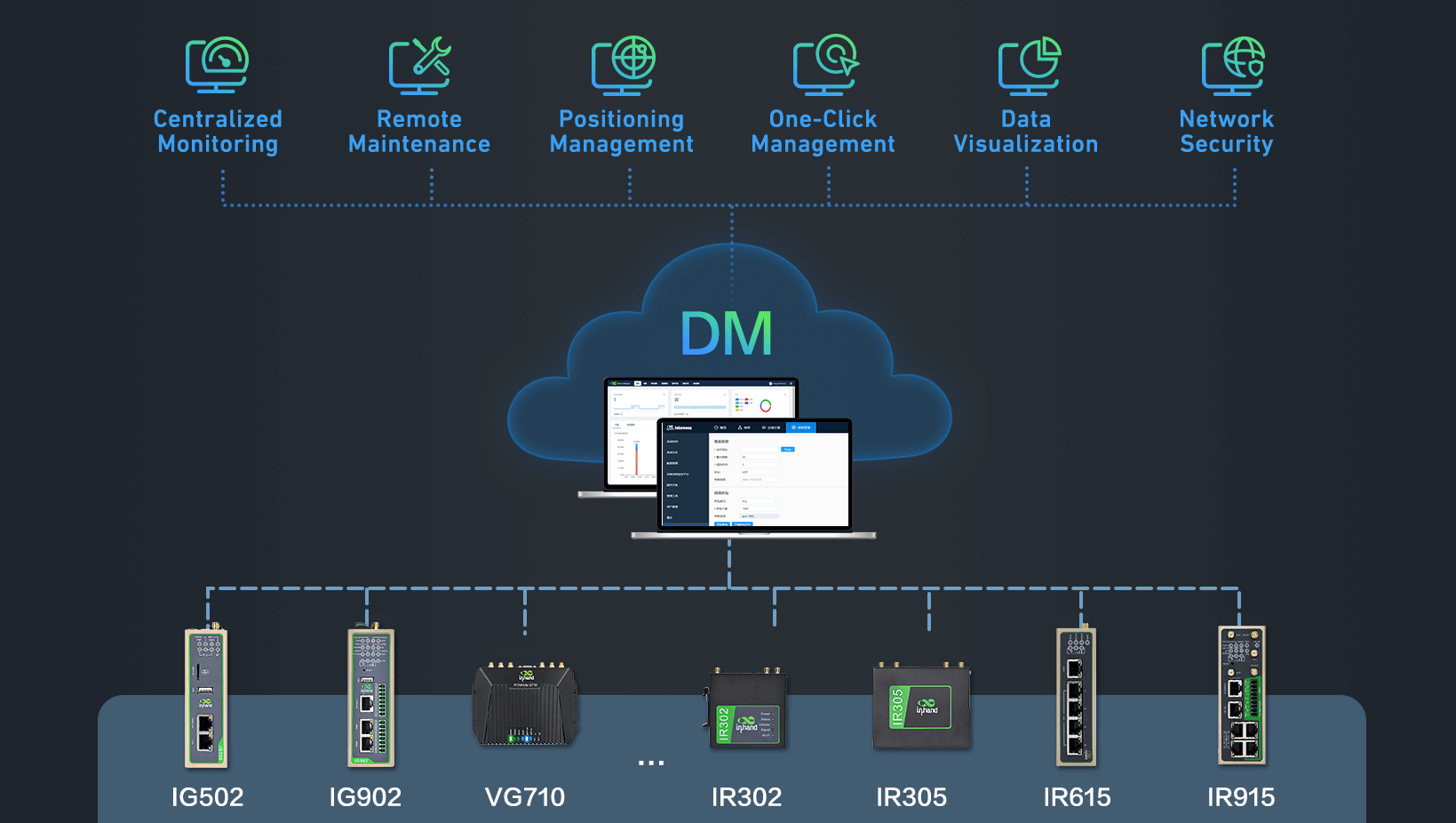

Remote Centralized Management
InGateway902 is also compatible with InHand Remote Management System. This platform allows remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks
Product Compare
InGateway | ![]() |
![]() |
Model | IG502 | IG902-H |
CPU | ARM Cortex-A8 | ARM Cortex-A8 |
RAM | 512MB | 1GB |
Flash | 8GB eMMC | 8GB eMMC |
Ethernet port | 2*10/100Mbps,1*WAN/LAN+1*LAN | 2*10/100/1000Mbps, 2*WAN/LAN |
Wi-Fi | ✔ | ✔ |
I/O | 4*DI and 4*DO | 4*digital input Dl 2*dry contact control port 3*digital/pulse output DO 1*digital output DO |
Bluetooth | ✔ | × |
Serial Port | 1*RS232, 1*RS485 | 1*RS232, 1*RS485 |
Dual SIM | ✔ | ✔ |
Python | ✔ | ✔ |
Docker | × | ✔ |
Data security | OpenVPN, IPSec VPN | IPSec VPN,OPENVPN, CA (may autoapply) |
Applications
Product Detail

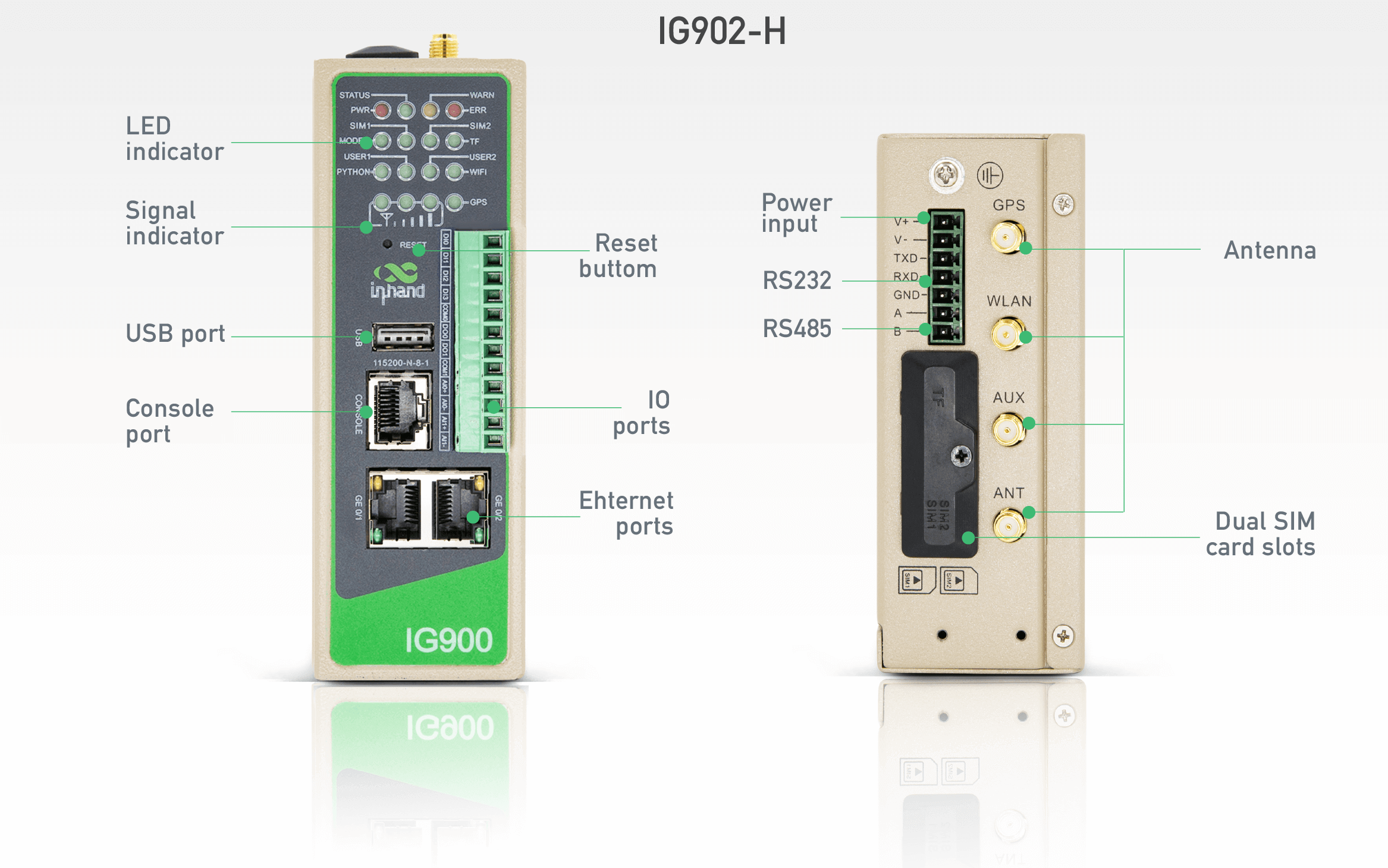

![IG902-H](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/ig900appearence-h-01_1.png?v=1598855902)

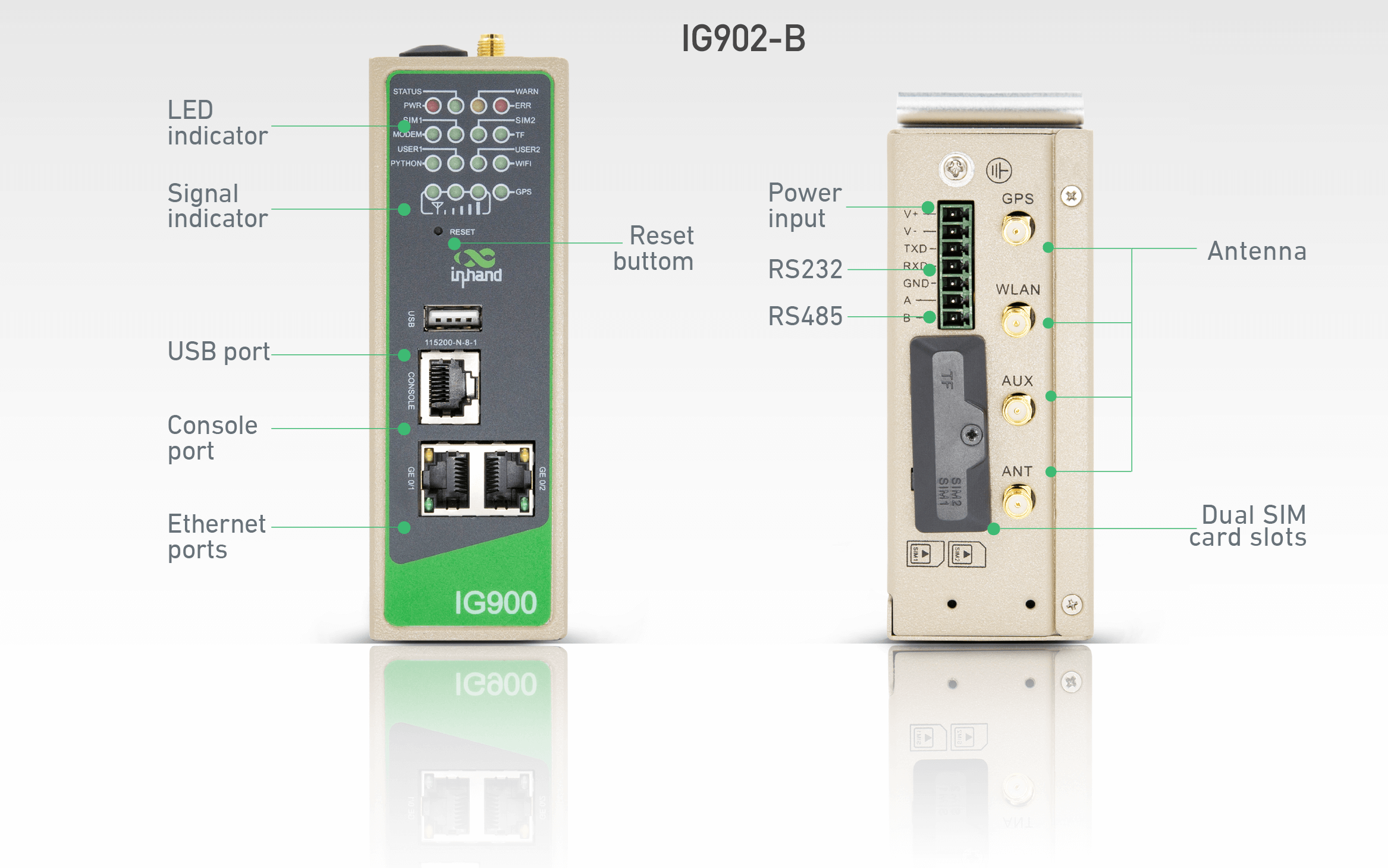

![IG902-B](https://cdn.shopify.cn/s/files/1/0369/9536/7051/files/ig900appearence-2-02.png?v=1589180100)
Packaging List
![IG902, WiFi antenna*2, LTE 4G antenna, Power Supply, Ethernet Cable](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/ig900-01.png?v=1592560971)
Compatible with Most PLC Brands
![brands](https://cdn.shopifycdn.net/s/files/1/0369/9536/7051/files/IG902-22.10_S--08.png?v=1668679382)
Certifications
![CE, FC, AT&T, VERIZON, PTCRB](https://cdn.shopify.com/s/files/1/0369/9536/7051/files/IG902_CER_2022.4.png?v=1650351649)
