InDTU324 Compact Industrial Serial to Cellular 4g Modem

Name: InDTU324 Compact Industrial Serial to Cellular 4g Modem
Brand: InHand Networks
SKU: InDTU324LQ25-232
Price: 105,01 USD
Availability: InStock

InHand Networks SKU: InDTU324LQ25-232

filler

Region: EMEA/APAC

Network Type: LTE CAT 4

Serial Port: RS232

Variant

Price:

€105,01

Quantity:

Share this product

Description
Specifications
Download
Optional Accessories
Reviews

Compact Industrial 4G Serial to Cellular Modem

The InHand InDTU324 compact industrial 4G serial modem is designed to provide connectivity across a broad range of M2M and IoT applications. Featuring LTE CAT M1/NB1 & LTE CAT-4, they allow Internet connectivity via serial ports to PLCs, Meters, Vending Machines. They help to transport data from any industrial device to data control servers, allowing businesses to benefit from real-time data monitoring, management and control.

Operation Band

Network type	Model (region)	Band
LTE CAT-4	InDTU324LQ25 (EMEA, APAC)	LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8
CAT-M1/NB1	InDTU324NQ96	Europe and Asia Pacific - Cat M1/Cat NB1/EGPRS LTE FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 LTE TDD: B39 (for Cat M1 only) EGPRS:850/900/1800/1900MHz

Product Highlights

Ultra Compact Form Factor

Benefit from a compact and ultra-reliable 4g serial modem that packs everything you need for industrial IoT & M2M applications.

Ultra Small Form Factor with 4G and Wifi

Fully Industrial & Compact 4G Modem Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate.

Low Power Consumption

Fully operational for any M2M/IoT application where the power is often scarce.

Available in NB-IoT and LTE-M1

Reliable Wireless Communications

Multi-layer link detection mechanisms including PPP layer heartbeat, ICMP detection, TCP Keepalive and application layer heartbeat, keeping wireless connection "always-on"

Multi-layer link detection mechanisms to keep countinous connecting

Smart Protocol Conversion

Modbus RTU/Modbus TCP protocol conversion for industrial SCADA systems and field devices.

Intelligent Protocol Processing

Supporting user-defined register & heartbeat packets, transparent TCP/UDP protocol, InHand DC protocol, multi-center, 1-5 centers.

InHand Remote Centralized Management

The 4g serial modem InDTU324 is also compatible with InHand Remote Management System. This platform allows remote management & monitor of the status and parameters of all routers & gateways by InHand Networks

• Remotely manage your distributed InHand serial modem
• Upgrade firmware and update configuration in batch effectively
• Support grouping management and access control
• Monitor device status and data usage in real-time
• Easily track your devices in a map view

Product Detail

small cellular industrial 4g model with RS232, RS485

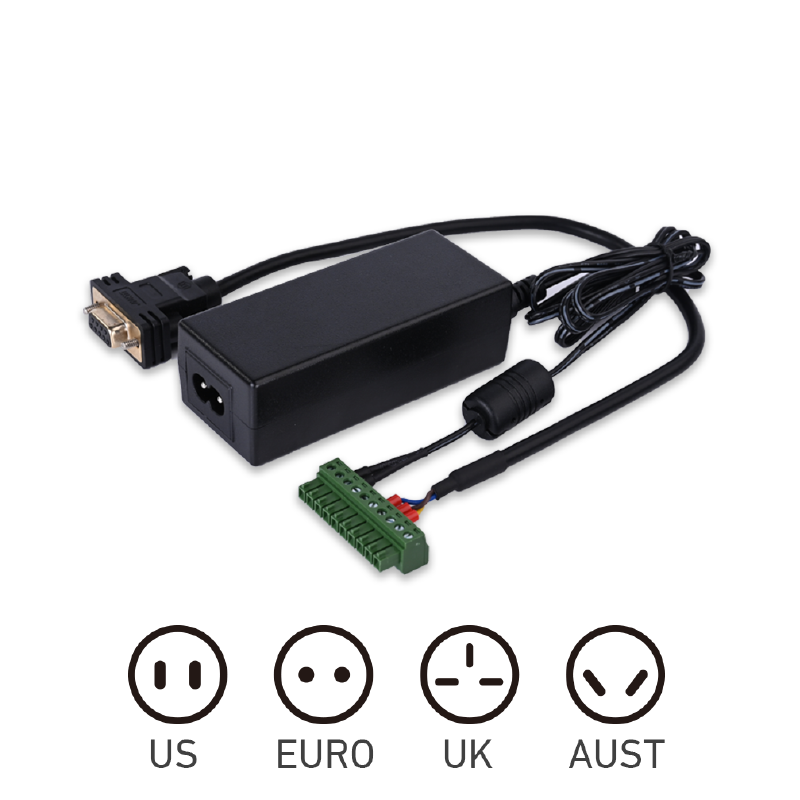

Packaging List

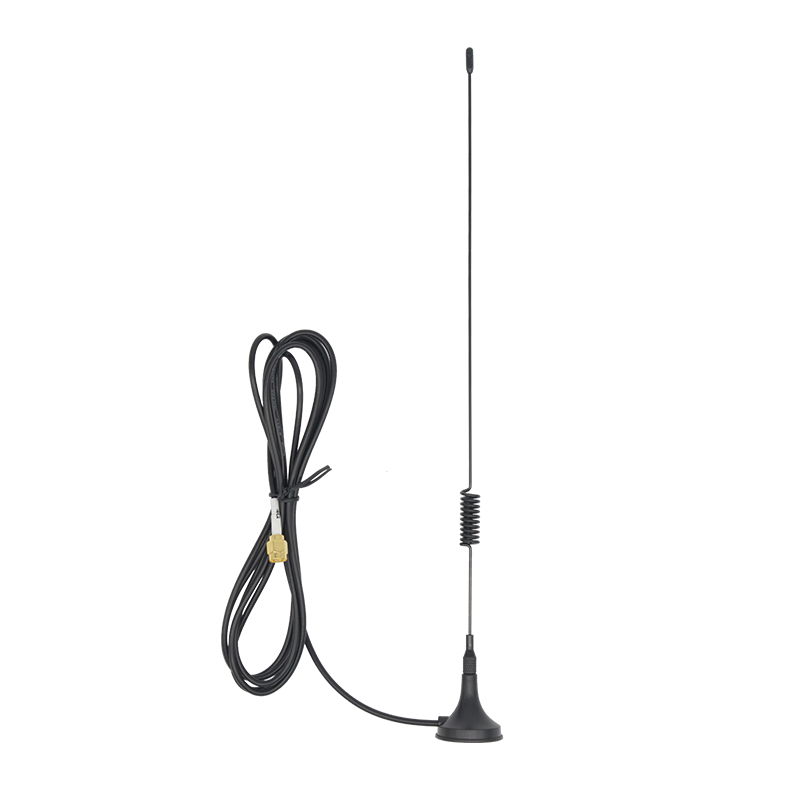

small cellular industrial 4g model with 4g antenna, terminal block

Certification

InDTU324 Hardware Specifications
Interface
Industrial Serial Port	2 x Logic serial ports: Serial port 1: RS-232/RS-485 (Optional) Serial port 2: RS-232
	RS-232 signal: TXD, RXD, GND RS-485 signal: 485+, 485-, GND
	10PIN industrial terminal, 3.5mm pitch
SIM Card Slot	1,8V/3V, drawer-type slot
Antenna	50Ω / SMA x 1

Mechanical Specs
Installation	Wall-mounting
Protection Rating	IP30
Housing	Metal
Cooling	Fanless

Power Supply
Power Input	DC5-35V
Polarity Reverse Protection	Support
Power Interface	Pluggable industrial terminal connection
Overload Protection	Support
Consumption(@12V)	InDTU324L: 12mA (Standby), 50mA (Working), 200mA (Starting), 200mA (Peak) InDTU324N: 15mA (Standby), 25mA (Working), 200mA (Starting), 200mA (Peak)

Ambient Temperature and Humidity
Working Temperature	-40 ~ +70℃
Ambient Humidity	5 ~ 95% (noncondensing)
Storage Temperature	-40 ~ +85℃

LED Indicators
LED	POWER, SIM, STATUS

EMC Index
Static	EN61000-4-2, level 2
Surge	EN61000-4-5, level 2
Shock Wave Immunity	EN61000-4-12, level 2

Certification
CE

InDTU324 Software Specifications
Network Connection
Network Access	APN, VPDN
Access Authentication	CHAP/PAP
Network Type	GPRS/3G/4G

Network Protocol
Network Protocol	Ping, DNS, transparent TCP/UDP, InHand DC TCP/DC UDP, user-defined login/heartbeat data packet
Protocol Conversion	Modbus RTU/TCP protocol conversion

Network Security
Multi-level Authorization	User levels: administrator, maintenance staff
Certification Security	Supports login security certification

Reliability
Reliable Upgrade	Patent upgrade mechanism, ensures reliable upgrade
Link Connection Detection	Sends heartbeat packet detection, auto connect once disconnected
Embedded Watchdog	Device operation self-detection technology, and self-recovery from operation faults

Network Management
Configuration Method	Local serial port, RTool, InHand Device Manager, SMS (InDTU324L only)
Configuration Backup	Supports import and export of configuration files
Upgrade Method	Patent upgrade mechanism, upgrade firmware through the local serial port or remotely
Log	Supports local and online viewing of logs facilitates checking device operating status
Dial-on-Demand	Data activation, timed on/off, SMS activation (depends on the carrier’s platform), phone activation (InDTU324L only)
Network Management	Supports InHand Device Manager remote central management
