5G RedCap · Wi-Fi 6 · 2.5GbE
IR602 — Lightweight 5G RedCap Industrial Router for IIoT at Scale
5G RedCap + 4G fallback, dual-band Wi-Fi 6, 2.5GbE, dual-SIM failover, industrial GPIO and DeviceLive cloud management — in a compact fanless metal enclosure built for control cabinets.
- Description
- Operation Band
- Specifications
- Download
- Reviews
Why IR602
5G RedCap for Industrial IoT
5G NR SA cellular backhaul for large-scale, mid-speed IIoT deployments, with 4G LTE fallback — more bandwidth than LPWA, lower cost than full-speed 5G.
Wi-Fi 6 + 2.5GbE Local Access

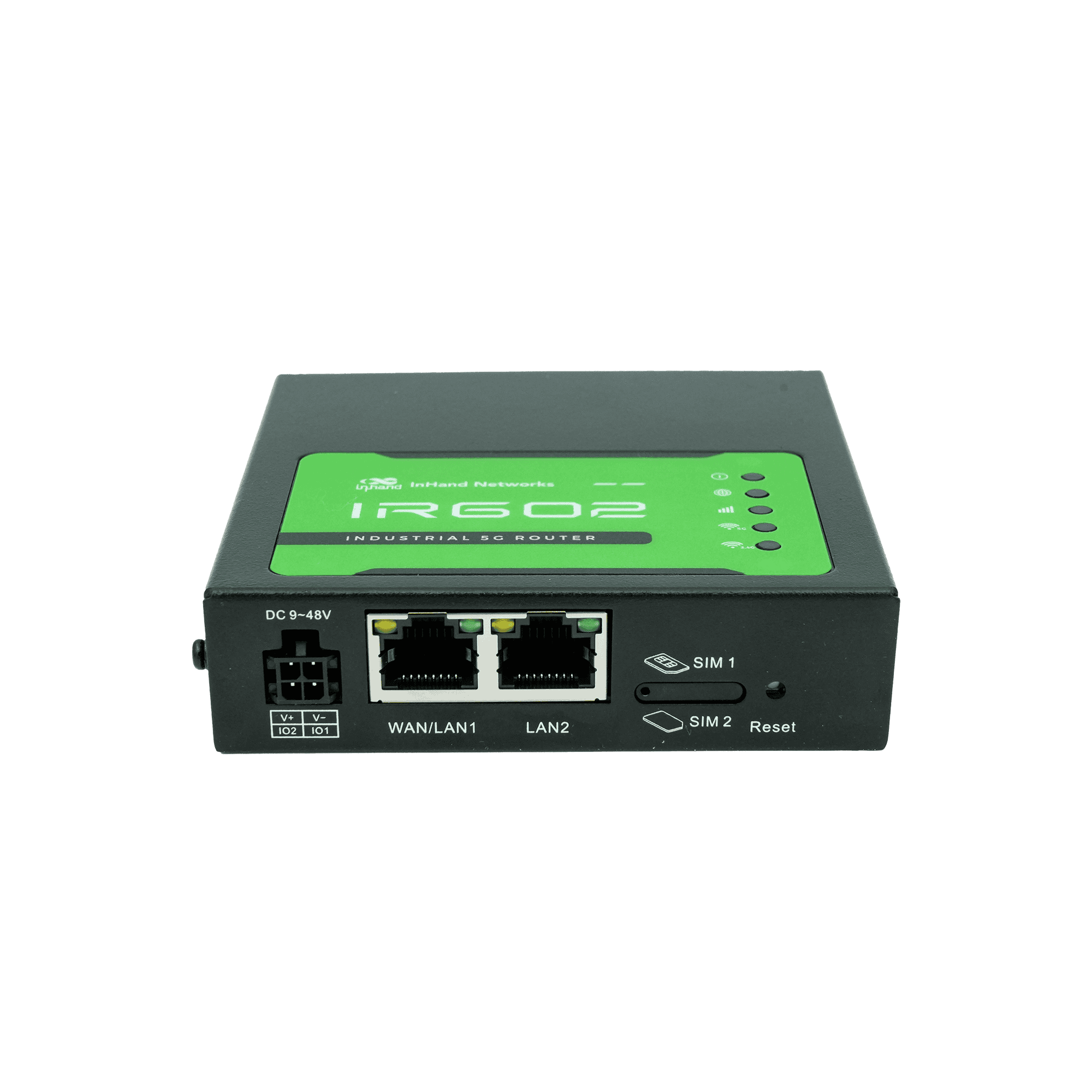

Dual-band Wi-Fi 6 (3000 Mbps), one 2.5GbE port and one GbE port connect wired and wireless field devices.
Resilient Multi-WAN Connectivity
Dual-SIM failover, multi-WAN backup, link checks and a hardware watchdog keep sites online automatically.
Secure Remote Networking
Stateful firewall, granular access controls, IPsec / L2TP / WireGuard / OpenVPN protect data between field sites and remote systems.
Cloud Management with DeviceLive
Remote monitoring, batch configuration, diagnostics, OTA updates and alerts across your whole fleet of routers.
Fanless Industrial Design
IP30 all-metal enclosure, industrial EMC protection and −40 °C to +70 °C operation for control cabinets and protected field enclosures.
Built for the Cabinet

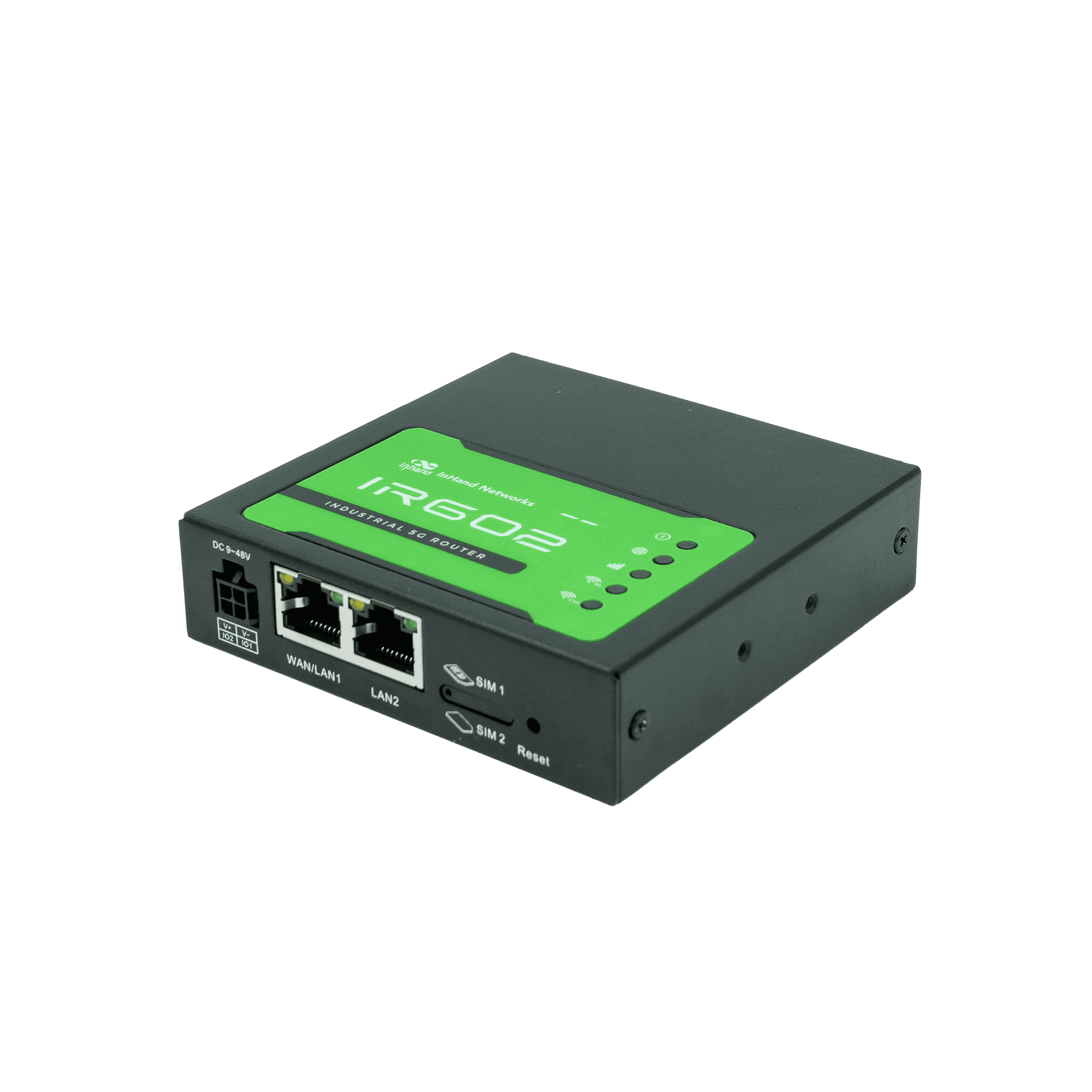

All-metal, fanless, DIN-rail ready
98.3 × 92 × 24 mm galvanized-steel enclosure with passive cooling — no fans to fail. Mount on DIN rail or wall, wire power through the 4-pin industrial terminal block (DC 12 V, ≤ 15 W).

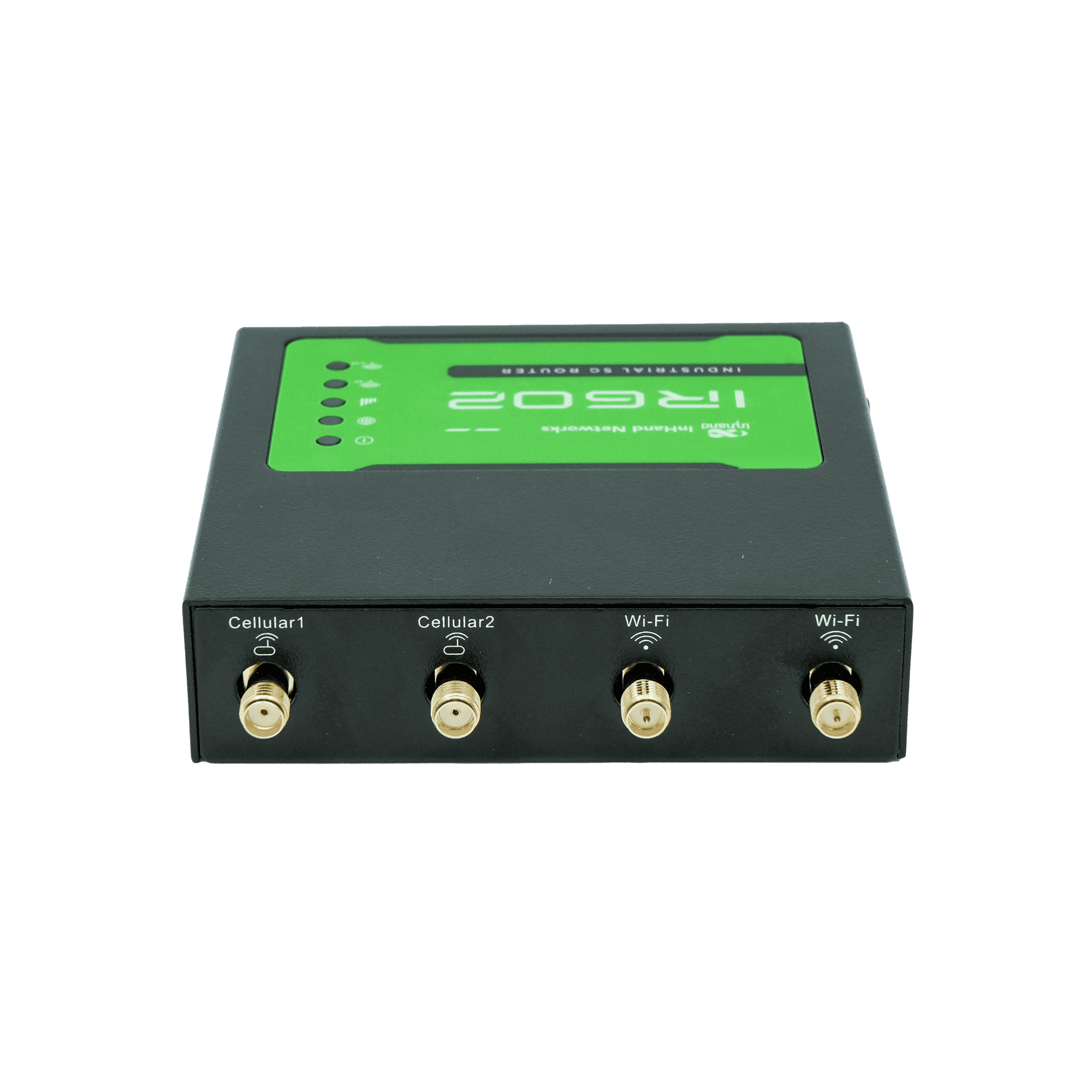

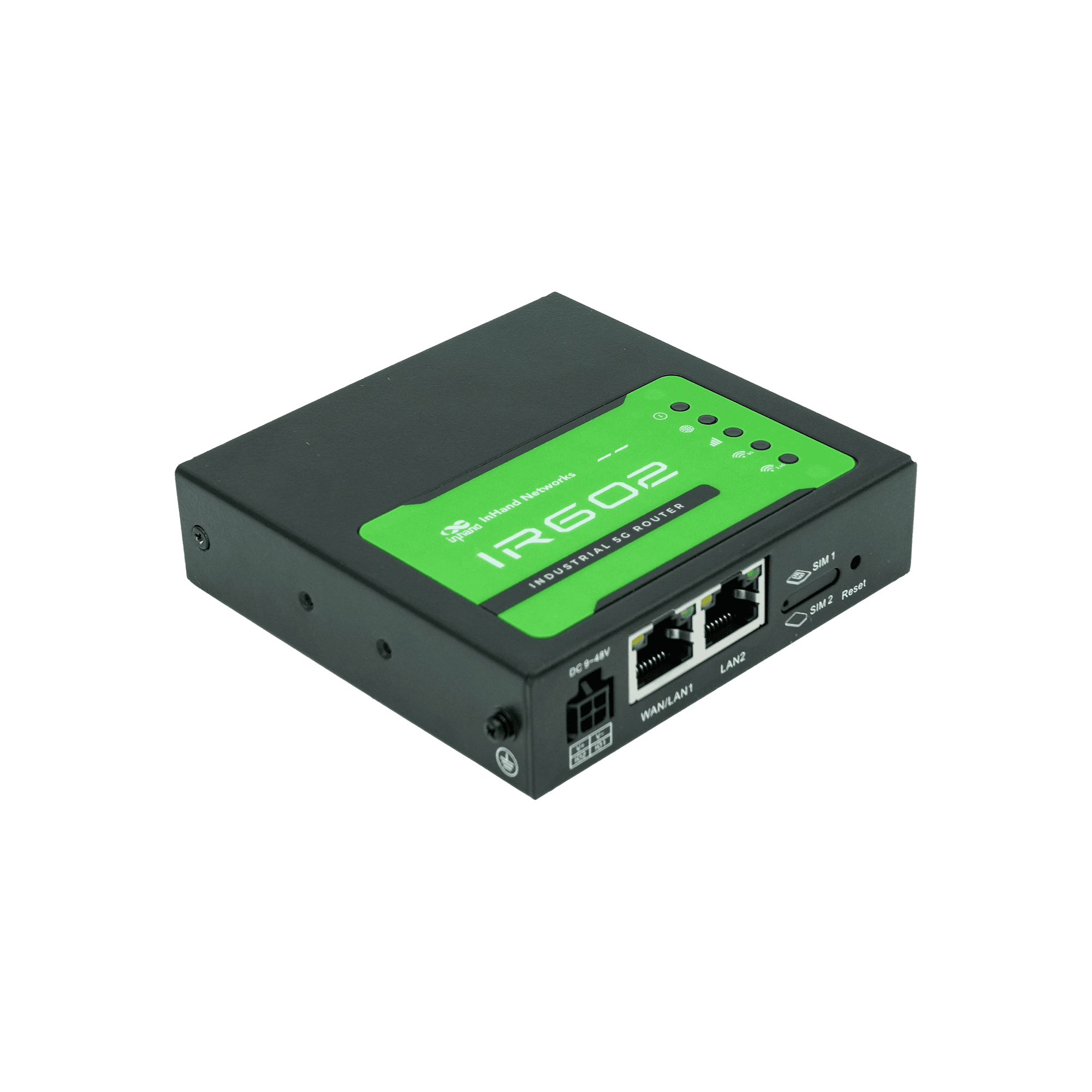

1.5 kV network transformer isolation, dual-SIM slots (nano-SIM + eSIM reserved), 4 × SMA antenna connectors and live signal LEDs make cabinet wiring and diagnostics straightforward.
Industrial I/O on board
2 × GPIO via 4-pin terminal block (input 0–30 V, wet-contact open-drain output) lets the router directly sense buttons/sensors and drive relays — no extra I/O module for simple control tasks.
Dual-core Cortex-A53 @ 1.3 GHz, 512 MB DDR3 and 128 MB SPI NAND Flash run routing, VPN and edge logic at RedCap-class throughput without a fan.
Manage the whole fleet from one screen
DeviceLive gives you real-time status and signal strength, remote diagnostics, batch configuration, OTA firmware updates and anomaly alarms — fewer site visits, faster incident response across hundreds of distributed routers.
Applications
What's in the Box
- IR602 Industrial Router × 1
- 5G Antenna × 2
- Wi-Fi Antenna × 2
- Ethernet Cable × 1
- Power Adapter × 1
- Panel-mount Kit × 1 (DIN-rail kit available as optional accessory)
Related Cases
Operation Band
| Network Type | Model / Region | Bands |
|---|---|---|
| 5G NR SA (RedCap) | Per regional SKU | To be completed from IR602 datasheet (order code table) |
| 4G LTE FDD | Per regional SKU | To be completed from IR602 datasheet |
| 4G LTE TDD | Per regional SKU | To be completed from IR602 datasheet |
| Wi-Fi | All models | 2.4 GHz + 5 GHz (802.11 ax/ac/a/b/g/n) |
Specifications
| Cellular | 5G NR SA (RedCap) + 4G LTE FDD/TDD; 2 × Nano-SIM (4FF), eSIM reserved |
|---|---|
| Processor / Memory | Dual-core Arm Cortex-A53 @ 1.3 GHz · 512 MB DDR3 · 128 MB SPI NAND Flash |
| Wi-Fi | Wi-Fi 6 (802.11 ax/ac/a/b/g/n), dual-band 2.4 GHz + 5 GHz, up to 3000 Mbps; WPA3/WPA2-Enterprise |
| Ethernet | 1 × 2.5GbE RJ45 (WAN/LAN switchable) + 1 × GbE RJ45; 1.5 kV transformer isolation |
| Industrial I/O | 2 × GPIO (4-pin terminal block): input 0–30 V; open-drain output |
| VPN | IPsec (IKEv1/IKEv2) · L2TP (client/server) · WireGuard · OpenVPN |
| Security | Stateful firewall, inbound/outbound rules, port forwarding, SNAT/DNAT, MAC & domain filtering, policy routing, QoS traffic shaping |
| Cloud | DeviceLive: monitoring, remote diagnostics, batch config, remote maintenance, OTA updates, alarms, signal analysis |
| Power | DC 12 V / 2 A via 4-pin terminal block · consumption ≤ 15 W · fanless passive cooling |
| Enclosure | All-metal SGCC steel, black fine-texture coating · IP30 · 98.3 × 92 × 24 mm · ≈ 390 g |
| Temperature | Operating −40 °C to +70 °C (extended to +75 °C) · Storage −40 °C to +85 °C · Humidity 5–95% non-condensing |
| Mounting | DIN rail / wall-mount |
| Reliability & EMC | Shock IEC 60068-2-27 · Vibration IEC 60068-2-6 · Free fall IEC 60068-2-32; ESD/RS/EFT/Surge/CS/PFMF EN 61000-4 series, Level 3 |
