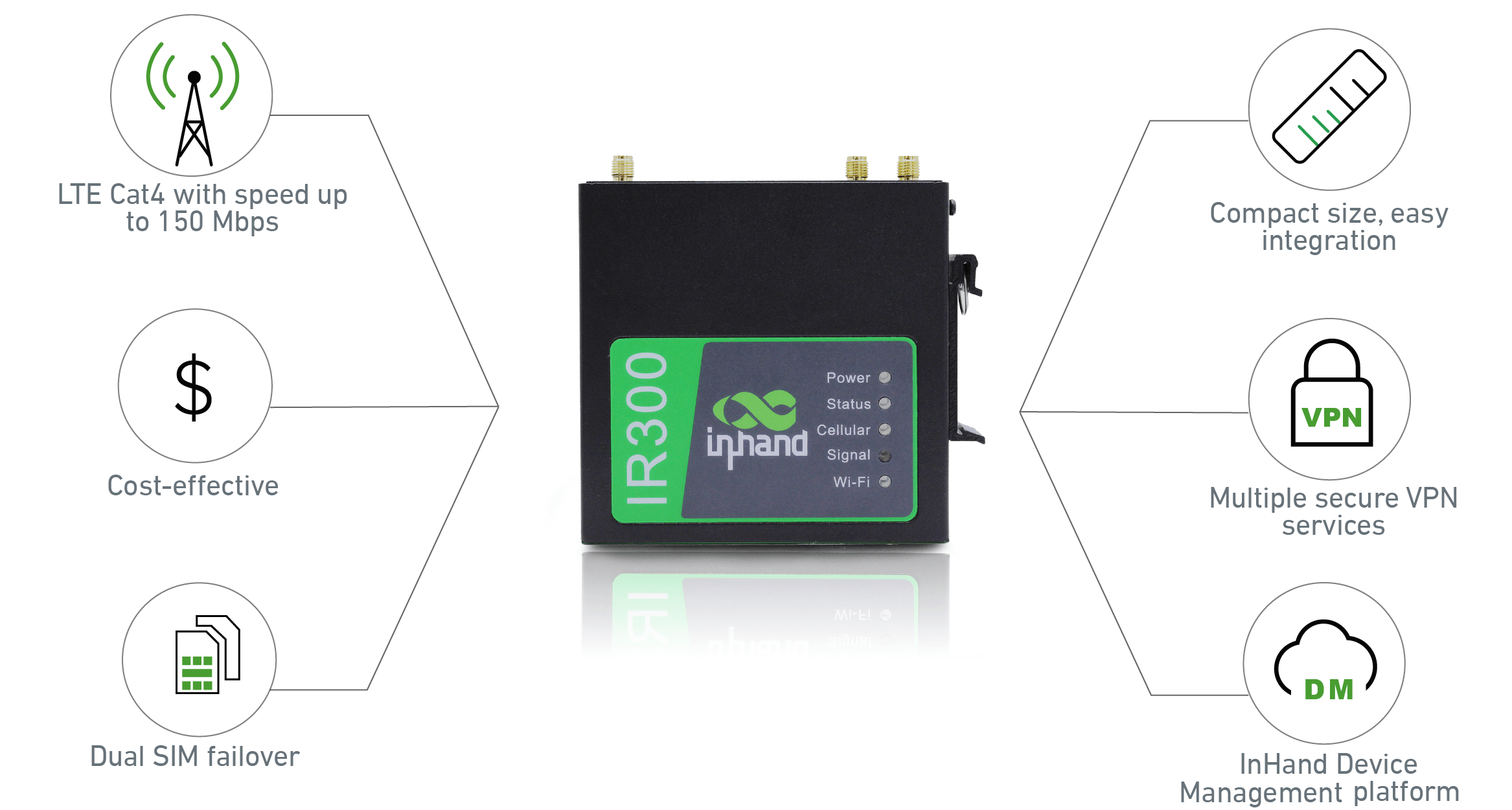

InRouter300 Series - A compact and easy-to-use LTE Cellular Router

InHandgo IR300 is a cost-effective and secure, compact industrial 4G VPN router, equipped with two Ethernet ports, dual SIM holders and a WiFi interface. It provides easy, reliable, and secure internet connectivity. The industrial cellular router can be used in a wide range of industrial and commercial IoT applications, delivering an option of a good balance between cost and performance.

InRouter302 Compact Industrial LTE VPN Router

Interested in this product?

Get Best Quote

Product Highlights

Compact and Rugged Housing Design LTE VPN Router

The industrial cellular router fits in narrow spaces easily with small, compact and industrial design, meanwhile supports both panel and DIN-rail mounting, suitable for various IoT deployment sites.

industrial compact and rugged cellular router

Fully Industrial Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial WiFi router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

-20℃-70℃, IP30 protection level, EMI resistant, lighting resistant

Verizon, AT&T Certified Router - Plug and Play

IR300 is functionality meets carriers' access standards. With the certifications of Verizon and AT&T, the device can quickly connect to the network after being plugged in.

Continuity and Reliability Network Connection

The main link is WiFi or 4G optional, so is a backup link. WiFi and dual SIM ensures business data continuity by automatic switching to an available backup connection.

industrial reliable cellular router with link backup

Strong Security Protection

The IR300 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

Remote Centralized Management

IR300 is also compatible with InHand Remote Centralized Management System. This platform allowed to remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks.

Provide remote centralized management of your distributed InHand industrial WiFi routers & gateways
Upgrade firmware and update configuration in batch effectively
Support grouping management and access control
Monitor device status and data usage in real time
Easily track your devices in a map view

Fast and Easy Connectivity to Remotely Manage IoT Devices

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

Remotely Manage IoT Devices by InConnect

Product Detail

InRouter302 Compact Industrial LTE VPN Router with 2 ethernet ports

Packaging List

InRouter302 Compact Industrial LTE VPN Router, terminal block, 4G antenna

Certification

Network type

Model(region)

Band

LTE CAT-4

IR302-LQ28

FDD: B1/ B3/ B5/ B8

TDD: B34/ B38/ B39/ B40/ B41

WCDMA: B1/ B8

EVDO-CDMA: BC0

GSM: B3/ B8MHz

InRouter 302 Hardware Specifications
Hardware Platform
CPU Platform	580MHz
RAM	128MB DDR2
Flash	32MB SPI
Interface
Ethernet Port	2* 10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection Note: IR301-FQ02(- -W) has one port only
Serial Port	IR301 has 2 serial ports. 1RS-232 and 1RS-485 in RJ45 form. IR302 has no serial port.
Power Supply	DC9- -36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal block
Reset Button	Pinhole reset button
SIM Card	Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional)	IEEE 802.1 1b/g/n, 150Mbps
Antenna Connector	3G/4G: SMA x 1 Wi-Fi: RP-SMA x 1 Note: North America models (FQ38, FQ33) have 2 x SMA 4G antennas. IR301-FQ02(-W) has only 1 SMA 4G cellular antenna
Ground Terminal	Supports

Mechanical Specs
Dimensions (mm)	90X90x25mm
Weight (g)	240g
Installation Method	Panel mounting, rail mounting
Protection Rating	IP30
Housing	Metal
Cooling	Fanless

Power Rate
Working Power	200-220mA@12V
Standby Power	90mA-120mA@12V
Peak Power	240mA@12.0V

Wi-Fi Transmit Power
Transmit Power	802.11b: 16dBm +/-2dBm (11Mbps) 802.11g: 16dBm +/-2dBm (54Mbps) 802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7) 802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)

Ambient Environment
Storage Temperature	-40 ~ 85℃
Operating Temperature	-20 ~ 70℃
Ambient Humidity	5 ~ 95% (non-condensing)

Indicator
LED	Power, Status, Cellular, Wi-Fi, cellular Signal

EMC
Static	EN61000-4-2, level2
Radiation Electric Field	EN61000-4-3, level 2
Pulsed Electric Field	EN61000-4-4,level 2
Surge	EN61000-4-5,level 2
Conducted Disturbance Immunity	EN61000-4-6, level 2
Shock Wave Resistance	EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance	; EN61000-4- -8, horizontal Ivertical 400A/m (>level 2)

Physical Specs
Shockproof	IEC60068-2-27
Vibration Resistance	IEC60068-2-6
Free Fall	IEC60068-2-32

Certificate
CE, FCC, PTCRB, IC, Verizon, AT&T

InRouter302 Software Specifications
Network Connection
Network Access	APN, VPDN, PrivateNetwork
Access Authentication	CHAP/PAP
LAN Protocol	ARP
WAN Protocol	PPP, PPPoE, DHCP
Network Type	GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/ FDD LTE (Please refer to the Ordering Guide for frequencies.)

Network Protocol
IP Application	Ping, Route Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, SSH
IP Routing	Static routing, Dynamic routing
NAT	Supports network address translation

Security
Network Security	Stateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, Access Control List (ACL); Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security	Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OpenVPN protocols Supports CA digital certificate

Reliability
Hot Backup	VRRP hot backup
Link detection	Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover	Device runs self - detection, auto recovers from malfunctions

WLAN (optional)
Protocol	IEEE 802.11b/g/n
Rate	Up to 150Mbps
Mode	AP, STA and WDS modes
Security	Open system, shared key, WPA/WPA2 certification WEP/TKIP/AES encryption
Transmission Distance	100 meters by line of sight (Actual transmission distance depends on environment of the site.)

Network Management
QoS Management	Bandwidth limit,IP speed limit
Configuration	Telnet, web, ssh, and console
Upgrade Method	Web, Device Manager
Logs	Local system logs, remote logs, and serial export of logs. Power down saving of important logs.
SMS Functions	Status query, configuration, restart
Dial-on-demand	Dial-on-demand, data / SMS activation
Network Management	Supports InHand DeviceManager, batch management
SNMP	SNMP v1/v2c/v3，support SNMP TRAP
Traffic Management	Supports data traffic threshold, traffic statistics and traffic alarm
Alarms	System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools	Ping, route tracking, network speed test
Status Query	System status, modem status, network connection status, and routing status
