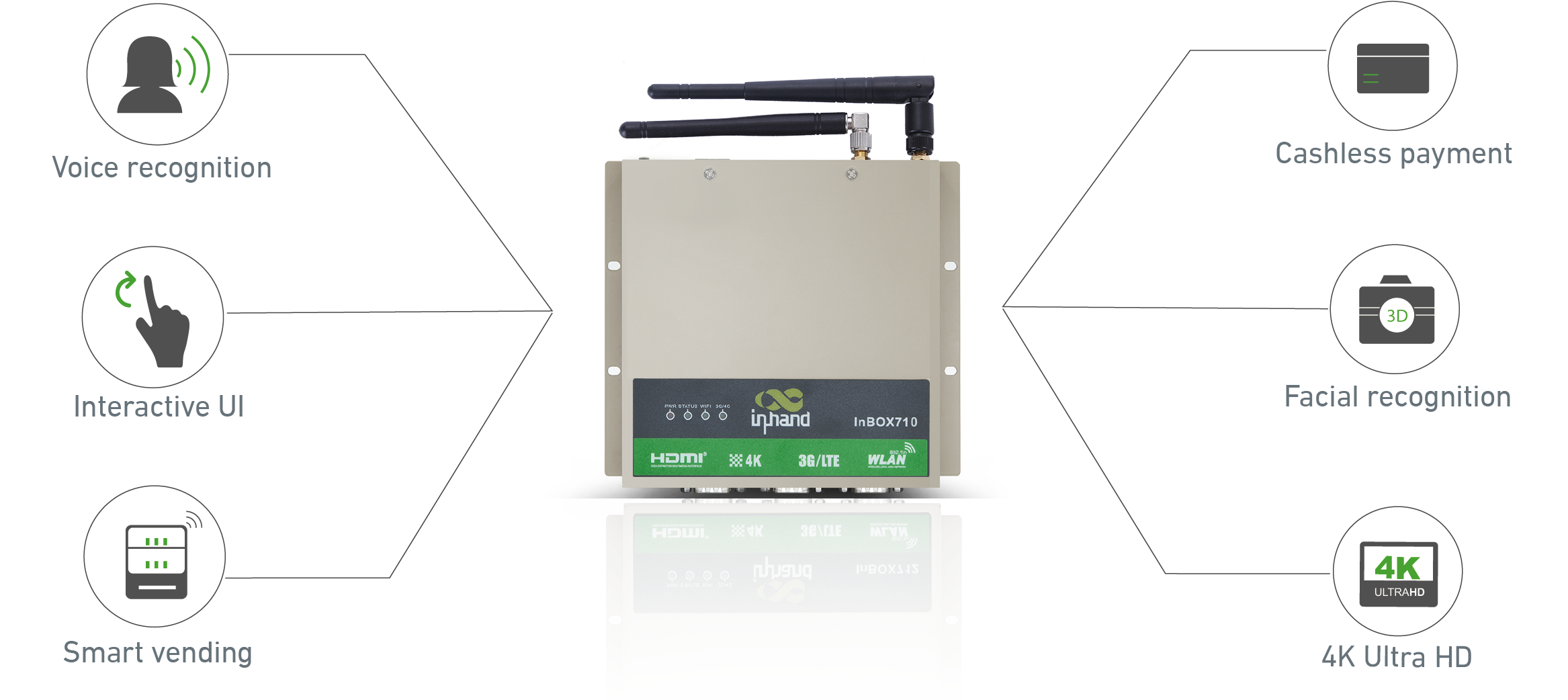

Industrial Embedded Computer for Unattended Retail

The InBox710 is an industrial edge computer powered by a high-performance ARM processor integrating dual-core Cortex-A72, quad-core Cortex-A53 and Mali T860 MP4 GPU, which enables artificial intelligence at the edge.

Featuring 4K Ultra HD on HMDI, touch screen interface, advanced peripherals on USB & serial ports, and highspeed LTE connectivity, the InBox710 is the engine of unattended retail solutions.

With a rugged metal enclosure and wide temp -20°C to +70°C, the InBox710 is designed to withstand outdoor or harsh environments.

nBox710 Industrial Computer for smart ATM

Features and Advantages

  • + ARM Dual-core Cortex-A72 &
    Quad-core Cortex-A53
  • + Android 7.1, Linux(Debian 9)
  • + 4G LTE
  • + Wi-Fi
  • + Gigabit Ethernet
  • + HDMI
  • + Serial
  • + USB 3.0
  • + 16GB Flash
  • + Fanless Design
  • ● AI for Unattended Retail

Equipped with a powerful ARM processor, USB 3.0, and LibUSB+LibUVC,
the InBox710 is capable of driving 3D cameras and other peripherals to
enable facial/voice recognition powered by AI.

  • ● High-speed and Reliable LTE Connectivity

With 4G LTE/3G, the InBox710 ensures reliable and continuous
connectivity for digital signage and retail.

  • ● 4K Ultra HD Display & Touchscreen Interface

The InBox710 edge computer/media player supports 4K@60 HZ and touchscreen to display ultra HD videos and interactive UI for an
engaging customer experience.

Product Detail

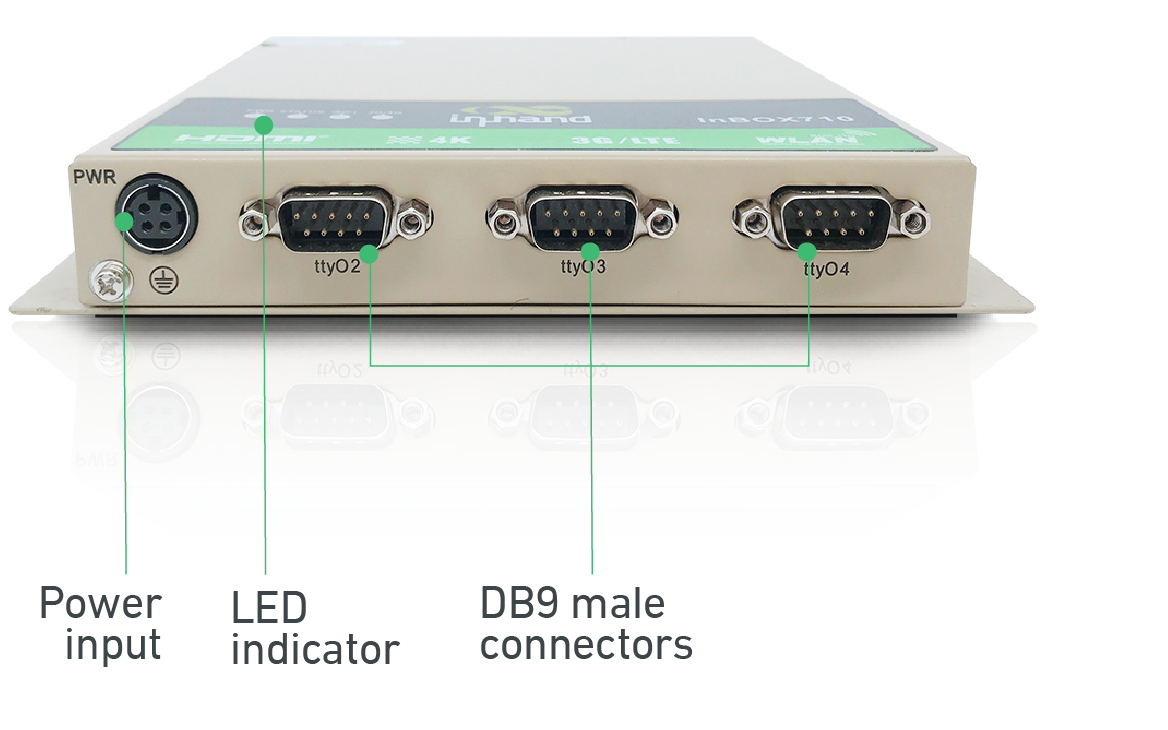

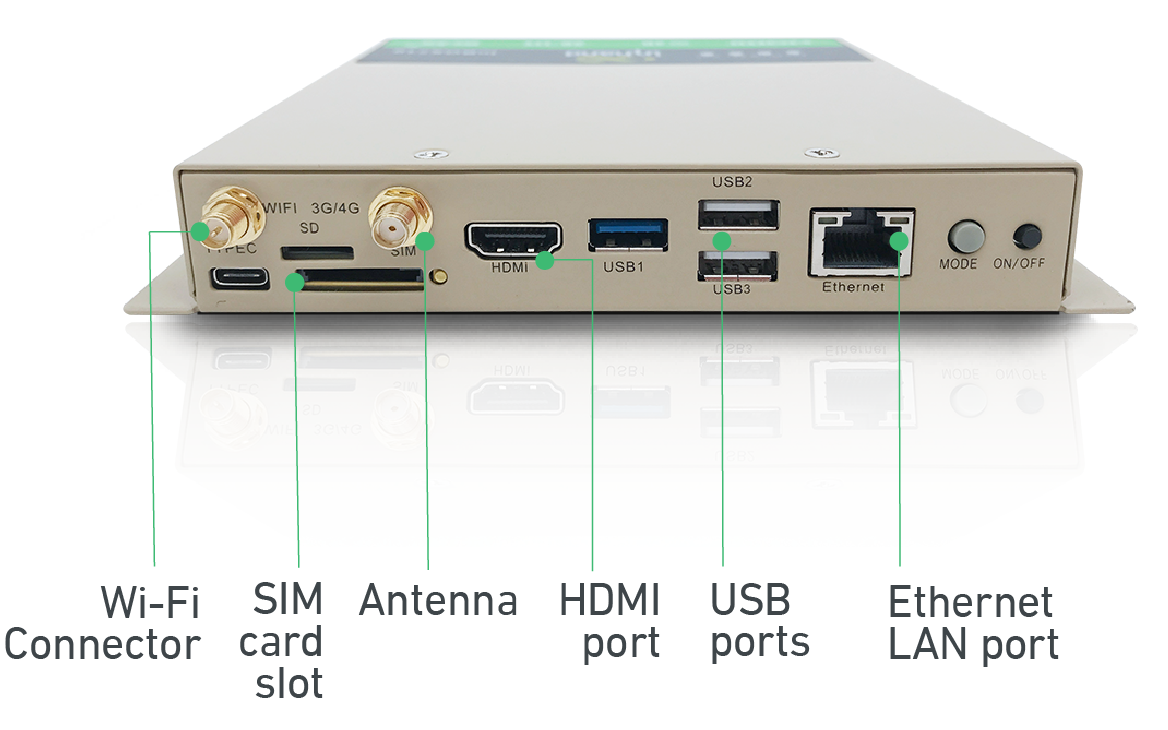

InBox710 with 4g high-speed LTE connectivity InBox710 Industrial Edge Computer with 3 DB9 Male Connectors

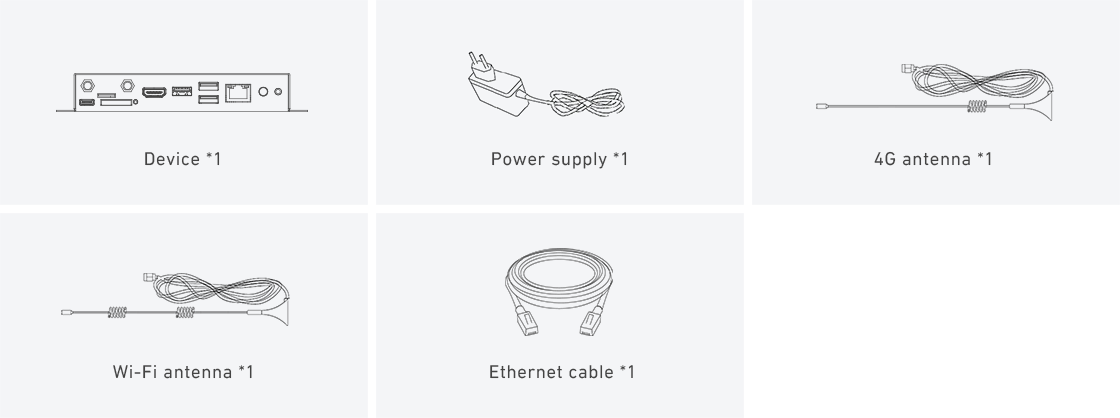

Packaging List

InBox Industrial Edge Computer package list

Certification

InBox710 High Performance Industrial Edge Computer certification
Mode Model code: : InBox710-<WMNN><STD><S>
<WMNN>： wireless type & module <STD/L>：OS <S>：Serial port type
InBox710-FS39-STD North America, Verizon Wireless
LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz		 STD: standard Android version <NA>: RS232 x 3
-485: RS485 x 1, RS232 x 2
InBox710-FS39-L North America, Verizon Wireless
LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz		 L: Linux <NA>: RS232 x 3
-485: RS485 x 1, RS232 x 2

InBOX710
Processor
CPU RK3399, highest frequency: 1.8GHz; 64 bits
Memory 2 GB
Flash 16 GB
Graphic
Processing Double ISP pixel processing capability up to 800 MPix/s, with support for simultaneous data input from two cameras, and high-level processing such as 3D and deep information extraction
Video codec H.265/H.264/VP9 4K@60 fps HD video decoding
Image BMP, JPG, PNG, GIF
Interface
SIM Drawer-type SIM card holder × 1
SD Card Slot Drawer-type SD card holder × 1
Antenna 3G/4G: SMA × 1; Wi-Fi: RP-SMA × 1
LED Indicators Power, Operation Status, 3G/4G, Wi-Fi
Serial RS232 x 3 (1 RS232 can be configured to RS485), DB9 male connector
USB USB 2.0 Type A x 2, 2A; USB 3.0 Type A x 1, 1.5A (independent power supply)
Ethernet 10/100Mbps Ethernet port × 1, LAN/WAN
HDMI HDMI 2.0 x 1 Resolution: 4096×2160 (4K), 1920x1080, 1366x768, 1280x720, 1024x768, with audio output
Wi-Fi 802.11b/g/n, Client/AP mode
Power 12V DC-input × 1 (self-lock four-core circular interface)
Physical
Mounting Wall-mounting
Housing Metal, IP40
Dimensions 17x15x2.6cm
Cooling Fanless
Environment
Operating Temperature -20°C to +70°C (industrial grade)
Storage Temperature -40°C to +85°C
Humidity 5–95% (non-condensing)
Software
OS Android 7.1/Linux(Debian)
Others
Watchdog Supported
Hardware information Custom API used to read hardware information.
RTC Embedded RTC, power supply with Button batteries
Power consumption <10 W
EMC
Level ESD: level 3; EFT: level 3; Surge: level 3
Certifications
CE, FCC, IC

Pictures Description Price Add to Cart
High Gain Omni-Directional 5dBi SMA 4G Paddle Antenna $ 6
High Gain Omni-Directional 5dBi SMA 4G Paddle Antenna $ 6
SMA-4G Magnetic Base Antenna $ 4
SMA Magnetic Base WIFI Antenna $ 4
