InGateway902 Industrial High-Performance IoT Gateway with Python and Docker

InHand Networks SKU: IG902-B-FS39
filler

Price:
$485

Powerful Edge Computing Gateway, Multiple Industrial Protocols, Fast Python Customization

InGateway902 features powerful edge computing capabilities. It realizes data optimization, real-time response, agile connection and intelligent analysis on the IoT edge, significantly reduces the data flow between field sites and data center, and avoids bottlenecks of cloud-end computing.
The InGateway902 is a certified Microsoft Azure IoT Device and is also AWS IoT Greengrass qualified.

Powerful Computing, Multiple Industrial Protocols, Fast Python Customisation

Product Highlights

PLC Remote Management

Operation and maintenance personnel can remote control and monitor PLC devices anywhere, anytime. Remote programming.

8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3

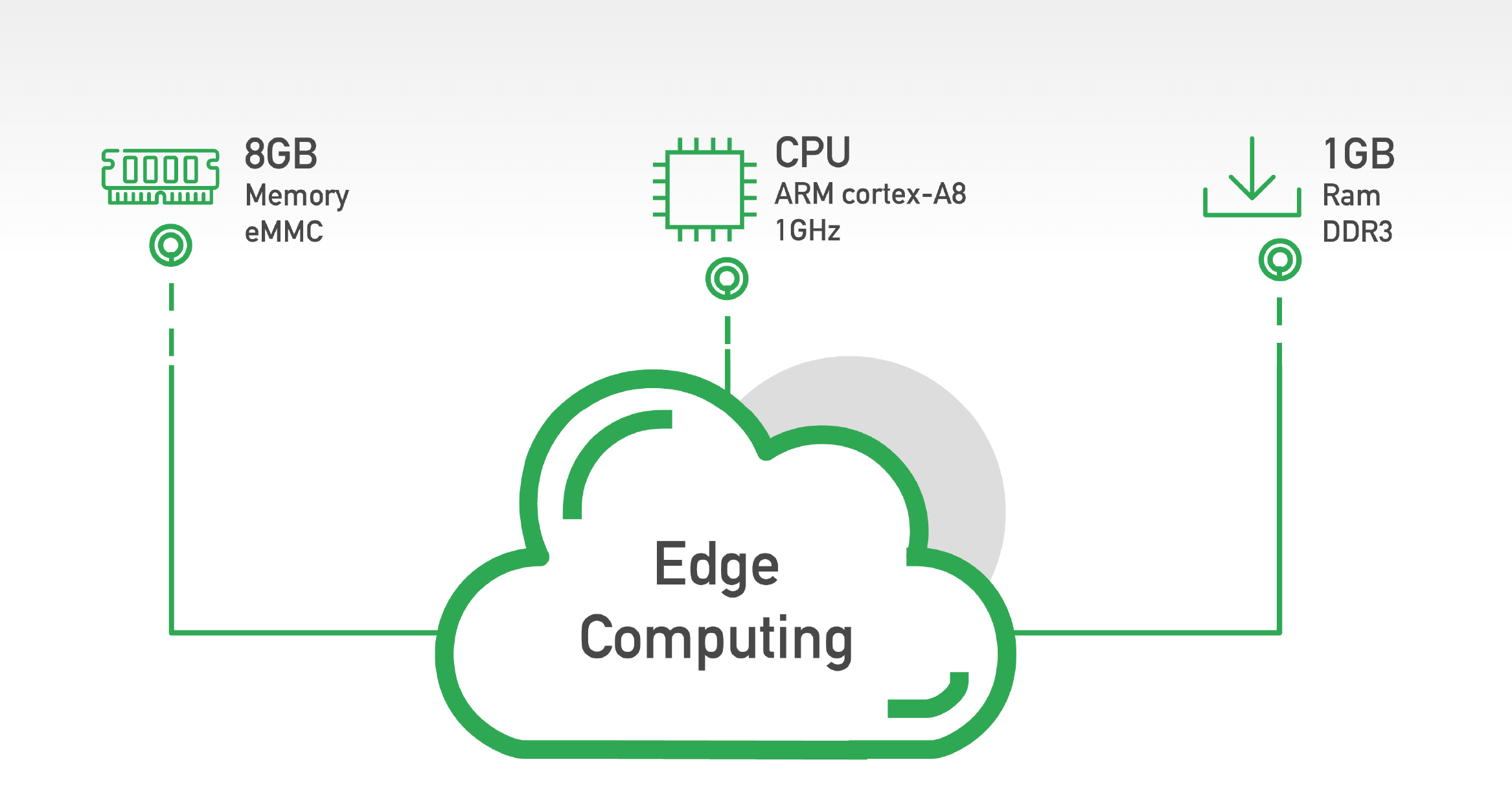

Powerful Computing Capability

The InGateway902 is equipped with the hardware required for full-scale IoT edge computing, including a high-performance ARM Cortex-A8 processor (1 GHz), high capacity DDR3 RAM up to 1GB and 8GB eMMC FLASH, which gives the gateway powerful edge computing capabilities.

8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3

Compatible with Multiple Industrial Protocols

To adapt to the broadly diversified IoT industry, InGateway900 is compatible with a rich selection of mainstream industrial real-time Ethernet protocols and fieldbuses.

Modbus TCP, PPP +CC-LINK, ErhernetNET/IP, Modbus RTU, OPC UA Server

A Cooperative Ecosystem

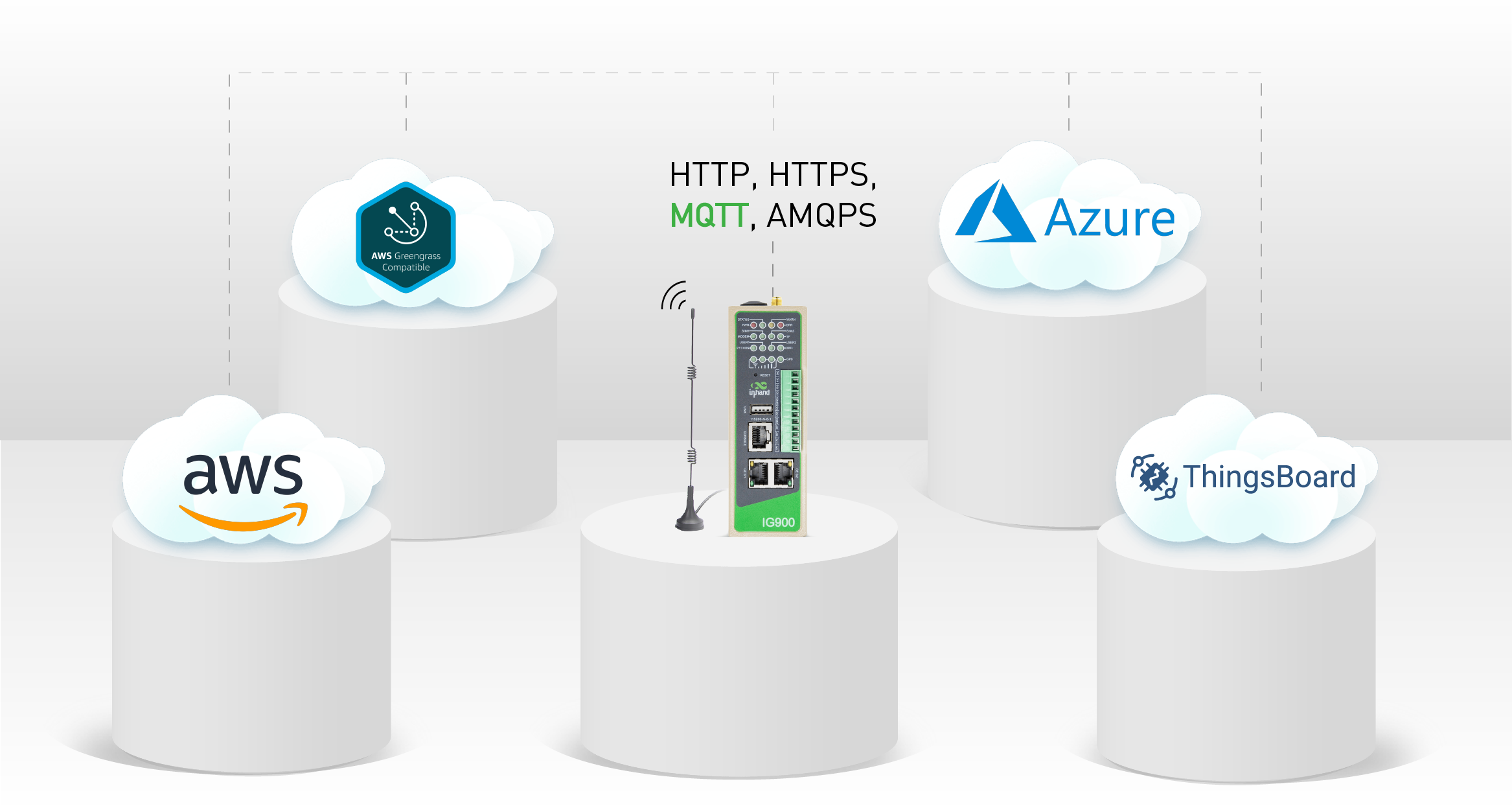

InHand has become a partner of Microsoft and Amazon, providing users with multiple industrial cloud solutions. The edge gateway supports Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform.

Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform

Fully Industrial Design

EMC level 3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

EMC L3, IP30

Docker

Docker Container as a standard feature that can build and operate a scalable and seamless IoT system. It also can develop, release and execute cross-platform applications regardless of the edge or the cloud side.

Docker and IOT system

Python Custom Development Platform

Embedded with the support of the Python development platform, customers may custom-develop applications to meet their application requirements. While with the integrated SDK provided by InHand, customers may access the system APIs and other resources easily.

Customized Application, Integrated SDK and access system APIs

InHand Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

InGateway902 Industrial Edge Computing Gateway with Azure, AWS IoT Greengrass Qualified

Remote Centralized Management

InGateway902 is also compatible with InHand Remote Management System. This platform allows remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks

  • • Remotely manage your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping management and access control
  • • Monitor device status and data usage in real time
  • • Easily track your devices in a map view
Device Manager - Join for free

Product Compare

InGateway
Model IG502 IG902-H
CPU ARM Cortex-A8 ARM Cortex-A8
RAM 512MB 1GB
Flash 8GB eMMC 8GB eMMC
Ethernet port 2*10/100Mbps,1*WAN/LAN+1*LAN 2*10/100/1000Mbps, 2*WAN/LAN
Wi-Fi
I/O 4*DI and 4*DO 4*digital input Dl
2*dry contact control port
3*digital/pulse output DO
1*digital output DO
Bluetooth ×
Serial Port 1*RS232, 1*RS485 1*RS232, 1*RS485
Dual SIM
Python
Docker ×
Data security OpenVPN, IPSec VPN IPSec VPN,OPENVPN, CA (may autoapply)

Product Detail

IG902-H
IG902-B

Packaging List

IG902, WiFi antenna*2, LTE 4G antenna, Power Supply, Ethernet Cable

Compatible with Most PLC Brands

brands

Certifications

CE, FC, AT&T, VERIZON, PTCRB
Network type Model (region) Band
LTE CAT-4 IG902-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-6 IG902-FS39 (North America) LTE-FDD CAT 4 Band 2/4/5/13/17
UMTS(DC-HSPA+) Band2/5
(For North America, Verizon, AT&T )

IG902 Hardware Specifications
Item IG902-B
(Basic Version)
IG902-H
(High-config Version)
Hardware Platform
CPU ARM Cortex-A8 1GHz
RAM 512MB DDR3 1GB DDR3
FLASH 8GB eMMC
Interfaces
Ethernet Port 2*10/100/1000Mbps fast Ethernet ports, WAN/LAN or 2*LAN
I/O No

4*digital input DI

2*dry contact control port

3*digital/pulse output DO

1*digital output DO


Industrial Serial Port RS-232 x 1, RS-485 x 1;
RS-232 signal: TXD, RXD, GND;
RS-485 signal: A, B, GND
ESD protection: 15KV
Console Port RS-232 x 1, RJ-45 interface
Wi-Fi (Optional) Support 2.4G&5G (802.11 ac/a/b/g/n)
USB 1 x USB 2.0 port
Reset Button Pinhole button
SIM Card Slot 1.8V/3V, drawer-type slot x 2
MicroSD Expansion Up to 32GB
GPS (Optional) Satellite positioning GPS: SMA x 1
Mechanical Feature
Installation DIN-rail, wall mounting
Protection Rating IP30
Housing Metallic structure
Cooling Fan-less cooling
Power Supply
Power Input DC 12-48V
Polarity Reverse & Overcurrent Protection Supported
Power Terminal Unpluggable industrial terminal connection
Ambient Temperature and Humidity
Storage Temperature -40 ~ 85℃
Working Temperature -25 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Others
Real-time Clock (Optional) Embedded real time clock (RTC), powered by super capacitor
Indicators
LED POWER, STATUS, WARN, ERROR, MODEM, SIM1, SIM2, TF (card), PYTHON, USER1, USER2, WIFI, GPS, SIGNAL
EMC Index
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulsed Electric Field EN61000-4-4, level 3
Surge EN61000-4-5,level 3
Conducted Disturbance EN61000-4-6, level 3
Power Frequency Magnetic Field EN61000-4-8, horizontal/vertical 400A/m (>level 3)
Certification
CE, FCC, PTCRB, RoHS, RCM, IC, IMDA, AT&T, MIC&JATE, MSIP,ANATEL, UKCA
IG902 Software Specifications
Item IG902
Network Interconnection
Network Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Network Type LTE, WCDMA (HSPA+) EDGE, GPRS, CDMA
LAN Protocol ARP, EtherNet
Network Protocol
IP Application Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
IP Routing Static Routing
Network Security
User Levels Multi-level user authorization
AAA
Local authentication, Radius, Tacacs+, LDAP
Firewalls Stateful packet inspection (SPI), anti-DoS attack
Multicast/Ping filter, Access Control List (ACL)
NAT, PAT, DMZ, port mapping, virtual server
Data Security IPsec VPN, OPENVPN, CA (may auto apply)
Reliability
Backup VRRP, interface backup, dual-SIM backup
Link Detection Heartbeat packet detection, auto-recovery of disconnection
Embedded Watchdog Device self-diagnosis, auto-recovery from operation faults
WLAN (Optional)
Standard IEEE 802.11 /b/g/n
Security Open System, Shared Key, WPA/WPA2 certification, WEP/TKIP/AES encryption
Mode AP, Client modes
Network Management
Configuration Method Local or remote HTTP, HTTPS, Telnet, SSH
Upgrade Method Local or remote WEB, DM, TFTP, FTP, SFTP server
Log
Local or remote log export, power-down log saving
SMS
Status inquiry, configuration, and reboot
Dial On-demand Activated by data, activated by SMS, scheduled online/offline
Network Management SNMP v1/v2c/v3, InHand MIBs
InHand DM Centralized management, batch configuration
Network Diagnostics Ping, Traceroute, Sniffer (network packet capture tool)
Development Platform
Development Platforms Python customization development; Microsoft Azure, Amazon AWS, Schneider EcoStruxure, InHand DN cloud platform
Industrial Protocol
Protocols Modbus RTU, Modbus TCP, OPC UA Client, EtherNET/IP, ISO on TCP, Mitsubishi MC 3C, Mitsubishi programming port (serial port), Modbus TCP Slave, IEC 104 Slave
