InGateway902 Industrial Edge Computing Gateway with Azure, AWS IoT Greengrass Qualified

InHand Networks SKU: IG902-B-FS39-W-G
filler

Price:
$545

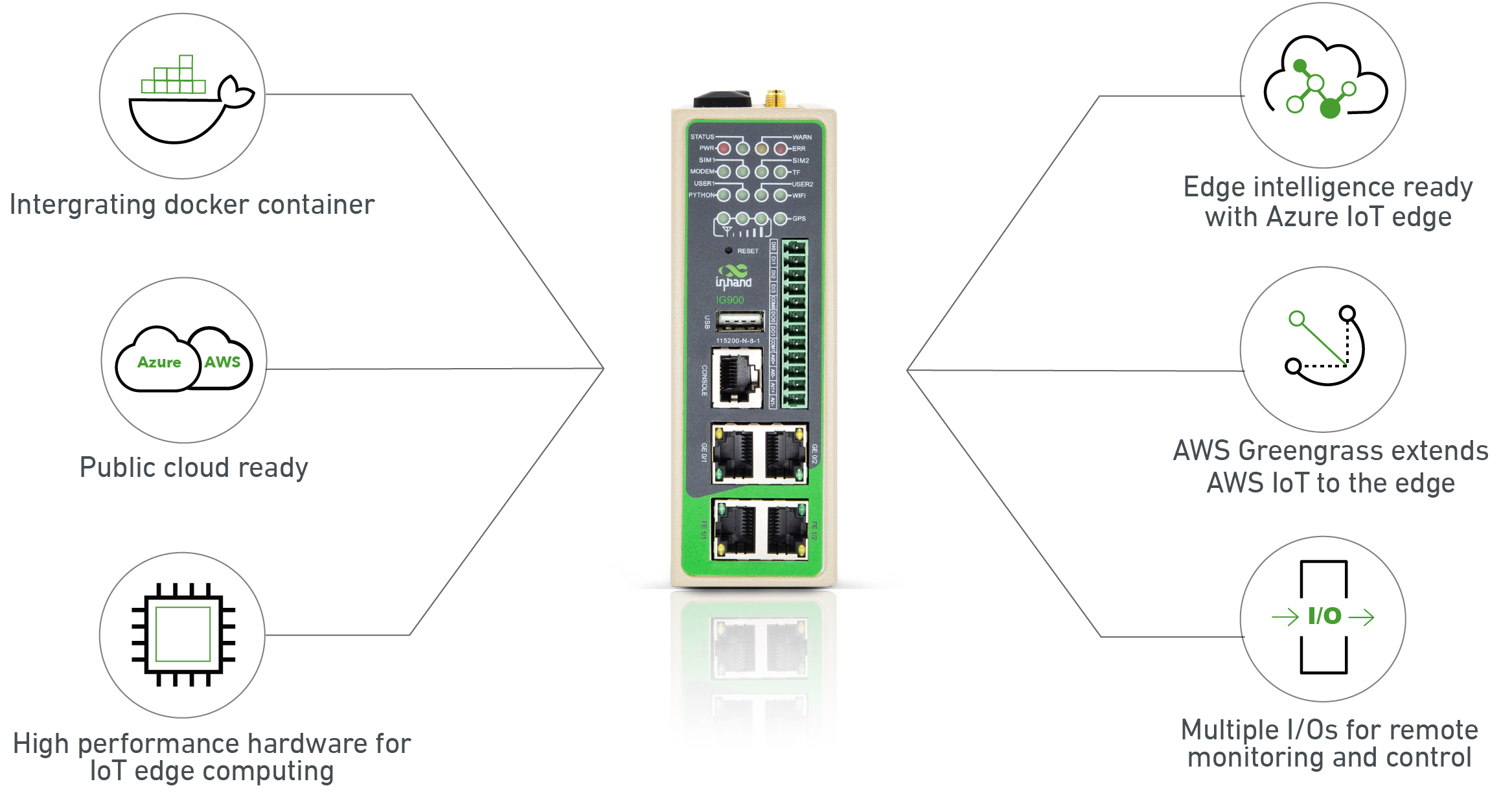

Powerful Edge Computing Gateway, Multiple Industrial Protocols, Fast Python Customization

InGateway902 features powerful edge computing capabilities. It realizes data optimization, real-time response, agile connection and intelligent analysis on the IoT edge, significantly reduces the data flow between field sites and data center, and avoids bottlenecks of cloud-end computing.
The InGateway902 is a certified Microsoft Azure IoT Device and is also AWS IoT Greengrass qualified.

Powerful Computing, Multiple Industrial Protocols, Fast Python Customisation

Product Highlights

Powerful Computing Capability

The InGateway902 is equipped with the hardware required for full-scale IoT edge computing, including a high-performance ARM Cortex-A8 processor (1 GHz), high capacity DDR3 RAM up to 1GB and 8GB eMMC FLASH, which gives the gateway powerful edge computing capabilities.

8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3

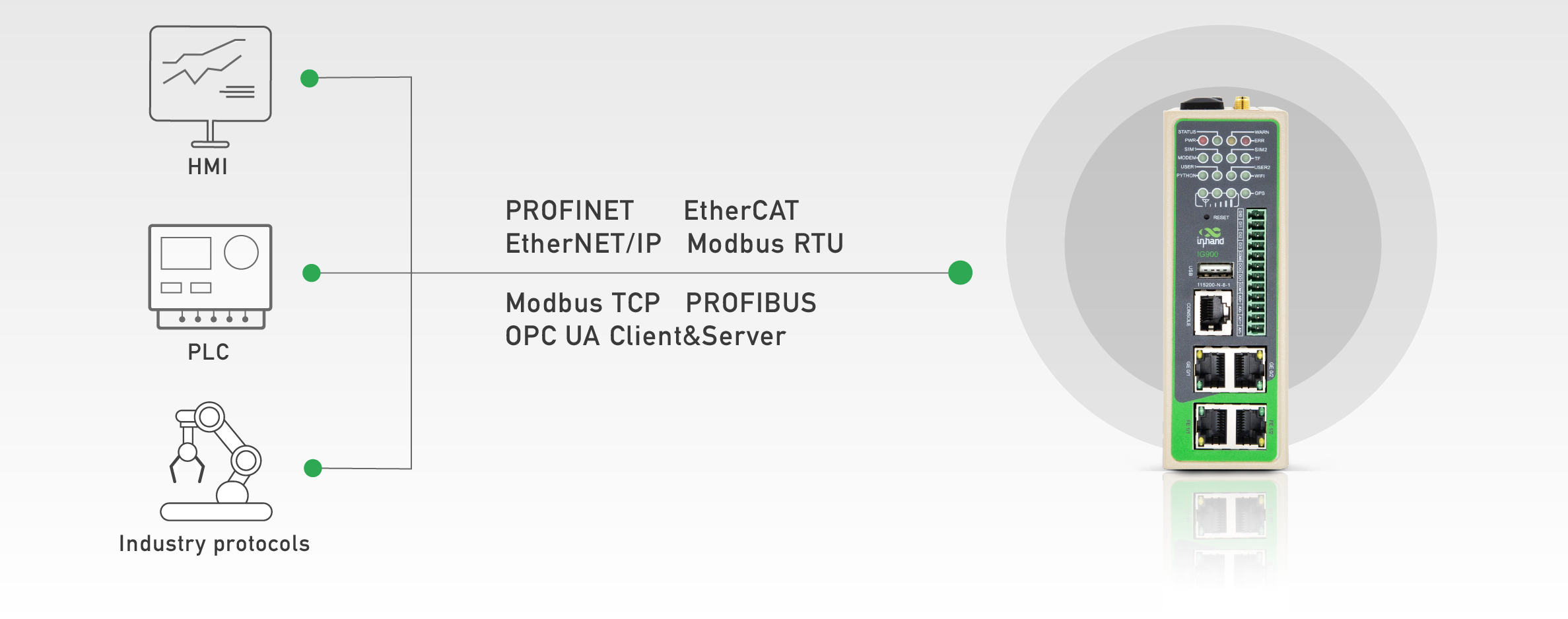

Compatible with Multiple Industrial Protocols

To adapt to the broadly diversified IoT industry, InGateway900 is compatible with a rich selection of mainstream industrial real-time Ethernet protocols and fieldbuses.

Modbus TCP, PPP +CC-LINK, ErhernetNET/IP, Modbus RTU, OPC UA Server

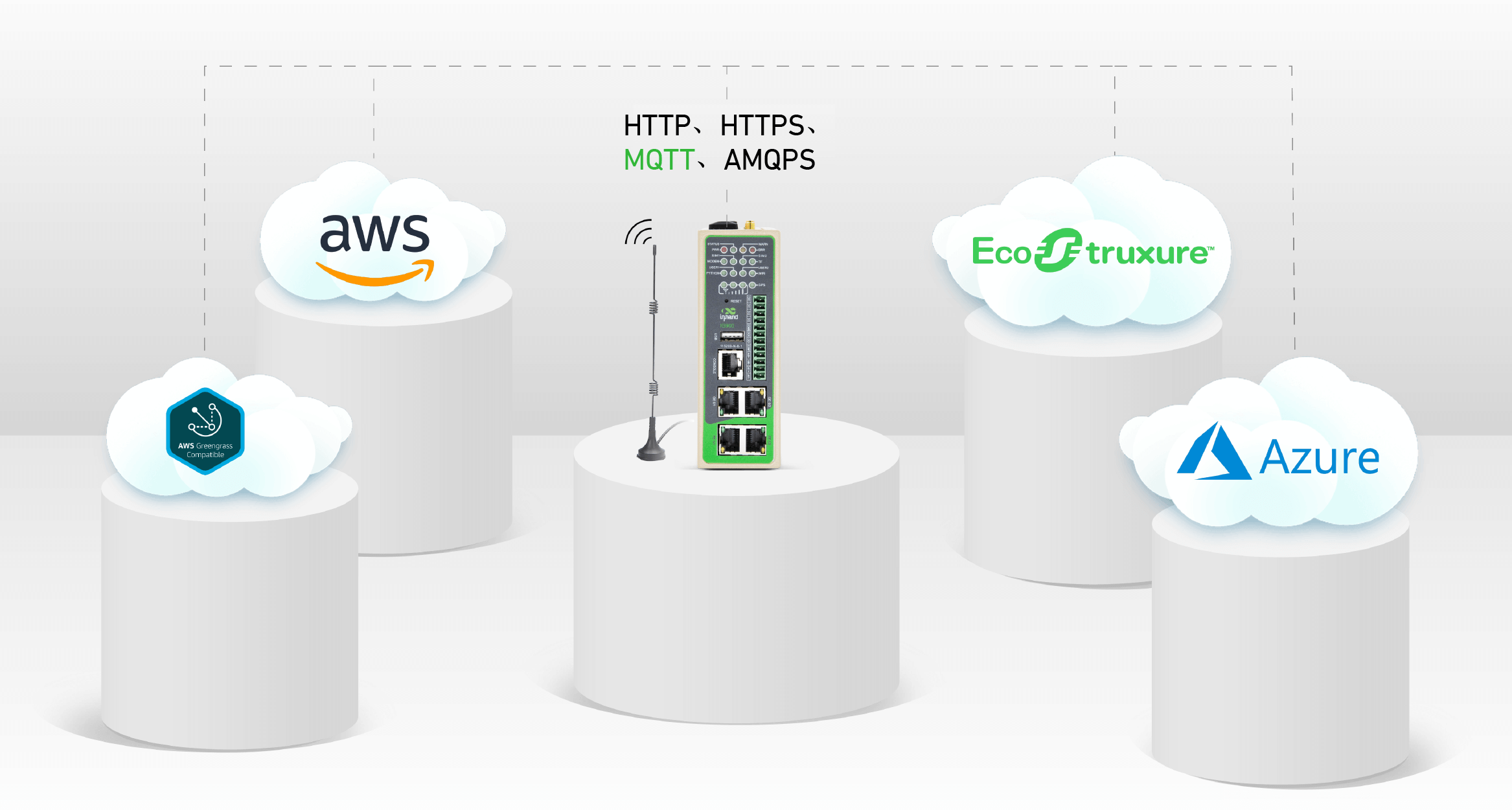

A Cooperative Ecosystem

InHand has become a partner of Microsoft and Amazon, providing users with multiple industrial cloud solutions. The edge gateway supports Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform.

Microsoft AZURE, Amazon AWS Greengrass and Thingsboard cloud platform

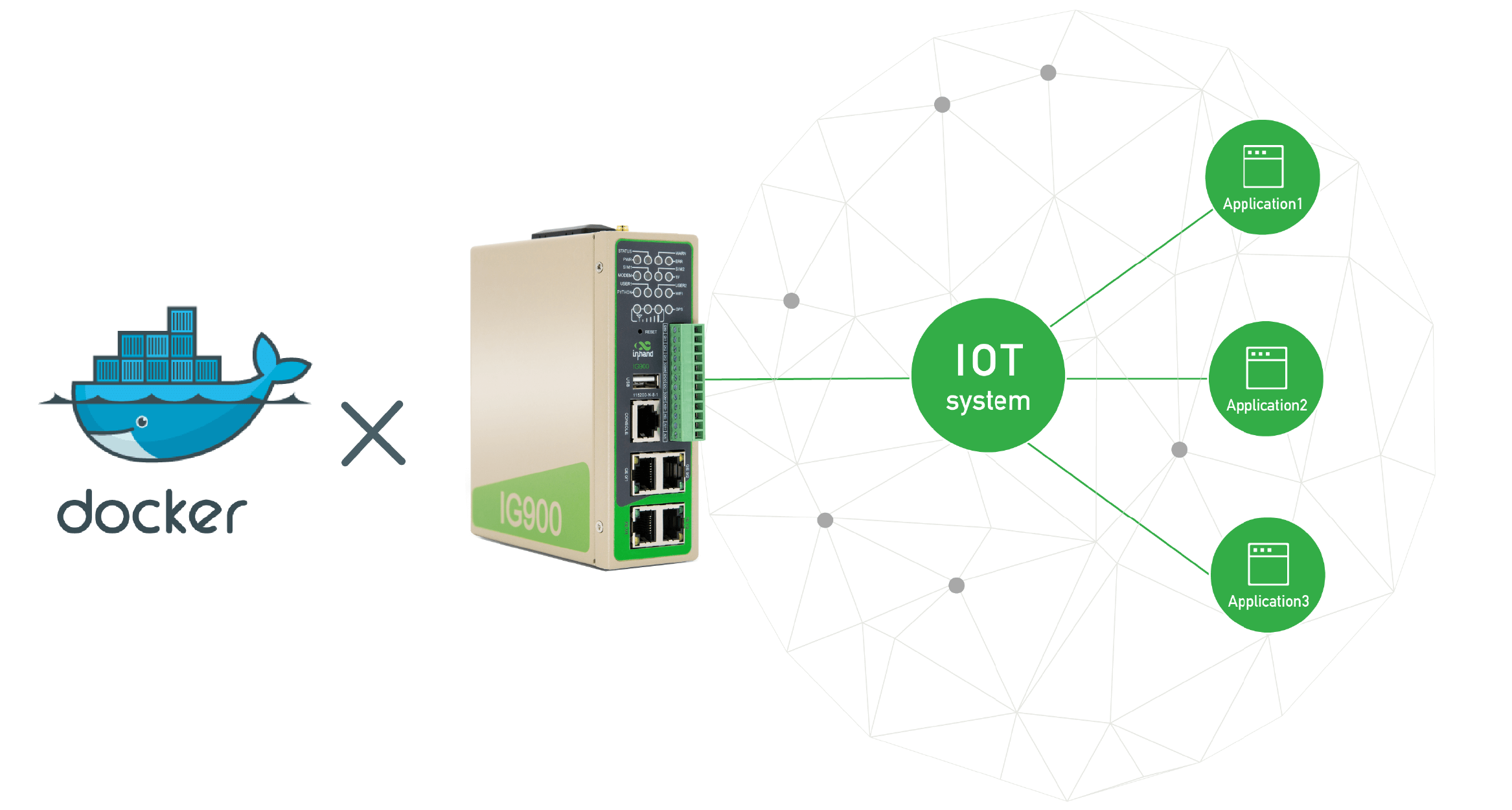

Docker

Docker Container as a standard feature that can build and operate a scalable and seamless IoT system. It also can develop, release and execute cross-platform applications regardless of the edge or the cloud side.

Docker and IOT system

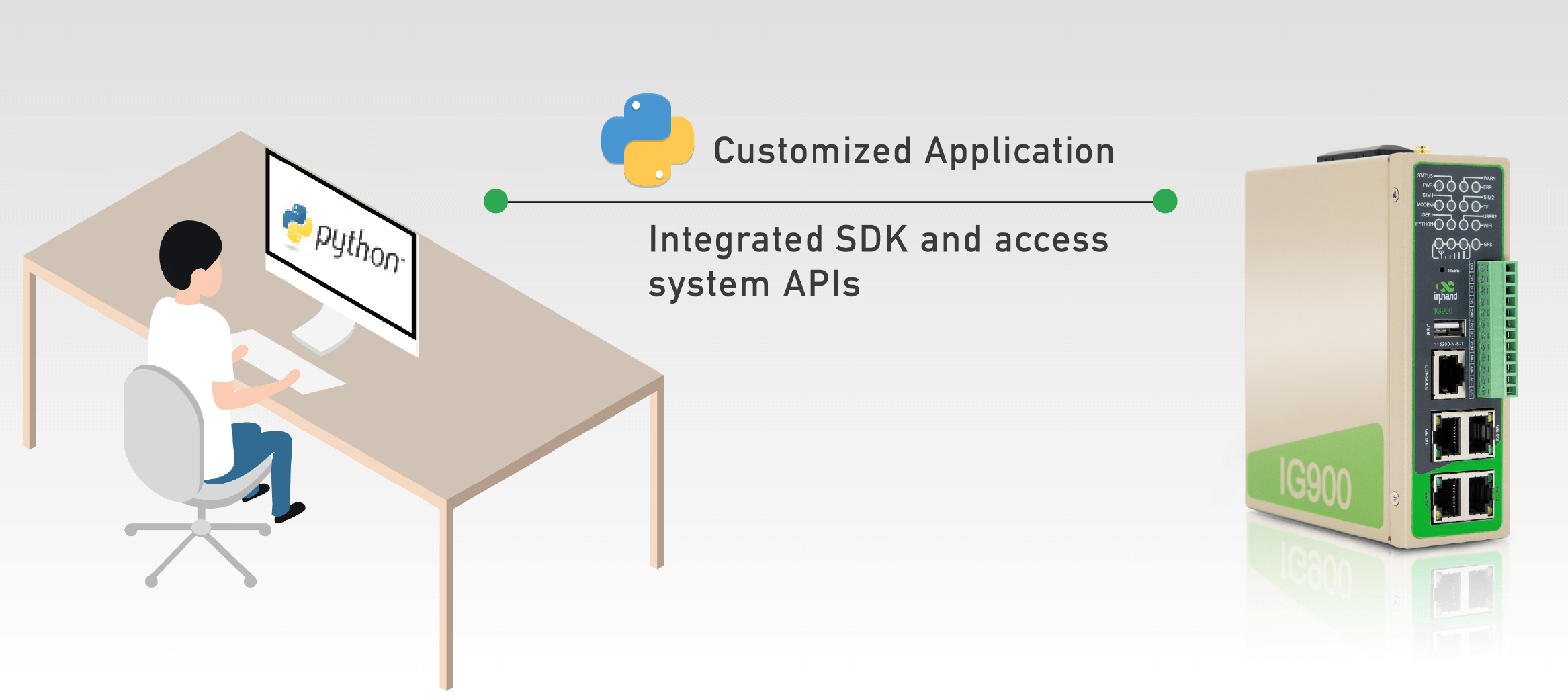

Python Custom Development Platform

Embedded with support of the Python development platform, customers may custom develop applications to meet their application requirements. While with the integrated SDK provided by InHand, customers may access the system APIs and other resources easily.

Customized Application, Integrated SDK and access system APIs

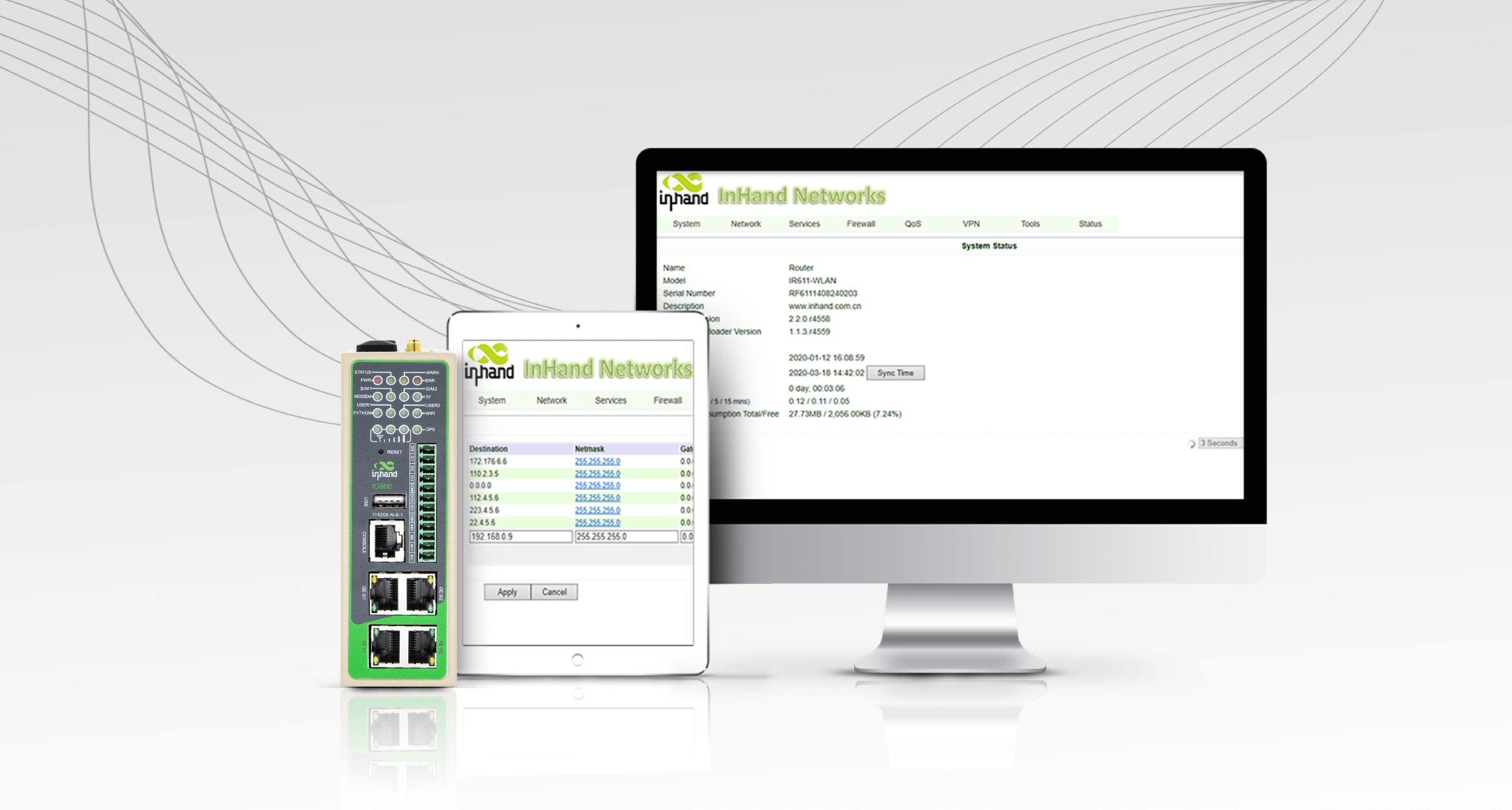

InHand Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

InGateway902 Industrial Edge Computing Gateway with Azure, AWS IoT Greengrass Qualified

Remote Centralized Management

InGateway902 is also compatible with InHand Remote Management System. This platform allows to remotely manage & monitor status and parameters of all routers & gateways by InHand Networks

  • • Remotely manage your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping management and access control
  • • Monitor device status and data usage in real time
  • • Easily track your devices in a map view
Device Manager - Join for free

Product Detail

IG902-H
IG902-B

Packaging List

IG902, WiFi antenna*2, LTE 4G antenna, Power Supply, Ethernet Cable

Certification

CE, FC, AT&T, VERIZON, PTCRB
Network type Model (region) Band
LTE CAT-4 IG902-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-6 IG902-FS39 (North America) LTE-FDD CAT 4 Band 2/4/5/13/17
UMTS(DC-HSPA+) Band2/5
(For North America, Verizon, AT&T )

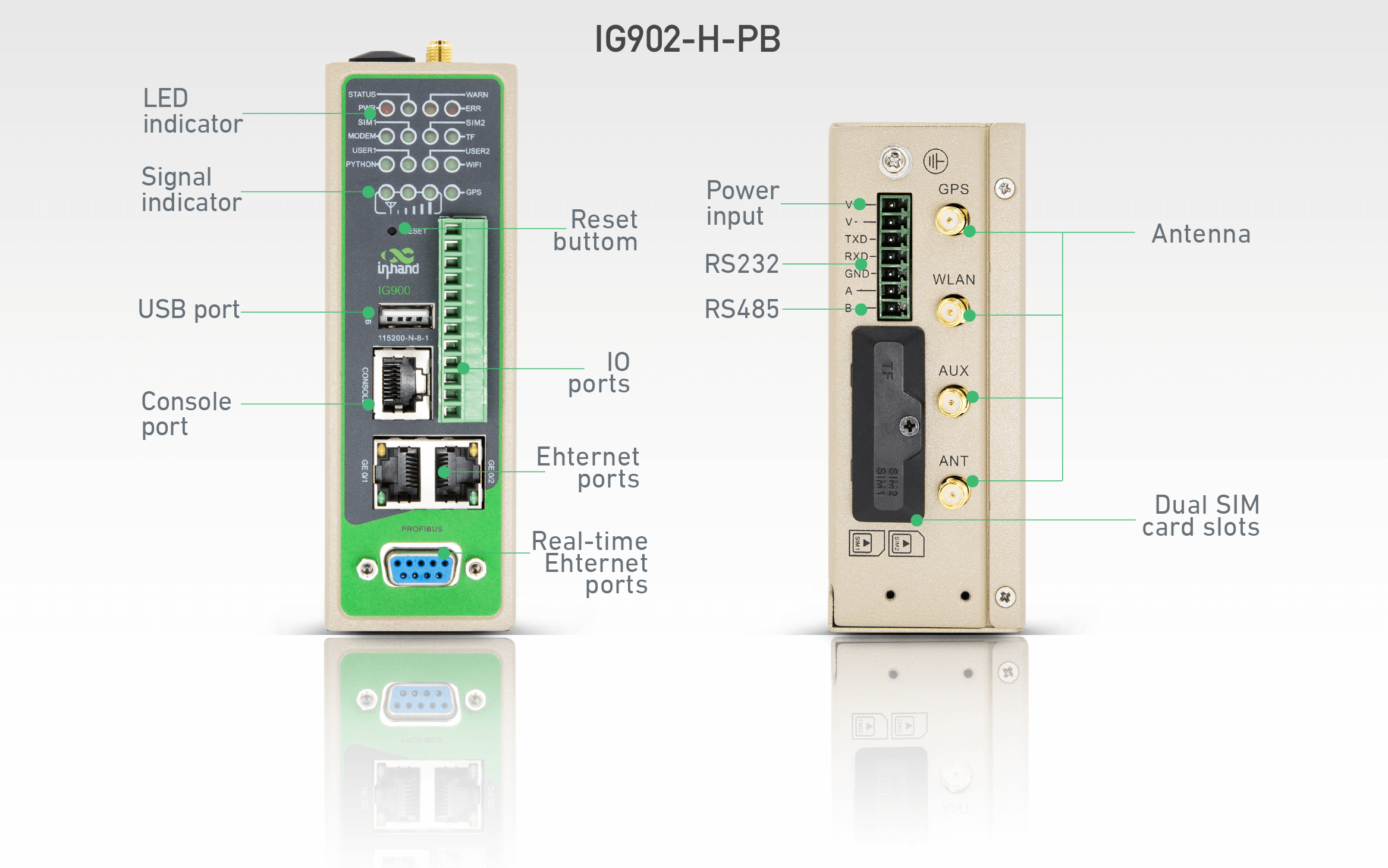

IG902 Hardware Specifications
item IG902-B
(Basic Version)
IG902-H
(High-config Version)
Hardware Platform
CPU ARM Cortex-A8 1GHz
RAM 512MB DDR3 1GB DDR3
FLASH 8GB eMMC
Interface
Real-time Ethernet
Protocol Port
No 2 * 100Mbps real-time industrial Ethernet  protocol ports
I/O No 4-channel digital input DI
Status“1":+10~+30V
Status“0”:0~+3V

2-channel digital output DO
Max load 5A@30VDC or 250VAC

2-channel analog input AI
Current signal supported:0-20mA, 4-20mA
Voltage signal supported: 0-5VDC, 0-10VDC
Choose 1 out of the above 4 ranges
Ethernet Port 2*10/100/1000Mbps fast Ethernet ports, WAN/LAN or 2*LAN
Industrial Serial Port RS-232 x 1, RS-485 x 1;
RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND
ESD protection: 15KV
Console Port RS-232 x 1, RJ-45 interface
Wi-Fi (Optional) 2.4G or 5G (802.11 ac/a/b/g/n)
USB 1 x USB 2.0 port
Reset Button Pinhole button
SIM Card Slot 1.8V/3V, drawer-type slot x 2
MicroSD Expansion Up to 128GB
GPS (Optional) Satellite positioning GPS: SMA x 1
Mechanical Feature
Installation DIN-rail, wall mounting
Protection Rating IP30
Housing Metallic structure
Cooling Fan-less cooling
Power Supply
Power Input DC12-48V
Polarity Reverse & Overcurrent Protection Supported
Power Terminal Unpluggable industrial terminal connection
Ambient Temperature and Humidity
Storage Temperature -40 ~ 85℃
Working Temperature -25 ~ 75℃
Ambient Humidity 5 ~ 95% (non-condensing)
Others
Real-time Clock (Optional) Embedded real-time clock (RTC), powered by super capacitor
Indicators
LED POWER, STATUS, WARN, ERROR, MODEM, SIM1, SIM2, TF (card), PYTHON, USER1, USER2, WIFI, GPS, SIGNAL
EMC Index
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulsed Electric Field EN61000-4-4, level 3
Surge EN61000-4-5,level 3
Conducted Disturbance EN61000-4-6, level 3
Power Frequency Magnetic Field EN61000-4-8, horizontal / vertical 400A/m (>level 3)
Shockwave Immunity EN61000-4-12, level 3
Physical Feature
Shockproof IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Certification
CE, FCC, PTCRB, Verizon Wireless, AT&T
IG902 Software Specifications
item IG902
Network Interconnection
Network Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
LAN Protocol ARP, EtherNet
Network Type Please refer to the Ordering Guide
Network Protocol
IP Application Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
IP Routing Static Routing
Network Security
Firewalls Stateful packet inspection (SPI), anti-DoS attack
Multicast/Ping filter, Access Control List (ACL)
NAT, PAT, DMZ, port mapping, virtual server
User Levels Multi-level user authorization
AAA
Local authentication, Radius, Tacacs+, LDAP
Data Security IPsec VPN, OPENVPN, CA (may auto apply)
Reliability
Backup VRRP, interface backup, dual-SIM backup
Link Detection Heartbeat packet detection, auto-recovery of disconnection
Embedded Watchdog Device self-diagnosing, auto-recovery from operation faults
WLAN (Optional)
Standard IEEE 802.11ac/a/b/g/n
Security Open System, Shared Key, WPA/WPA2 certification, WEP/TKIP/AES encryption
Mode AP, Client modes
Network Management
Configuration Method Local or remote HTTP, HTTPS, Telnet, SSH
Upgrade Method Local or remote WEB, DM, TFTP, FTP, SFTP server
Log
Local or remote log export, power-down log saving
SMS
Status enquiry, configuration, and reboot
Dial On-demand Activated by data, activated by SMS, scheduled online/offline
Network Management SNMP v1/v2c/v3, InHand MIBs
InHand DM  Centralized management, batch configuration
Network Diagnostics Ping, Traceroute, Sniffer (network packet capture tool)
Development Platform
Development Platforms Python customization development; Microsoft Azure, Amazon AWS, Schneider EcoStruxure, InHand DN cloud platform
Industrial Protocol
Protocols (Basic Version) Modbus RTU, Modbus TCP, OPC UA Client(Coming soon), OPC UA Server, PPI, CC-LINK
Protocols (High-config Version) Modbus RTU, Modbus TCP, OPC UA Client(Coming soon), OPC UA Server, PPI, CC-LINK, EtherNet/IP
