InRouter912 | Industrial 4G WiFi Router IR912 with Certificate of CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, RCM for Mission Critical IIoT Applications, RS232, RJ45 Serial Port

InHand Networks SKU: IR912L-FQ58
filler
Price:
$399
  • Description
  • Operation Band
  • Specifications
  • Download
  • Reviews

InHand Industrial Router - Reliable, Secure, Large-Scale M2M, IoT Deployment

Featuring an industrial design, Wifi, GPS, 4G LTE & 3G connectivity with intelligent software functions, the InHand InRouter912 is a full-featured industrial IoT router developed for mission critical IoT applications. With dual SIM, VRRP and VPN, the InRouter912 provides best-in-class reliability and security protection for remote devices, helping enterprise customers to achieve efficient large-scale deployment and management.

LTE Cat4, GPS location, Dual SIM, Dual serial interfaces, I/O remote control, Device Manager platform

InHand Industrial 4G, WiFi Router

The industrial router with EMC level 4, 3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce the fault rate.

-25℃~70℃, IP30 protection level, lighting resistant, EMI resistant

InHand Networks Comprehensive Security

The Industrial WiFi Router provides comprehensive security protection for sensitive business data, including secure VPN transmission, firewalls against network attacks and multi-level authorization access control mechanisms.

Network, data transmission, access security

Reliable and Uninterrupted Network Connection Industrial WiFi, 4G Router

With the support of dual SIM, redundant link backup, and VRRP hot standby, the industrial WiFi routers ensures continuous connection by the seamless transition to a backup link when the main link fails.

Continuous connection by the seamless transition to a backup link

See your Router location at a glance with Supporting GPS

GPS - easily track location

InHand Easy and Fast Large-Scale VPN Network Deployment

The InRouter915 is built with intelligent software functions to enable fast deployment of large-scale networks. RIP, and OSPF dynamic routing that enables efficient scalable network deployment with dynamic learning and computing of network routes. DMVPN supports the fast building of large mesh VPN networks.

Mesh VPN

InHand Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

setup and manage quickly & easily

Remote Centralized Management

InRouter912 industrial WiFi router is also compatible with InHand Remote Management System. This platform offers remote management, allows the status and parameters of all routers & gateways for solving IoT solutions conveniently.

join for free
  • • Remote management for your distributed InHand industrial router & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping remote management and access control
  • • Monitor IoT devices status and data usage in real-time
  • • Easily track your IoT devices in a map view
join for free

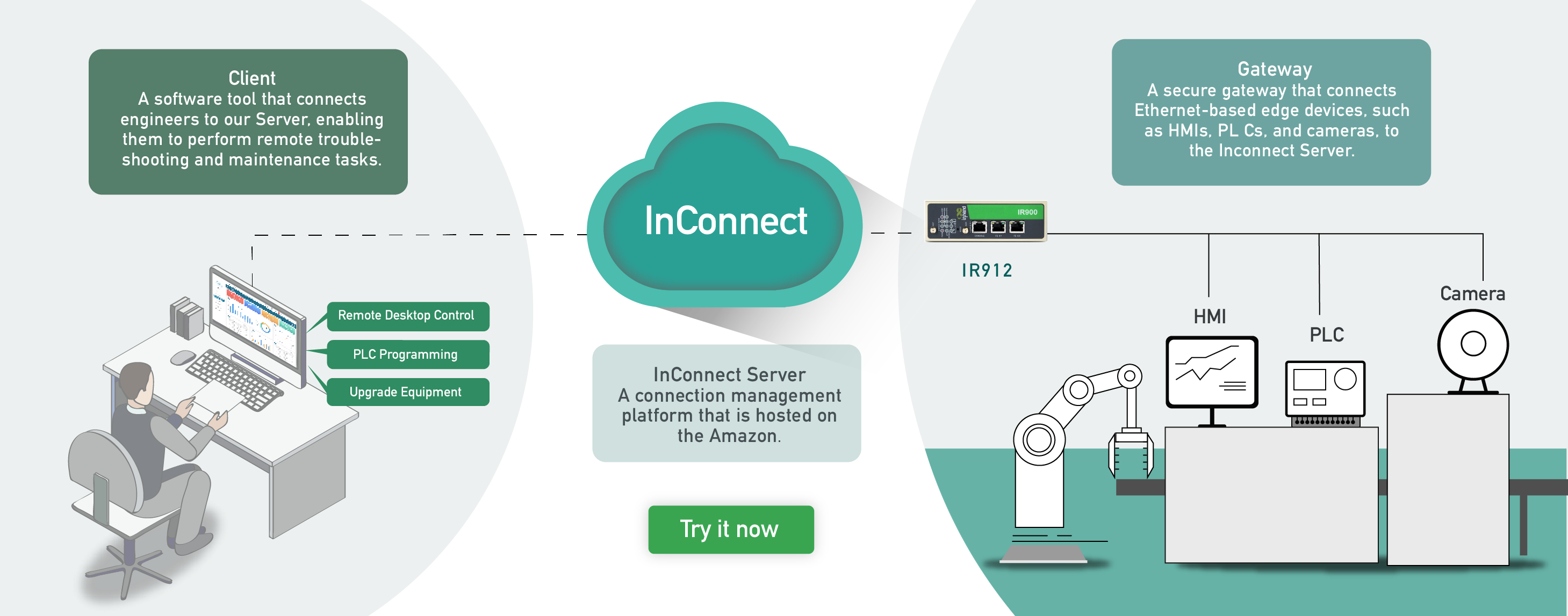

Fast and Easy Remote Access to IoT Devices

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

InConnect platform - try it now
try it now

Product Compare

InRouter
Model IR912 IR302 IR305 IR305-S IR615-S IR915
Cellular network CAT 4/3 CAT 4/1 CAT 6/4/1 CAT 6/4/1 CAT 6/4/1 CAT 4/3
Wi-Fi (Optional) - 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n)
VLAN ✔ - - ✔ ✔ ✔
Wi-Fi Antenna - 1 2 2 2 2
Ethernet Port 1*10/100 WAN
1*10/100 LAN		 1*10/100 WAN/LAN
1*10/100 LAN		 1*10/100 WAN/LAN
4 *10/100 LAN		 1*10/100 WAN/LAN
4 *10/100 LAN		 1*10/100 WAN
4*10/100 LAN		 1*10/100 WAN
4 *10/100 LAN
Serial Port 1*RS232 - - 1*RS232,1*RS485 1*RS232/RS485 1*RS232,1*RS485
I/O Port - - 4*DI or DO - - 1*DI, 1 relay output
EMC Level Level 4 Level 2 Level 3 Level 3 Level 3 Level 4

Applications

Product Detail

IR900 front IR900 with 2 SIM slots, power input

Packaging List

device, ethernet cable*2, LTE 4G antenna, power supply

Certification

IR900 certifications

Network type Model (region) Band
LTE CAT-3 or 4 IR912-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR912-FS18 (North America, AT&T) LTE-FDD Band 2/4/5/17
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR912-FS28 (North America, Verizon Wireless) LTE-FDD Band 2/4/5/13
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz



IR912 Hardware Specifications
Hardware
CPU ARM Cortex-A8 600MHz
Memory 128MB
FLASH 128MB
Interface
Ethernet Port 2* 10/100Mbps, WAN/LAN
Serial Port N/A
Console RS-232 x1, RJ45 Serial Port
SIM Holder 2 Push-type SIM Card Holders
Reset Pinhole Reset Button
Ground Terminal Supported
Wi-Fi N/A
Antenna 3G/4G: SMA Female Connector x 2
DI/DO N/A
GPS (optional) N/A
Mechanical
Installation Din-ail, wall mount
IP Level IP30
Cooling Fanless
Housing Metal
Dimensions 132.6 x 112.8 x 45mm
Clock Embedded RTC
Weight 565
Power
Power Supply DC12-48V
Interface 2-pin 5.08mm industrial
Standby 100mA@24V(HSPA+)
Working 150mA@24V(HSPA+)
Peak 180mA@24V(HSPA+)
Wi-Fi Transmit Power
Transmit Power 802.11b:13dBm +/-2dBm(11Mbps)
802.11g:13dBm +/-2dBm(54Mbps)
802.11n@2.4GHz:13dBm +/-2dBm(HT20 MCS7)
802.11n@2.4GHz:13dBm +/-2dBm(HT40 MCS7)
Environment
Storage -40 ~ 85℃
Working -25 ~ 70℃
Humidity 5 ~ 95% (non-condensing)
Indicators
LED POWER, STATUS, WARN, ERROR, MODEM, SIM, VPN, Signal
EMC
ESD EN61000-4-2, level 4
RFI EN61000-4-3, level 4
EFT EN61000-4-4, level 4
Surge EN61000-4-5, level 3
Conducted Disturbances EN61000-4-6, level 4
Oscillatory Wave EN61000-4-12,level 4
Frequency Magnetic Field EN61000-4-8, horizontal/vertical 400A/m (>level 4)
Mechanical
Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Approvals and Compliance
CE, FCC, UL, PTCRB, CCC, Verizon, AT&T, E-MARK, IC, IMDA, RCM
IR912 Software Specifications
Network Connection
Operator Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
Cellular LTE, WCDMA (HSPA+), EDGE, GPRS
LAN ARP, Ethernet
WAN Static IP, DHCP, PPPoE
Protocol
IP Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, Dynamic DNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
IP Routing Static Routing, RIP, OSPF, IGMP Proxy, BGP V4
Security
Firewall Stateful Packet Inspection (SPI), Anti-DoS Attack
Filtering Multicast/Ping package, Access Control List (ACL)
NAT, PAT, DMZ, Port Mapping, Virtual Server
Multi-Level Authority Two-level authority: Full Authority and Read-Only User
AAA Local Authentication, Radius, TACACS+, LDAP
CA Certificate PEM, PKCS12, SCEP
Data Security IPsec VPN, L2TP, PPTP, GRE, OPENVPN, DMVPN, CA
Others Anti-ARP, DMZ, MAC Filtering
Reliability
Link Backup Floating Route, WAN Link Backup
Auto-Recover Various Heartbeat Package, Automatic Recover from Failure
Watchdog Self-diagnostic, Automatic Recover from Failure
GPS
Support GPS Supports VLAN and Port Mirroring
QoS
Bandwidth Limiting maximum bandwidth
Data Priority Support Protocol-based data control
WLAN
Standard IEEE 802.11b/g/n
Security WPA/WPA2, WPA-PSK, Support Open System, Shared KeyWEP/TKIP/AES Encryption
Mode Supports both AP and Client Mode
Intelligence
DTU TCP, UDP transparent transmission, TCP Server, DC
Bridge 101-104, Modbus RTU -Modbus TCP
Intelligence
Configuration Configured via HTPP, HTTPS, Serial Port, Telnet, SSH
Firmware Upgrade WEB, Serial Port, TFTP, FTP, SFTP server, Device Manager
Log Local sys log, remote lot, export log via Serial Port
Important Log Backup in Flash Memory
SMS
 SMS to Inquiry Status, Reboot
On-Demand Dial Up Activated by data, Activated by SMS, Scheduled Online/Offline
SNMP SNMP v1/v2c/v3, InHand MIBs
DM Remote management via InHand Device Manager (DM)
AAA Local/Radius/TACACS+/LDAP
Multilevel Authority Multiple Levels of User Authority
Diagnostic Ping, Traceroute, Sniffer
