InHand Industrial LTE 4G Cellular Router with WiFi and Dual SIM

InRouter615-S (also IR615-S) is a professional industrial 4G wireless router with fast connection up to LTE CAT 6. The industrial router is equipped with 5 Ethernet ports, serial port RS-232/485, and WiFi interface. Quick to deploy, easy to manage and flexible for applications across the most demanding market sectors. The industrial router will ensure stable connectivity with Dual SIM 4G failover and 3G, 2G fallback.

InRouter615-S Industrial WiFi Router Dual SIM 4G overview

Fully Industrial Router

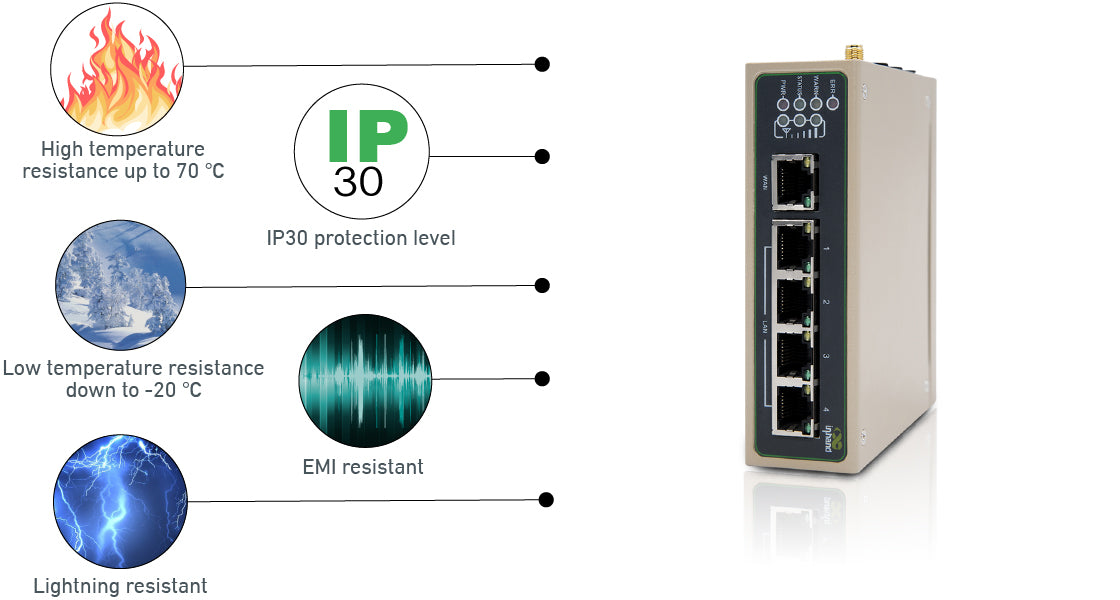

The industrial router, IR615, with EMC level 3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, reduces fault rate effectively. Panel mounting and DIN-Rail mounting are available for various deployment scenarios.

Industrial router for harsh environment

Comprehensive Security

The IR615 is a VPN router with security protection, including encrypted data transmission, firewall protections and multi-level authorization control.

industrial VPN router with strong security

Continuity and Reliability Networks

With Dual SIM 4G failover and link backup, IR615 can switch automatically to secondary GSM operator if the main mobile data connectivity is lost. It provides a reliable network connection for users.

WAN and Dual SIM 4G LTE backup link

Easy-to-Use Web Management

The user-friendly web interface will help you with the configuration and management of IR615 more efficiently.

manage devices remotely

Device Manager-Free Remote Centralized Management Platform

The R615 is also compatible with the free centralized cloud management platform, InHand Device Manager. This platform offers remote management, allows the status and parameters for solving IoT solutions conveniently.

Join for free
  • • Remote management for your distributed InHand industrial WiFi router
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping remote management and access control
  • • Monitor IoT devices status and data usage in real-time
  • • Easily track your IoT devices in a map view
Remote Centralized Management

InConnect Service-Easy to Access to Downstream Devices

Compatible with InHand cloud-based platform, the InConnect Service, the IR615 helps engineers to connect the downstream devices easily and securely through secure tunnels.

InConnect-Try it now
Remotely Manage IoT Devices by InConnect

Product Compare

InRouter
Model IR301 IR302 IR305 IR305-S IR615-S IR915 CR202 IR315
Cellular network CAT M CAT 4/1 CAT 6/4/1 CAT 6/4/1 CAT 6/4/1 CAT 4/3 CAT 6 5G/CAT 4/CAT 1
Wi-Fi (Optional) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n)
VLAN - - ✔ ✔ ✔ ✔ - ✔
Wi-Fi Antenna 1 1 2 2 2 2 2
Ethernet Port 1*10/100 WAN/LAN 1*10/100 LAN/WAN
1*10/100 LAN 		1*10/100 WAN/LAN
4 *10/100 LAN 		1*10/100 WAN/LAN
4 *10/100 LAN 		1*10/100 WAN
4*10/100 LAN 		1*10/100 WAN
4 *10/100 LAN 		1*10/100 WAN/LAN 1*10/100 WAN/LAN
4 *10/100 LAN
Serial Port 1*RS232/RS485 - - 1*RS232, 1*RS485 1*RS232/RS485 1*RS232, 1*RS485 - 1*RS232, 1*RS485（optional）
I/O Port - - 4*DI or DO（optional） - - 1*DI, 1 relay output -
EMC Level Level 2 Level 2 Level 3 Level 3 Level 3 Level 4 - Level 3
Battery Level 2 Level 2 - - - 5000 Amh -
Installation Din-rail/Wall mounting Din-rail/Wall mounting Panel mounting, rail mounting Panel mounting, rail mounting Din-rail/Wall mounting Din-rail/Wall mounting - Din-rail

Applications

Product Detail

InRouter615-S Industrial WiFi Router's front pannel InRouter615-S Industrial cellular Router's back panel

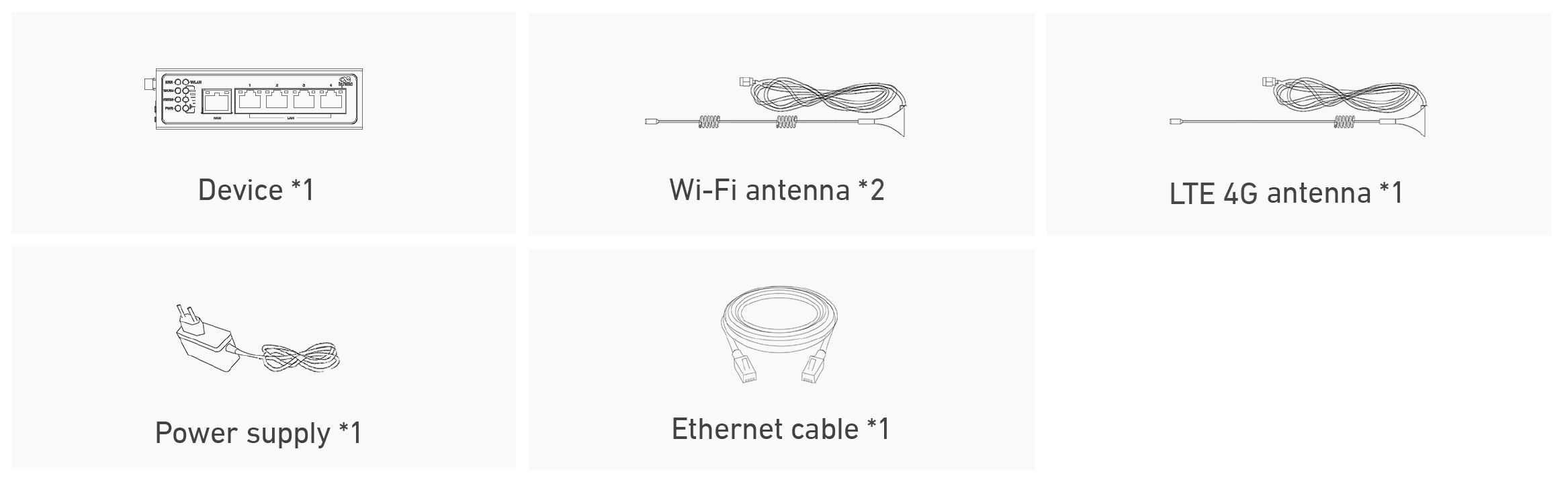

Packaging List

InRouter615-S Industrial WiFi Router: device, wifi antenna, LTE 4G antenna, power supply, Ethernet cable

Certifications

InRouter615-S Industrial WiFi Router certifications
Network type Model (region) Band
LTE CAT-3,4 or 6 IR615-S-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band 1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR615-S-FQ88 (Japan) LTE-FDD CAT 4 Band 1/3/8/18/19/26
UMTS(DC-HSPA+) Band 1/3/8
EDGE/GPRS/GSM 900/1800HHz
IR615-S-FQ78 (Australia & South America)

LTE-FDD Band 1/2/3/4/5/7/8/28

LTE-TDD Band 40

WCDMA Band 1/2/5/8 GSM Band 2/3/5/8
IR615-S-FS18 (North America, AT&T) LTE-FDD CAT 3    Band2/4/5/17
UMTS(DC-HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR615-S-FS28 (North America, Verizon Wireless) LTE-FDD CAT3  Band 4/13
UMTS(DC-HSPA+) Band 2/4/5
EDGE/GPRS/GSM850/900/1800/1900MHz
IR615-S-FS39  (North America, Verizon, AT&T) LTE-FDD CAT 6 Band 2/4/5/12/13/17/29
UMTS(HSPA+) Band2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-1
IR615-S-FB53 (EMEA) LTE-FDD CAT 1 Band 3/7/20
EDGE/GPRS/GSM 900/1800/MHz
IR615-S-FB13  (North America, AT&T) LTE-FDD CAT 1 Band2/4/12
IR615-S-FB23 ( North America, Verizon Wireless) LTE-FDD CAT 1 Band4/13
LTE CAT-M1/NB IR615-FB02 (Global) Band1/2/3/4/5/8/12/13/17/18/19/20/25/26/28 (Band 39 in M1 only)
IR615-S-EN00 No cellular module
3G

IR615-S-U(PS08/30108)

DS: Dual SIM

NA: Single SIM

(EMEA)

UMTS(HSPA+) Band 1/2/5/8(850/900/1900/2100MHz）

EDGE/GPRS/GSM 850/900/1800/1900

Except IR615-S-U has both single SIM and dual SIM part numbers, others are dual SIM.

InRouter615-S Hardware Specifications
Interface
Ethernet Port 1*10/100Mbps fast Ethernet WAN port
4*10/100Mbps fast Ethernet LAN ports
1.5KV network isolation protection
Power Supply DC9-26V, 36V expandable
Industrial Serial Port RS-232/485 x 1 (DB9)
ESD protection: 15KV
SIM Card Drawer-type card slot x 1
Part models: Drawer-type card slot x 2
Reset Pinhole reset button
Antenna Connector 3G/4G: SMA x 1
WLAN: RP-SMA x 2
Ground Terminal Has ground terminal
Mechanical Specs
Dimensions (mm) 127x108.2x35mm
Weight (g) 440g
Installation Method DIN-Rail Optional: Lugs/wall mounting
Protection Rating IP30
Housing Metal housing
Cooling Fanless
Power Rate
Working Power 150mA-320mA@12V
Standby Power 120mA-200mA@12V
Peak Power 320mA@12.0V
WiFi Transmit Power
Transmit Power 802.11b:16dBm+/-2dBm(11Mbps)
802.11g:16dBm+/-2dBm(54Mbps)
802.11n@2.4GHz: 16dBm+/-2dBm(HT20MCS7)
802.11n@2.4GHz:16dBm+/-2dBm(HT40MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Indicator
LED POWER, STATUS, WARN, ERROR, WLAN, LINK, signal indicator
EMC Index
Static EN61000-4-2, level 3
Radiation Electric Field EN61000-4-3, level 3
Pulsed Electric Field EN61000-4-4, level 3
Surge EN61000-4-5, level 3
Conducted Disturbance Immunity EN61000-4-6, level 3
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal / vertical 400A/m (>level 3)
Shock Wave Resistance EN61000-4-12, level 3
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE, FCC, PTCRB, IC, IMDA, RCM, Class I Division 2, Verizon, AT&T, T-Mobile, Sprint,  E-Mark,  JATE/TELEC
InRouter615-S Software Specifications
Network Connection
Network Access APN, VPDN, supports dual-APN access
Access Authentication CHAP/PAP authentication
LAN Protocol ARP, Ethernet
WAN Protocol Static IP, DHCP, PPPoE, PPP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/FDD LTE
IP Application Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, IPPT
IP Routing Static routing, OSPF
NAT Support network
address translation
Network Security
Firewall Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security IPsec VPN /L2TP/PPTP/GRE/OPEN VPN/CA digital certificate
Reliability
Backup Dual-SIM mutual backup, VRRP hot backup, link backup
Link detection Send heartbeat packets, auto redial when disconnected
Embedded Watchdog Device operation self-detection, auto recover from malfunctions
WLAN (Optional)
Protocol & Standard IEEE 802.11b/g/n
Transmission Rate Up to 300Mbps
Working Mode AP and STA modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
Transmission Distance 100m (actual transmission distance depends on site environment)
Intelligence
Integrated DTU Functions TCP, UDP transparent transmission mode, TCP Server mode;
Supports conversion of Modbus RTU to Modbus TCP bridge;
Supports DCUDP, DCTCP mode;
Support for up to 15 data centers
Network Management
QoS Management Supports bandwidth limit, IP speed limit
Configuration Method Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query, configuration, restart
Dial-on-demand Dial-on-demand, data / SMS activation
Network Management Supports InHand DeviceManager, batch management
Simple Network Management SNMP v1/v2c/v3，support SNMP TRAP
Traffic Management Supports data traffic threshold setting, supports traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
