ISE5008D Switch - Industrial Grade Unmanaged Switch
ISE5008D Unmanaged Switch with 8*10/100/1000 Base-T(X) RJ45 ports, is designed to meet power, size, weight and environmental tolerance requirements for industrial applications. It combines high-standard wide temperature and voltage design, enterprise-level wire-speed forwarding performance, sturdy housing, industrial circuit protections and other industrial-grade features. Plug and play to meet the needs of harsh industrial environments.
Product Highlights
ISE5008D Specifications | |||
Input Voltage |
9.6~60 VDC & 18~30 VAC, Redundant dual input |
Operating Temperature | -40℃~75℃ |
Housing Protection | IP30; Fanless Cooling |
Certifications | CE, FCC, UL |
ESD | 8KV~15KV | Delay in Forwarding | <10us |
Switching Bandwidth | 16Gbps | MAC Address Table | 4k |
Forwarding | 1.488M | Packet Buffer | 1.5Mb |
MTBF | 35 Years | Power Consumption | 5W |
Lightning Protection
InHand ISE5008D provides high-quality industrial protection with wide operating temperature, -40℃~+75℃ against harsh weather like thunderstorms.
Industrial Grade Chip
ISE5008D uses industrial-grade chips to adapt to harsh environments. It has the advantages of fast transmission speed, stable transmission and low power consumption.
Compatible with Major Brands in the Market
Industrial Quality
ISE5008D switch is guaranteed with a 3-year warranty by InHand Networks. You can use it with confidence because of the FCC, UL and CE certifications.
Easy Installation

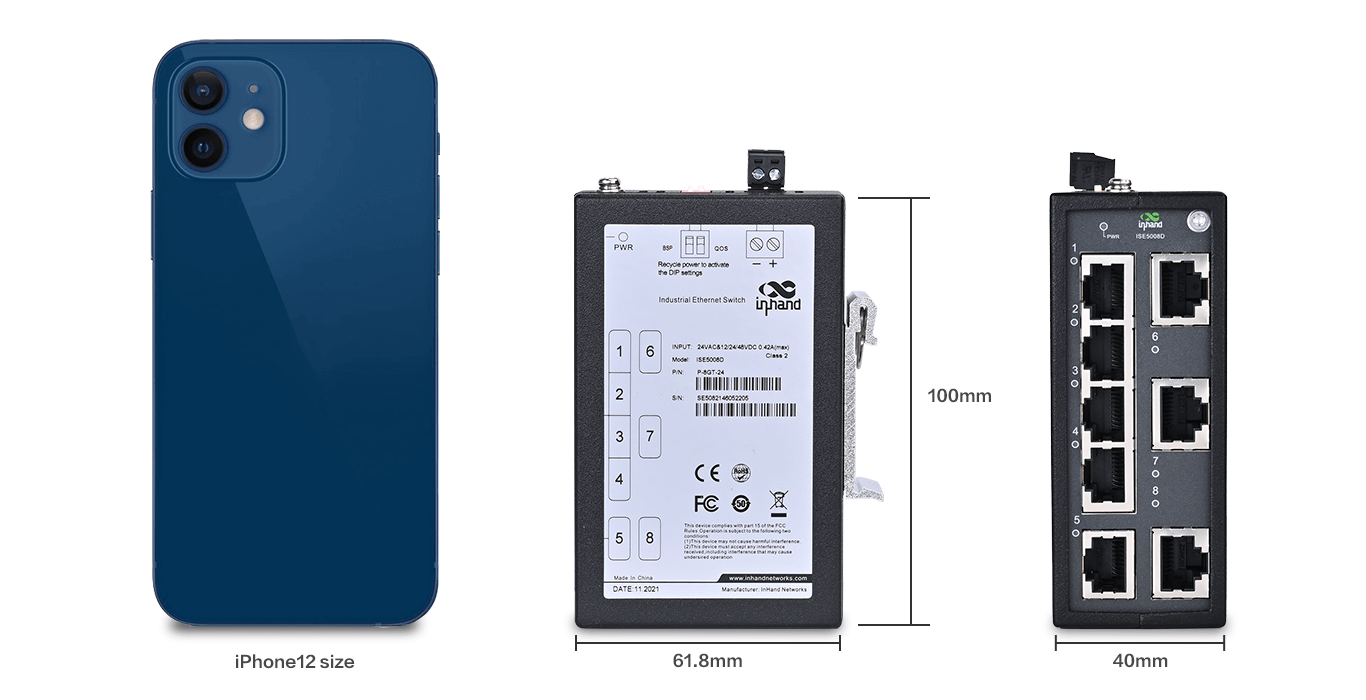

Panel mounting and DIN-Rail mounting are available for various deployment scenarios. Metal casing with corrosion-proof coating, durable and corrosion.
Product Compare
Unmanagement Switches | |||||||
Model | ISE2003D-O-M3-2T-SC-24 | ISE2003D-O-S203-2T-SC-24 | ISE2005D-O-5T-24 | ISE2008D-O-8T-24 | ISE2016D-O-16T-24 | ISE5005D-O-5GT-24 | ISE5008D-O-8GT-24 |
Ethernet Port | 2*10/100Base-T(X) adaptive RJ45 ports | 2*10/100Base-T(X) adaptive RJ45 ports | 5*10/100Base-T(X) adaptive RJ45 ports | 8*10/100Base-T(X) adaptive RJ45 ports | 16*10/100Base-T(X) adaptive RJ45 ports | 5*10/100/1000 Base-T(X) adaptive RJ45 ports | 8*10/100/1000 Base-T(X) adaptive RJ45 ports |
Fiber Optic | 1*100Base-FX adaptive port (single mode dual SC interface) | 1*100Base-FX adaptive port (Multi mode dual SC interface) | none | none | none | none | none |
Size | 24mm x 100mm x 61.8mm | 24mm x 100mm x 61.8mm | 24mm x 100mm x 61.8mm | 40mm x 100mm x 61.8mm | 50mm x 140mm x 110mm | 24mm x 100mm x 61.8mm | 40mm x 100mm x 61.8mm |
Switching Bandwidth | 16Gbps | 16Gbps | 16Gbps | 16Gbps | 8.8Gbps | 16Gbps | 16Gbps |
Delay In Forwarding | <10us | <10us | <10us | <10us | <10us | <10us | <10us |
MAC Address Table | 4000 | 4000 | 4000 | 4000 | 8000 | 4000 | 4000 |
