ER800 Cloud Based SD-WAN 5G Router

Save $229
InHand Networks SKU: ER805-NRQ3-WLAN
filler

Price:
$914 $1,143
Use code: INHAND-20 to save $20 on all our cellular devices and switches.

InHand 5G ER800 Series Cloud Management Based SD-WAN Router

InHand's new product EdgeRouter800 (ER800) is a cloud-based SD-WAN router with high-speed 5G and gigabit ethernet. The combination of ER800 and the InCloud Manager SaaS service will achieve a high-speed, secure network connection and one-stop centralized management service under 5G network. It aims to broaden the business possibilities of intelligent enterprise development.

Powerful Computing, Multiple Industrial Protocols, Fast Python Customisation

Interested in this product?

Get Best Quote

Product Highlights

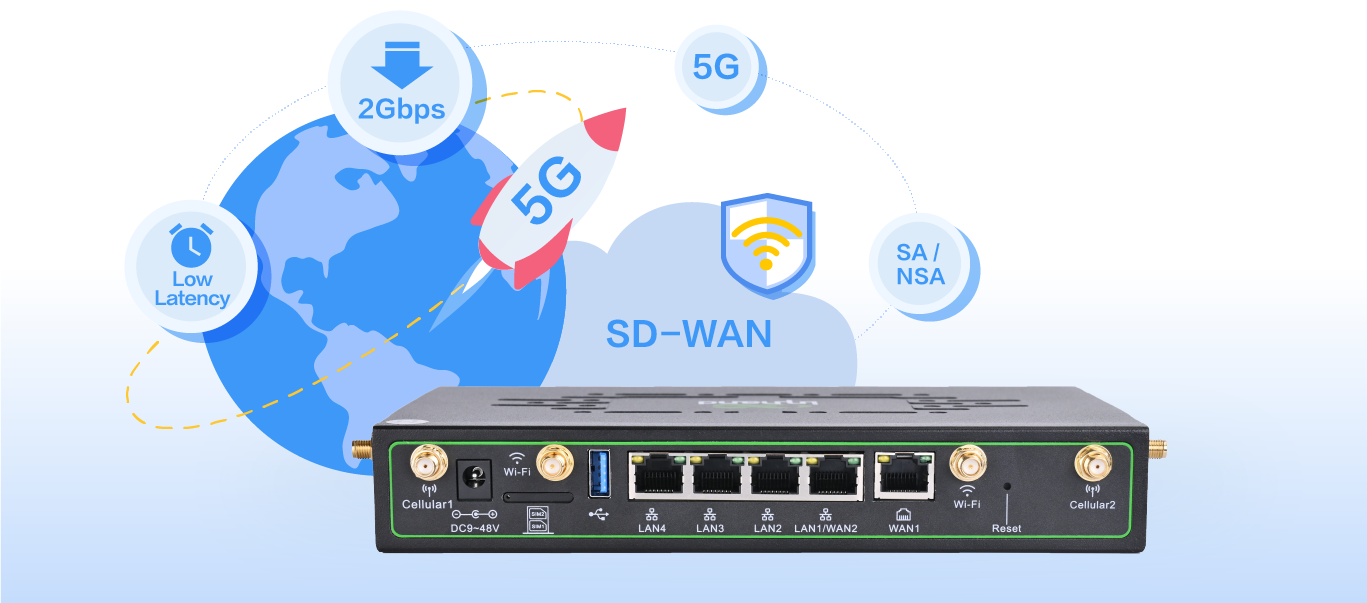

Embracing 5G, Embracing the Future

It is equipped with 5G cellular network access capabilities to provide high bandwidth, low latency service.

5G router

Secure Gigabit Wireless Wi-Fi Network

ER805 can support 2.4 GHz and 5 GHz WiFi dual bands, and each is recommended to connect 50 devices. (actually, more can be connected, but the average rate will be reduced). It protects your data with multiple security authentication methods and Encryption algorithms: TKIP and CCMP.

Modbus TCP, PPP +CC-LINK, ErhernetNET/IP, Modbus RTU, OPC UA Server

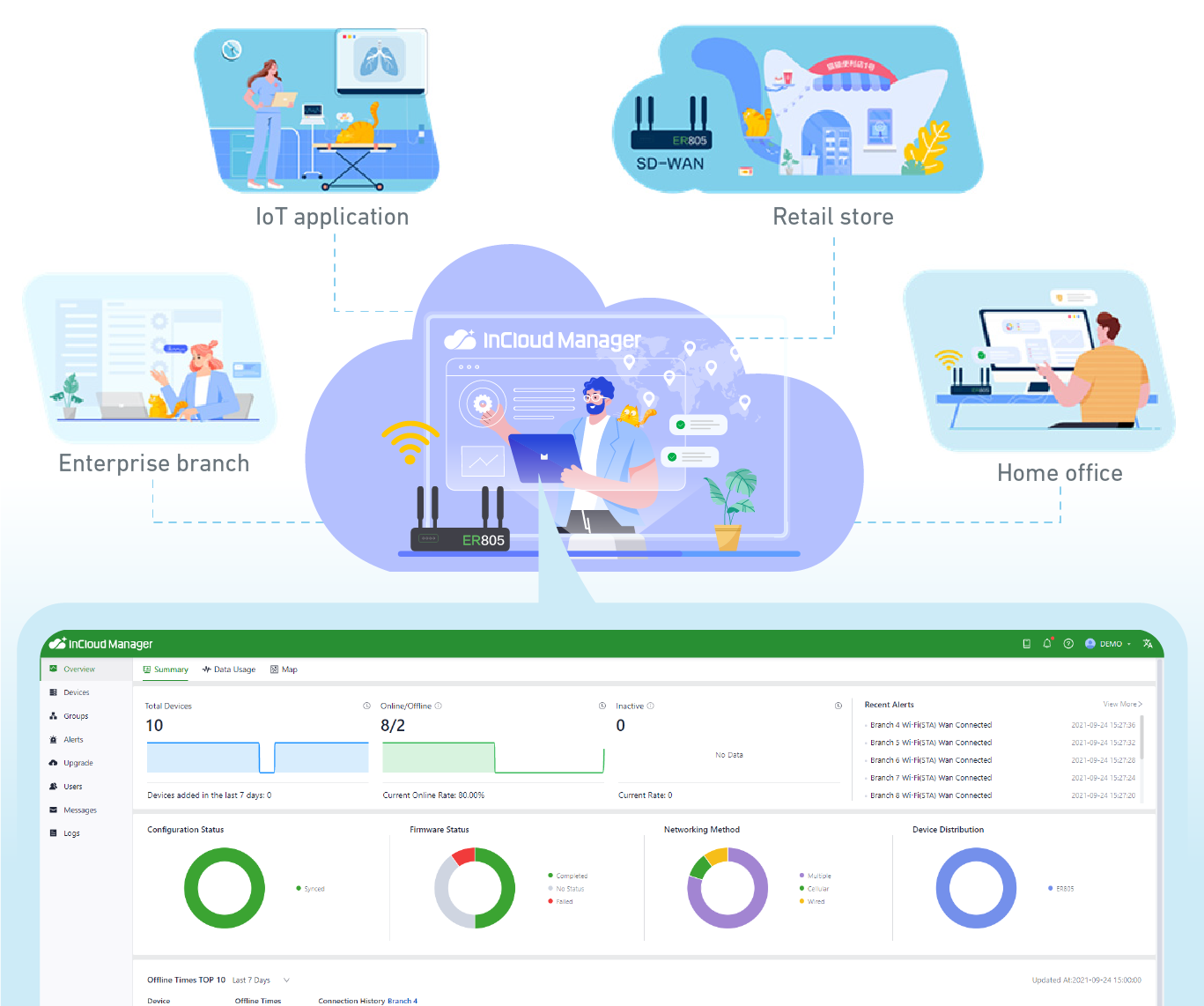

Centralized Cloud Management - InCloud

ER800 combined with InCloud Manager SaaS provides conveniently and securely centralized management of the devices and networks. It enables intelligent deployment, management, insights and configuration in the cloud. The InCloud Manager cloud service also offers an easy-to-use network management platform, where you can conveniently and efficiently manage your devices and networks anytime anywhere.

Synchronous Management, Quick Configuration by APP

InCloud supports the App to synchronize and manage devices. It’s easy and quick to deploy by scanning code with plug and play router ER800.

Docker and IOT system

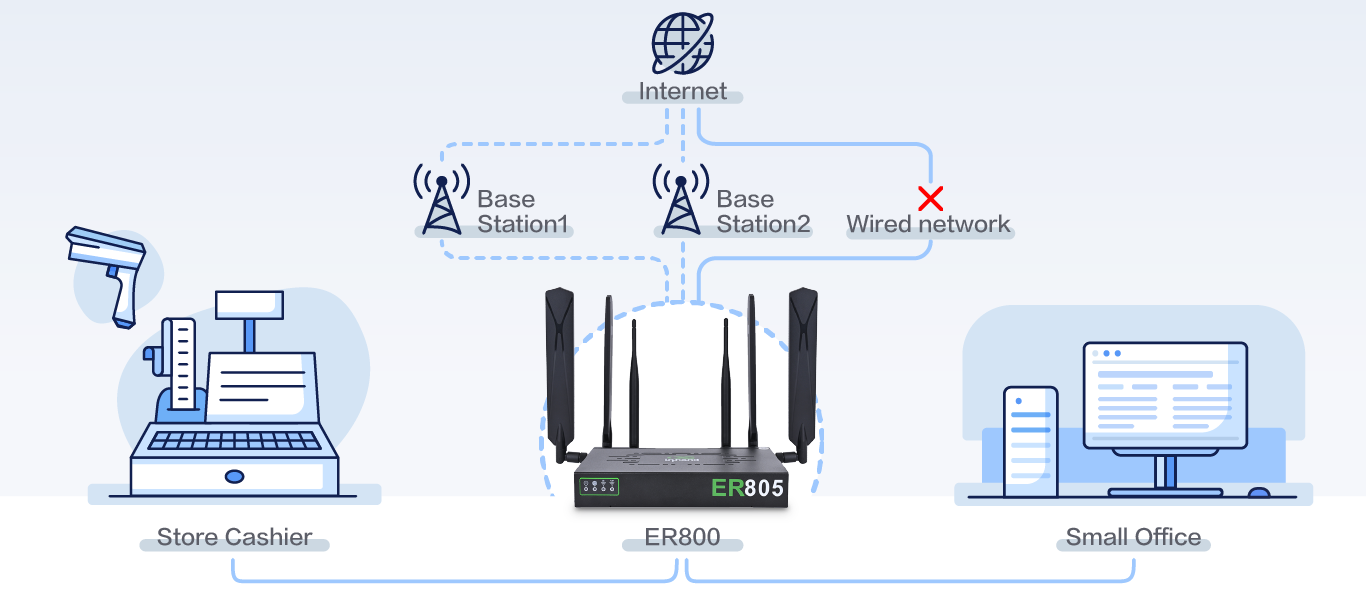

Link Backup on Dual WAN Router

The main link is WiFi or 4G optional, so a backup link. WiFi and dual SIM ensure business data continuity by automatic switching to an available backup connection and adopts real-time link detection technology. Once the detection link is unreachable, it will immediately switch to the backup link to avoid information transmission failure.

8GB Memory eMMC, CPU ARM cortex-A8 1GHz, 1GB Ram DDR3

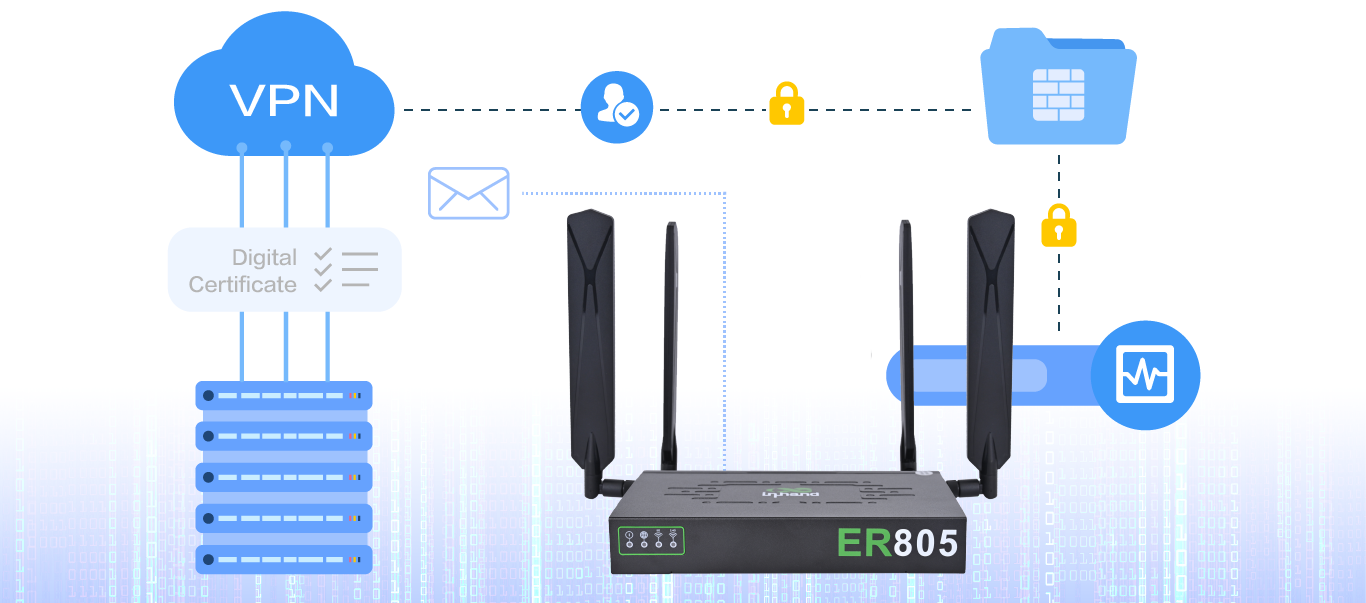

Multi-dimensional Security Strategies

The highly secure network environment and data transmission tunnels for enterprises, such as firewalls, VPNs, digital certificates, authority management, identification authentication, will protect the network from vulnerabilities and threats.

Customized Application, Integrated SDK and access system APIs

Product Detail

InRouter615-S Industrial WiFi Router's front pannel InRouter615-S Industrial cellular Router's back panel

Packaging List

IG902, WiFi antenna*2, LTE 4G antenna, Power Supply, Ethernet Cable

Certification

CE, FC, AT&T, VERIZON, PTCRB
Network type Model (region) Band
Global (except North America) ER805-NRQ0

5G NR NSA: n38/n41/n71/n77/n78/n79

5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n 71/n77/n78/n79

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B 26/B28/B29/B30/B32/B66/B71

LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48

WCDMA: B1/B2/B3/B4/B5/B8/B19

Global (except China) ER805-NRQ3

5G NR NSA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n 71/n77/n78/n79

5G NR SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n 71/n77/n78/n79

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12(B(17)/B13/B14/B17/B18/B19/B 20/B25/B26/B28/B29/B30/B32/B66/B71

LTE-TDD: B34/B38/39/B40/B41/B42/B43/B48

LTE Category: DL CAT20/UL CAT 18

LAA: B46

WCDMA: B1/B2/B3/B4/B5/B6/B8/B19

 LTE CAT4 ER805-FQ58(EMEA & APAC)

LTE-FDD: B1/B3/B7/B8/B20/B28A

LTE-TDD: B38/B40/B41

WCDMA: B1/B8

GSM: B3/B8

LTE CAT4 ER805-FQ78 (Australia & South America)

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD: B40

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8

LTE CAT6 ER805-FQ39 (North America, T-Mobile, Verizon, AT&T)

LTE-FDD: B2/B4/B5/B7/B12/B13/B25/B26/B29/B30/B66 WCDMA: B2/B4/B5

No module ER805-EN00


ER805 Hardware Specifications
Hardware Platform
Firewall throughput 600Mbps
VPN throughput 200Mbps
Storage 512MB
Flash 8GB eMMC
Recommended users 50
Interface
Cellular 5G, downlink 2Gbps,Sub6 (450MHz to 6GHz) 4G
Ethernet port 5*10/100/1000Mbps, Ethernet, Dual WAN/LAN VLAN
USB
1*USB 3.0
SIM Dual SIM, Nano SIM
RESET Reset button
Antenna interface 4* 5G or 2* 4G Cellular Antennas
2* Wi-Fi Antennas
WiFi
Frequency Dual frequency 2.4 / 5GHz Wi-Fi
Transmission bandwidth Maximum1200Mbps
Transfer Protocol 802.11ac/a/b/g/n Wave2 MU-MIMO
Maximum output power  2.4g:17dBm 5g:17dBm
Operating mode AP /Client mode
Power Supply
Pin Power supply
Input voltage Input:9-48VDC
Power Consumption 12W
Ambient Temperature and Humidity
Storage Temperature -40 ~ 85℃
Working Temperature -25 ~ 70℃
Humidity 95%RH at 60°C
Protection Rating IP30
Installation
Desk
Desk-top
Wall Wall mounting
EMC
Electromagnetic Compatibility  II
Mechanical Features
Dimensions (mm) 210mm*140mm*35mm
Features Wall mounting, metal shell, fan-less cooling
Certification
CE, FCC, IC, PTCRB, AT&T, Verizon, FisrtNet
Cloud-based Management ER805 Function
Completely based on cloud management
InCloud Manager

Web unified management

Zero-touch remote deployment

Batch upgrade and management

Double authentication

Support SD-WAN network connection

Network Function
Dial-up service Support PPPoE, cellular automatic redial, dual SIMswitching, APNconfiguration
Network Access Multiple network access, 5G/4G cellular network access, ETHnetwork access
Smart Link

Link backup/packet-by-packet load balancing among multiple links

Real-time detection of link delay, jitter, and packet loss Supports priority adjustment

Monitoring & Alerting
DashBoard Device information, interface status, and refined traffic statistics
Link Monitoring Link delay, jitter, packet loss, and throughput monitoring
Log & Alarm System logs, diagnostic logs, device events, email alerts
Network Security
IP Protocol
IPv4/IPv6*
IP Application VLAN, DHCP server/client, DNS, DDNS*, fixed address assignment, IP passthrough
Interface Management Duplex mode, link negotiation rate, interface enable
Wi-Fi Support 5G and 2.4G Wi-Fi, support multiple SSID settings
Routing Static routing
VPN

IPSec VPN, L2TP VPN, Open VPN * PEM, PKCS12, SCEP(CA Cert)

Firewall

Firewall filtering NAT, port mapping based on MAC, IP, port, protocol

Support access control

Policy management

Policy routing, traffic shaping

Self-recovering

Built-in software and hardware watchdog, self-healing equipment

Remote maintenance
Remote Access Control Support Web/Cli remote access
Cloud Connection



Remote maintenance of PCs, monitoring equipment, servers, PLCs, etc.

Network Diagnostics Support Ping, Traceroute, network packet capture tools, diagnostic logs
Configuration Backup Support configuration import and export
