InRouter915 | Industrial 4G WiFi Router IR915 with Certificate of CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, RCM for Mission Critical IIoT Applications, RS232 and RS485, GPS
Industrial 4G Router with WiFi and GPS -2 Dual SIM
Industrial 4G Router with WiFi and GPS -3 with 5 Ethernet ports
Industrial 4G Router with WiFi and GPS -4
Roll over image to zoom in
InRouter915 | Industrial 4G WiFi Router IR915 with Certificate of CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, RCM for Mission Critical IIoT Applications, RS232 and RS485, GPS
Industrial 4G Router with WiFi and GPS -2 Dual SIM
Industrial 4G Router with WiFi and GPS -3 with 5 Ethernet ports
Industrial 4G Router with WiFi and GPS -4

InRouter915 | Industrial 4G WiFi Router IR915 with Certificate of CE, E-MARK, FCC, IC, PTCRB, AT&T, Verizon, RCM for Mission Critical IIoT Applications, RS232 and RS485, GPS

InHand Networks SKU: IR915L-FQ58-W-S
filler
Price:
$479
  • Description
  • Operation Band
  • Specifications
  • Download
  • Reviews

Industrial LTE Router for Reliable, Secure, Large-Scale M2M IoT Deployment

Featuring an industrial design, Wifi, GPS, 4G LTE & 3G connectivity with intelligent software functions, the InHand InRouter915 is a full-featured industrial IoT M2M Cellular router developed for mission-critical IoT applications. With dual SIM, VRRP and VPN, the InRouter915 provides best-in-class reliability and security protection for remote devices, helping enterprise customers to achieve efficient large-scale deployment and management.

Industrial IoT Router for Reliable, Secure, Large-Scale M2M & IoT Deployment

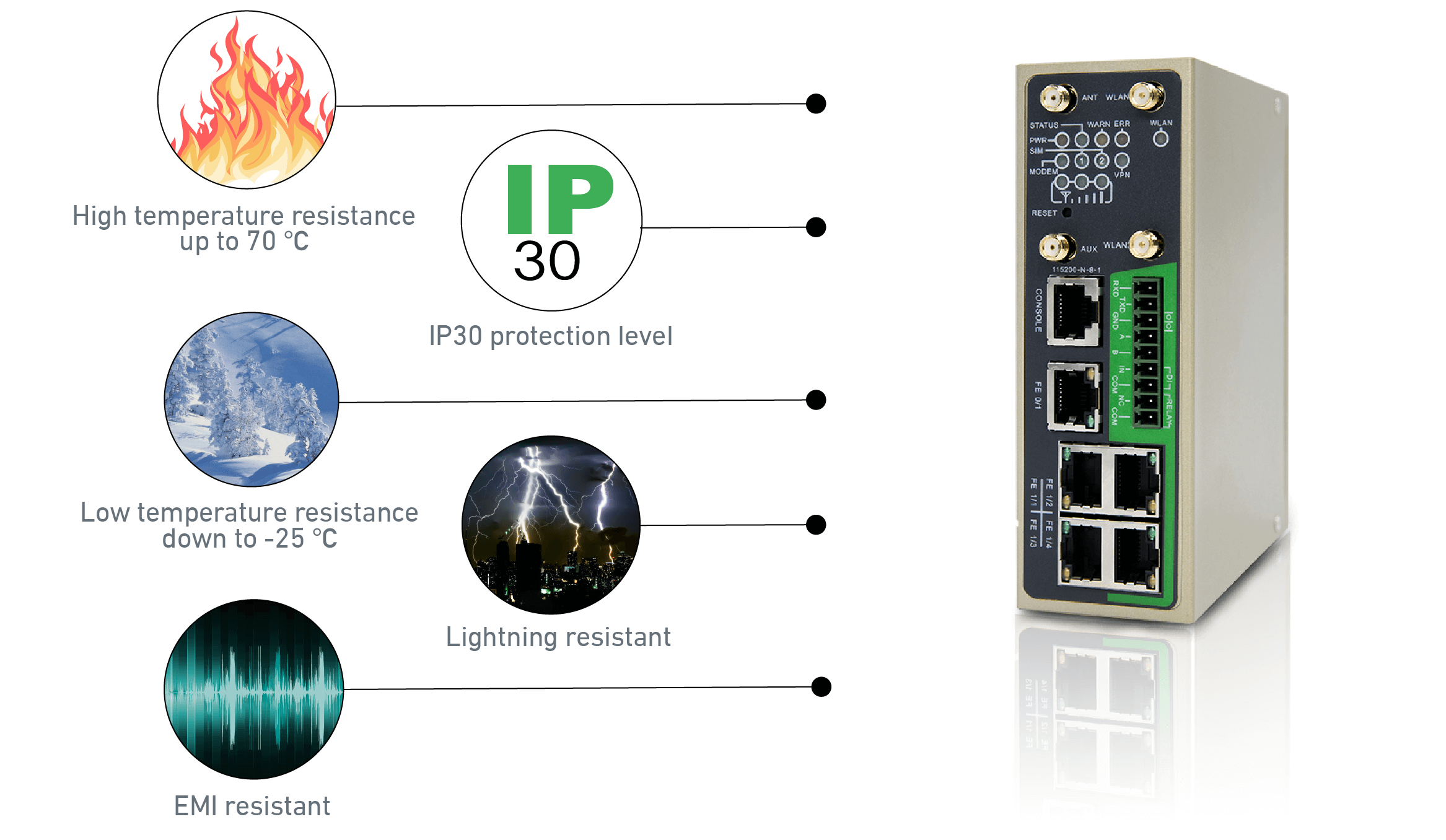

Rugged Industrial Wireless Router

EMC level 4/3, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reducing fault rate.

design for harsh environment

InHand Networks Comprehensive Security

The Industrial Router provides comprehensive security protection for sensitive business data, including secure VPN transmission, firewalls against network attacks and multi-level authorization access control mechanisms.

network, data, access security

Highly-reliable and Uninterrupted Network Connection

With the support of dual-SIM, redundant link backup, and VRRP hot standby, the WiFi and 4G industrial router ensures continuous connection by a seamless transition to a backup link when the main link fails

dual SIM with a backup link to ensures continous connection

See your Router location at a glance with Supporting GPS

See your Router location at a glance with Supporting GPS

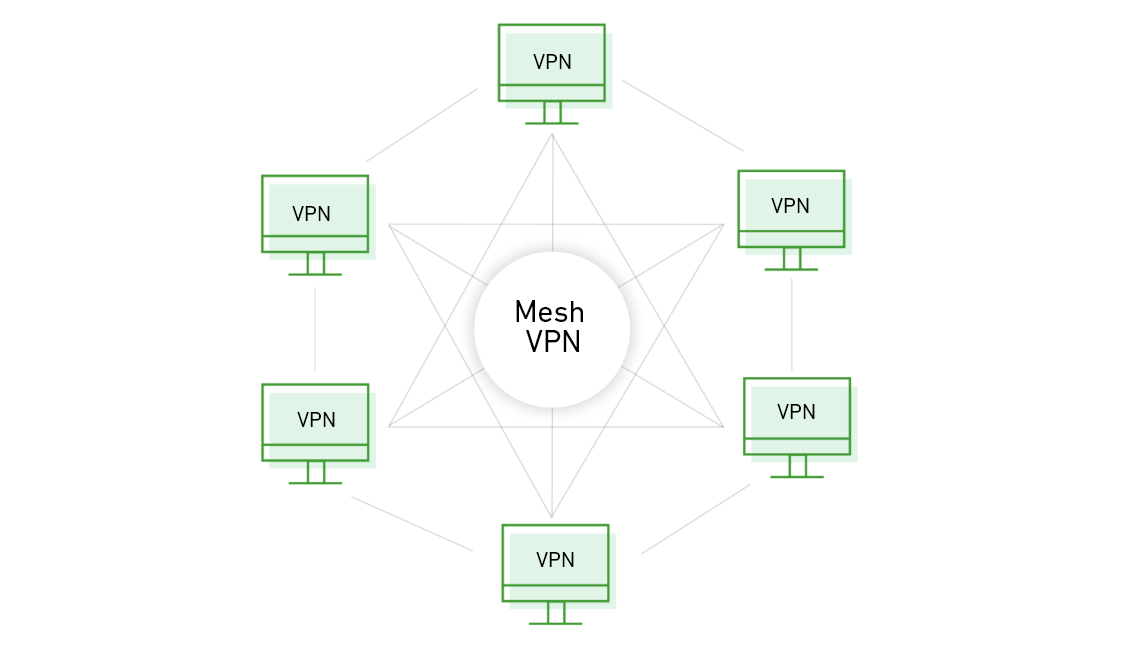

Easy and Fast Large-Scale VPN Network Deployment

The InRouter915 is built with intelligent software functions to enable fast deployment of large-scale networks. RIP, and OSPF dynamic routing that enables efficient scalable network deployment with dynamic learning and computing of network routes. DMVPN supports the fast building of large mesh VPN networks.

Easy and Fast Large-Scale VPN Network Deployment

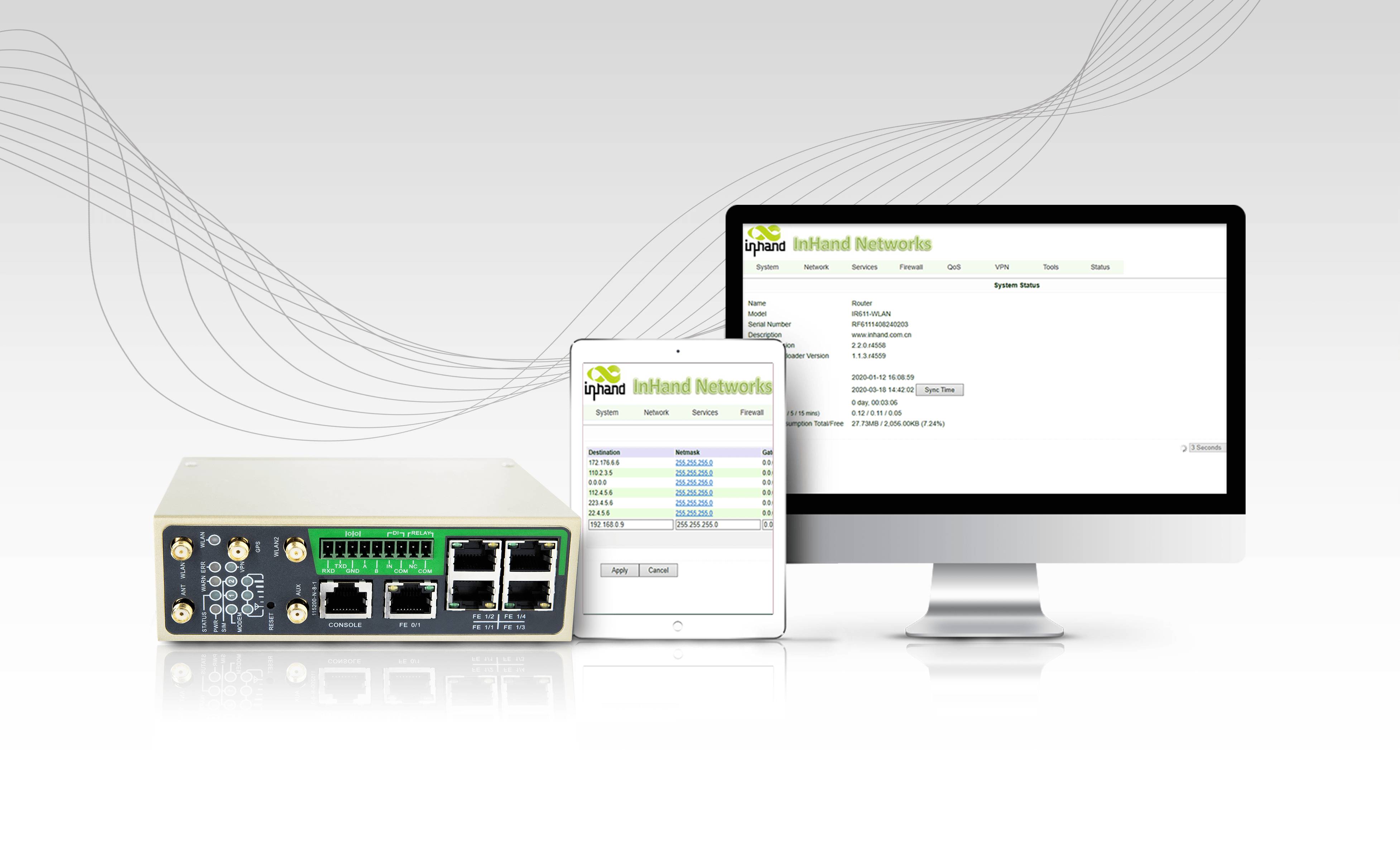

InHand Easy Web Management Software

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

Easy Web Management

Remote Centralized Management

The industrial router, InRouter915, is also compatible with InHand Remote Management System. This platform allows remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks

  • • Remote management for your distributed InHand routers & gateways
  • • Upgrade firmware and update configuration in batch effectively
  • • Support grouping remote management and access control
  • • Monitor device status and data usage in real-time
  • • Easily track your IoT devices in a map view
Device Manager - Remote Centralized Management

Fast and Easy Remote Access to IoT Devices

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

InConnect - Fast and Easy Connectivity to Your Remote Machines

Product Compare

InRouter
Model IR301 IR302 IR305 IR305-S IR615-S IR915 CR202
Cellular network CAT M CAT 4/1 CAT 6/4/1 CAT 6/4/1 CAT 6/4/1 CAT 4/3 CAT 6
Wi-Fi (Optional) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n)
VLAN - - ✔ ✔ ✔ ✔ -
Wi-Fi Antenna 1 1 2 2 2 2
Ethernet Port 1*10/100 WAN/LAN 1*10/100 LAN/WAN
1*10/100 LAN 		1*10/100 WAN/LAN
4 *10/100 LAN 		1*10/100 WAN/LAN
4 *10/100 LAN 		1*10/100 WAN
4*10/100 LAN 		1*10/100 WAN
4 *10/100 LAN 		1*10/100 WAN/LAN
Serial Port 1*RS232/RS485 - - 1*RS232, 1*RS485 1*RS232/RS485 1*RS232, 1*RS485 -
I/O Port - - 4*DI or DO - - 1*DI, 1 relay output -
EMC Level Level 2 Level 2 Level 3 Level 3 Level 3 Level 4 -
Battery Level 2 Level 2 - - - 5000 Amh

Applications

Product Detail

High-perfomance Industrial 4G Router with 5 Ethernet ports High-perfomance Industrial 4G Router with 2 SIM card slot

Packaging List

Packaging List

Certification

  • certifications: CE, FCC, UL, PTCRB, CCC, Verizon, AT&T, E-MARK, IC, IMDA, RCM
Network type Model (region) Band
LTE CAT 6 IR915-FQ39 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
LTE CAT-3 or 4 IR915-FH20 (EMEA, APAC) LTE-FDD Band 1/2/3/4/5/7/8/20
UMTS(DC-HSPA+) Band1/2/5/8
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR915-FS18 (North America, AT&T) LTE-FDD Band 2/4/5/17
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz
IR915-FS28 (North America, Verizon Wireless) LTE-FDD Band 2/4/5/13
UMTS(HSPA+) Band 2/4/5
EDGE/GPRS/GSM 850/900/1800/1900MHz

IR915 Hardware Specifications
Hardware
CPU ARM Cortex-A8 600MHz
Memory 128MB
FLASH 128MB
Interface

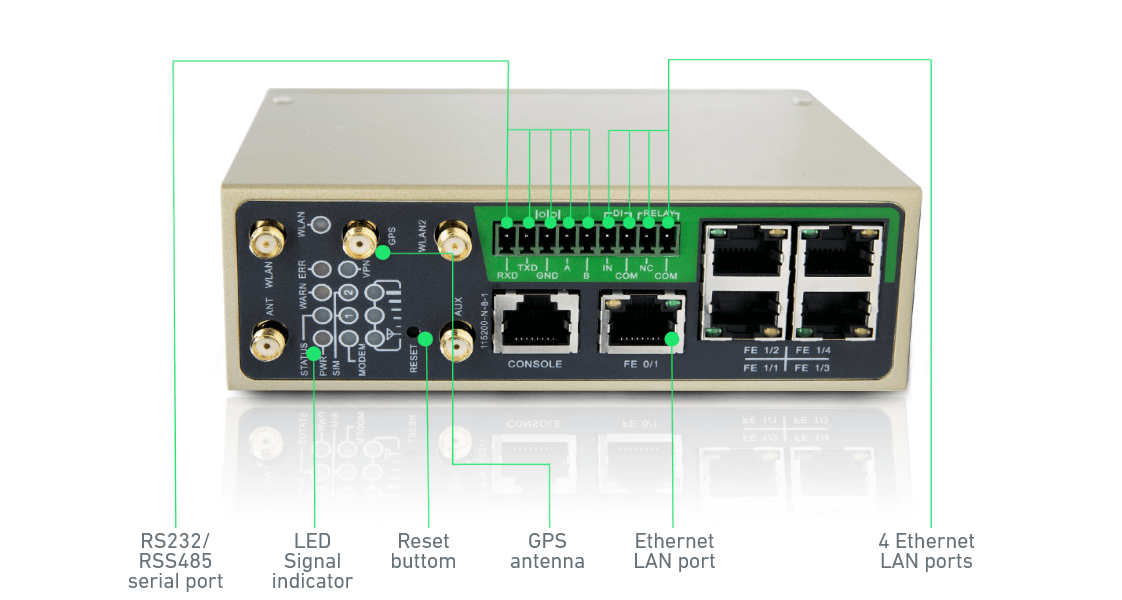

Ethernet Port 5*10/100Mbps, WAN/LAN; support VLAN
Serial Port 2 Serial: RS232 x1, RS485 x1
RS-232 signal: TXD, RXD, GND
RS-485 signal: A, B, GND
ESD Protection: 15KV
Console RS-232 x1, RJ45 Serial Port

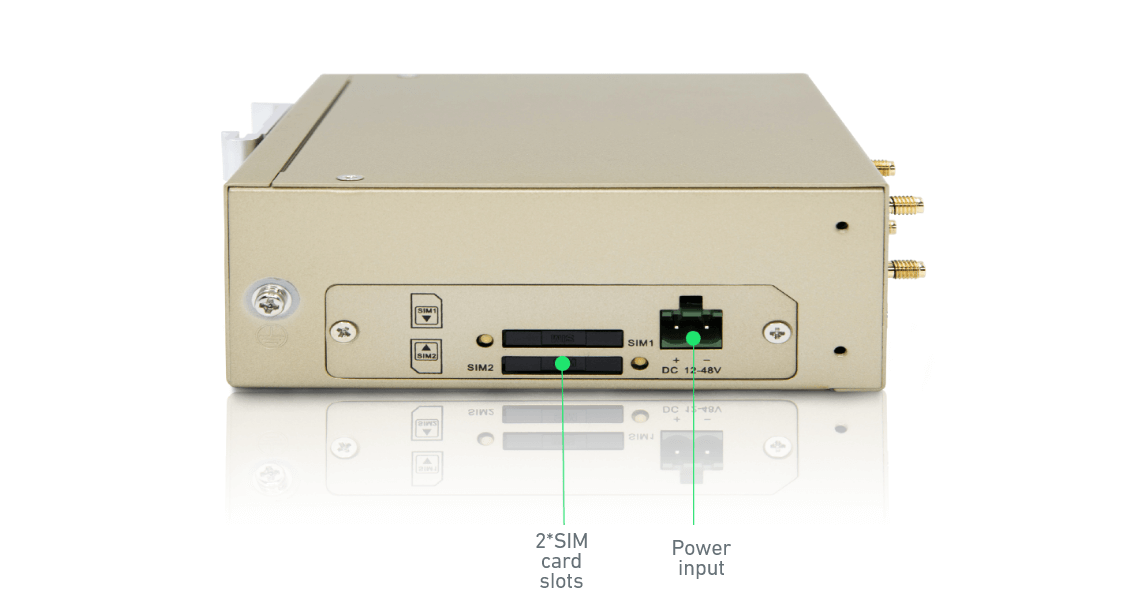

SIM Holder 2 Push-type SIM Card Holders
Reset Pinhole Reset Button
Ground Terminal Supported
Wi-Fi Optional 802.11b/g/n
Antenna 3G/4G: SMA Female Connector x 2,
WLAN: RP-SMA x 1
DI/DO (IR915 only) 1*DI, galvanic isolation,
Status “1”:+10~+30V
Status “0”:-30~+3V”
1 relay output, 2A@30VDC
GPS (optional) GPS: SMA x 1
Mechanical
Installation Din-ail, wall mount
IP Level IP30
Cooling Fanless
Housing Metal
Dimensions 132.6 x 112.8 x 45mm
Clock Embedded RTC
Weight 590
Power
Power Supply DC12-48V
Interface 2-pin 5.08mm industrial
Standby 160mA@24V(HSPA+)
Working 220mA@24V(HSPA+)
Peak 230mA@24V(HSPA+)
Wi-Fi Transmit Power
Transmit Power 802.11b:13dBm +/-2dBm(11Mbps)
802.11g:13dBm +/-2dBm(54Mbps)
802.11n@2.4GHz:13dBm +/-2dBm(HT20 MCS7)
802.11n@2.4GHz:13dBm +/-2dBm(HT40 MCS7)
Environment
Storage -40 ~ 85℃
Working -25 ~ 70℃
Humidity 5 ~ 95% (non-condensing)
Indicators
LED POWER, STATUS, WARN, ERROR, MODEM, SIM, VPN, Signal
EMC
ESD EN61000-4-2, level 4
RFI EN61000-4-3, level 4
EFT EN61000-4-4, level 4
Surge EN61000-4-5, level 3
Conducted Disturbances EN61000-4-6, level 4
Oscillatory Wave EN61000-4-12,level 4
Frequency Magnetic Field EN61000-4-8, horizontal/vertical 400A/m (>level 4)
Mechanical
Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32
Approvals and Compliance
CE, FCC, UL, PTCRB, CCC, Verizon, AT&T, E-MARK, IC, IMDA, RCM
IR915 Software Specifications
Network Connection
Operator Access APN, VPDN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
Cellular LTE, WCDMA (HSPA+), EDGE, GPRS
LAN ARP, Ethernet
WAN Static IP, DHCP, PPPoE
Protocol
IP Ping, Traceroute, DHCP Server/Relay/Client, DNS Relay, Dynamic DNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP
IP Routing Static Routing, RIP, OSPF, IGMP Proxy, BGP V4
Security
Firewall Stateful Packet Inspection (SPI), Anti-DoS Attack
Filtering Multicast/Ping package, Access Control List (ACL)
NAT, PAT, DMZ, Port Mapping, Virtual Server
Multi-Level Authority Two-level authority: Full Authority and Read-Only User
AAA Local Authentication, Radius, TACACS+, LDAP
CA Certificate PEM, PKCS12, SCEP
Data Security IPsec VPN, L2TP, PPTP, GRE, OPENVPN, DMVPN, CA
Others Anti-ARP, DMZ, MAC Filtering
Reliability
Link Backup Floating Route, WAN Link Backup
Auto-Recover Various Heartbeat Package, Automatic Recover from Failure
Watchdog Self-diagnostic, Automatic Recover from Failure
GPS
Support GPS Supports VLAN and Port Mirroring
QoS
Bandwidth Limiting maximum bandwidth
Data Priority Support Protocol-based data control
WLAN
Standard IEEE 802.11b/g/n
Security WPA/WPA2, WPA-PSK, Support Open System, Shared KeyWEP/TKIP/AES Encryption
Mode Supports both AP and Client Mode
Intelligence
DTU TCP, UDP transparent transmission, TCP Server, DC
Bridge 101-104, Modbus RTU -Modbus TCP
Intelligence
Configuration Configured via HTPP, HTTPS, Serial Port, Telnet, SSH
Firmware Upgrade WEB, Serial Port, TFTP, FTP, SFTP server, Device Manager
Log Local sys log, remote lot, export log via Serial Port
Important Log Backup in Flash Memory
SMS
 SMS to Inquiry Status, Reboot
On-Demand Dial Up Activated by data, Activated by SMS, Scheduled Online/Offline
SNMP SNMP v1/v2c/v3, InHand MIBs
DM Remote management via InHand Device Manager (DM)
AAA Local/Radius/TACACS+/LDAP
Multilevel Authority Multiple Levels of User Authority
Diagnostic Ping, Traceroute, Sniffer
