InRouter301 Compact Industrial LTE Router with Ethernet and Serial Ports

InHand Networks SKU: IR301-FQ02-WLAN-US


InRouter301 - A compact and easy-to-use LTE Cellular Router

InHand IR301 is a cost-effective and secure, compact industrial 4G VPN router, equipped with an Ethernet port and a Serial port ( RS232/RS485), dual SIM holders and a WiFi interface. It provides easy, reliable, and secure internet connectivity. This industrial cellular router can be used in a wide range of industrial and commercial IoT applications, giving you an option of better performance but lower cost.

InRouter302 Compact Industrial LTE VPN Router

Product Highlights

Compact and Rugged Housing Design LTE VPN Router

For IR301, the narrow spaces will no longer be a roadblock with compact and industrial design. It supports both panel and DIN-rail mounting, available for various IoT deployment scenarios.

industrial compact and rugged cellular router

Fully Industrial Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial LTE router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

-20℃-70℃, IP30 protection level, EMI resistant, lighting resistant

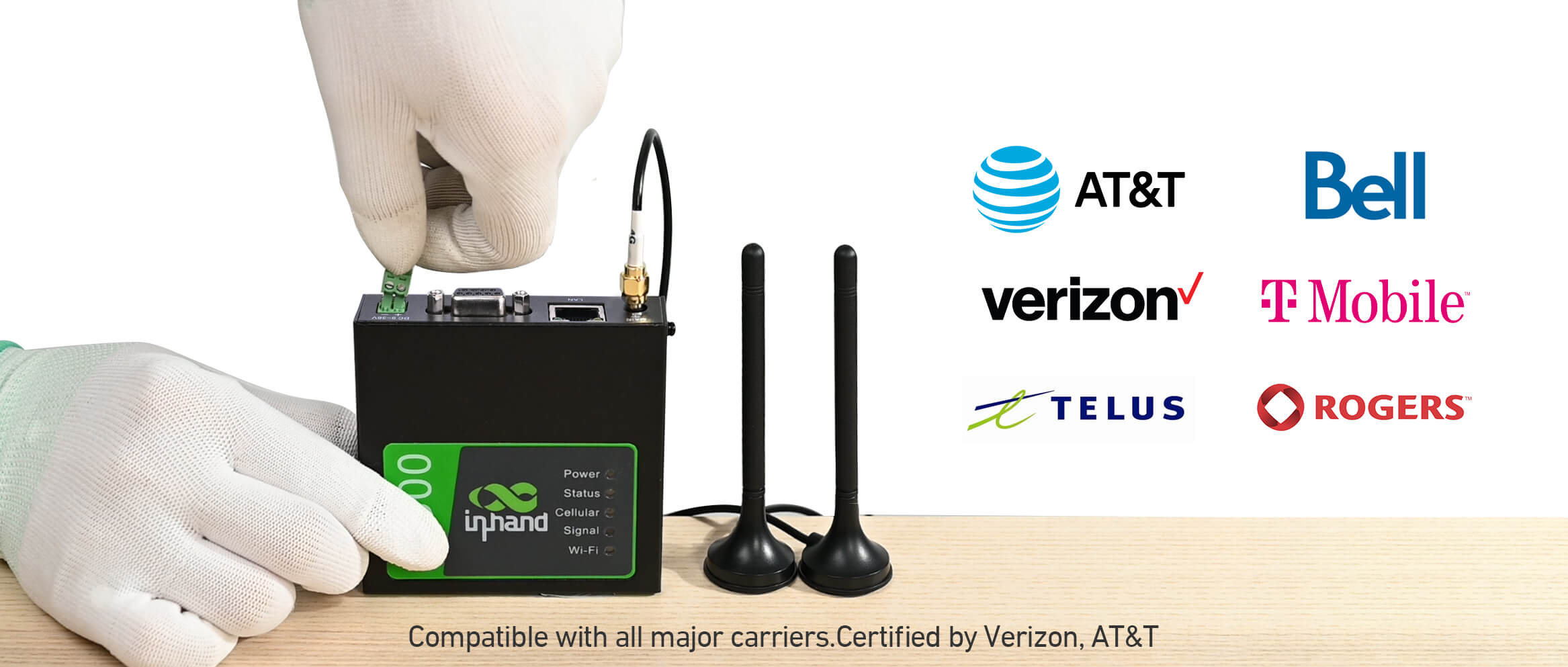

Compatible Carriers

IR301 is a convenient plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries.


industrial LTE and WiFi router

Reliable Network Connection

InRouter300 high-quality network services support multiple link backup types. Wired Wan or WiFi can work as the primary link, cellular LTE networks work as the backup link, and vice versa. The backup link provides for network connectivity if the primary link fails. Furthermore, it can automatically failover to a second SIM card with the dual SIM feature.

industrial reliable cellular router with link backup

Strong Security Protection

The IR301 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

4G VPN router with strong security protection

Easy-to-Use Web Interface

A user-friendly web interface helps you with the effective configuration and management of IR301.

Easy Web Management

Device Manager-Free Remote Centralized Management Platform

IR301 is compatible with InHand Device Manager, a free centralized cloud management platform allowing users to manage & monitor InHand devices remotely.

Device Manager - Join for free
  • Provide remote centralized management of your distributed InHand industrial routers & gateways
  • Upgrade firmware and update configuration in batch effectively
  • Support grouping management and access control
  • Monitor device status and data usage in real time
  • Easily track your devices in a map view
Device Manager - Remote Management

InConnect Service-Access to Downstream Devices Easily

IR301 is compatible with InConnect Service, a cloud-based platform that engineers can utilize to access the downstream devices through the its secure tunnels

InConnect-Try it now

Product Compare

Model IR301 IR302 IR305 IR305-S IR615-S IR915 CR202
Cellular network CAT M CAT 4/1 CAT 6/4/1 CAT 6/4/1 CAT 6/4/1 CAT 4/3 CAT 6
Wi-Fi (Optional) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n) 2.4GHz (802.11b/g/n)
VLAN - - -
Wi-Fi Antenna 1 1 2 2 2 2
Ethernet Port 1*10/100 WAN/LAN 1*10/100 LAN/WAN
1*10/100 LAN
1*10/100 WAN/LAN
4 *10/100 LAN
1*10/100 WAN/LAN
4 *10/100 LAN
1*10/100 WAN
4*10/100 LAN
1*10/100 WAN
4 *10/100 LAN
1*10/100 WAN/LAN
Serial Port 1*RS232/RS485 - - 1*RS232, 1*RS485 1*RS232/RS485 1*RS232, 1*RS485 -
I/O Port - - 4*DI or DO - - 1*DI, 1 relay output -
EMC Level Level 2 Level 2 Level 3 Level 3 Level 3 Level 4 -
Battery Level 2 Level 2 - - - 5000 Amh

Product Detail

InRouter302 Compact Industrial LTE VPN Router with 2 ethernet ports InRouter302 Compact Industrial LTE VPN Router

Packaging List

InRouter302 Compact Industrial LTE VPN Router, terminal block, 4G antenna


CE, FCC, PTCRB, IC, Verizon, AT&T
Network type Model(region) Band
LTE CAT M/NB-IoT IR301-FQ02 (Global)

CAT M1: B1/2/3/4/5/8/12/13/14/18/19/20/25/26/27/28/66/85

CAT NB2: B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85
GSM/EDGE: 850/900/1800/1900

InRouter 301 Hardware Specifications
Hardware Platform
CPU Platform 580MHz
Flash 32MB SPI
Ethernet Port IR301: 1*10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection
Serial Port 1*RS-232, 1*RS485*1(DB9); ESD protection: 15KV
Power Supply DC9- -36V, over-current protection,
anti-reverse connection, 2 PIN industrial terminal block
Reset Button Pinhole reset button
SIM Card Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional) IEEE 802.1 1b/g/n, 150Mbps
Antenna Connector 4G: SMA x 1; Wi-Fi: RP-SMA x 1
Ground Terminal Supports
Mechanical Specs
Dimensions (mm) 90X90x25mm
Weight (g) 259g
Installation Method Panel mounting, rail mounting
Protection Rating IP30
Housing Metal
Cooling Fanless
Power Rate
Working Power 100-120mA@12V
Standby Power 80-90mA@12V
Peak Power 190mA@12.0V
Wi-Fi Transmit Power
Transmit Power 802.11b: 16dBm +/-2dBm (11Mbps)
802.11g: 16dBm +/-2dBm (54Mbps)
802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7)
802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
LED Power, Status, Cellular, Wi-Fi, Cellular Signal
Static EN61000-4-2, level2
Radiation Electric Field EN61000-4-3, level 2
Pulsed Electric Field EN61000-4-4,level 2
Surge EN61000-4-5,level 2
Conducted Disturbance Immunity EN61000-4-6, level 2
Shock Wave Resistance EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal / vertical 400A/m (>level 2)
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
CE, FCC, PTCRB, IC, Verizon, AT&T
InRouter301 Software Specifications
Network Connection
Network Access APN, VPDN, PrivateNetwork
Access Authentication CHAP/PAP
LAN Protocol ARP
FDD LTE (Please refer to the Ordering Guide for frequencies.)
Network Protocol
IP Application Ping, RouteTrace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Static routing
NAT Supports network address translation
Network Security Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping probe packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2),
OpenVPN protocols
Supports CA digital certificate
Hot Backup VRRP hot backup
Link detection Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover Supports dual SIM failover
Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
WLAN (optional)
Protocol IEEE 802.11b/g/n
Rate Up to 150Mbps
Mode AP, STA and WDS modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
80 meters by line of sight (Actual transmission distance depends on environment of the site.)
Network Management
QoS Management Bandwidth limit, IP speed limit
Configuration Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query,
configuration, restart
Dial-on-demand Dial-on-demand,
data / SMS activation
Supports InHand DeviceManager, batch management Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services.
SNMP SNMP v1/v2c/v3,support SNMP TRAP
Supports data traffic threshold, traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic
alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
