InRouter301 Compact Industrial LTE Router with Ethernet and Serial Ports

InHand Networks SKU: IR301-FQ02-WLAN-US
filler

Price:
$156

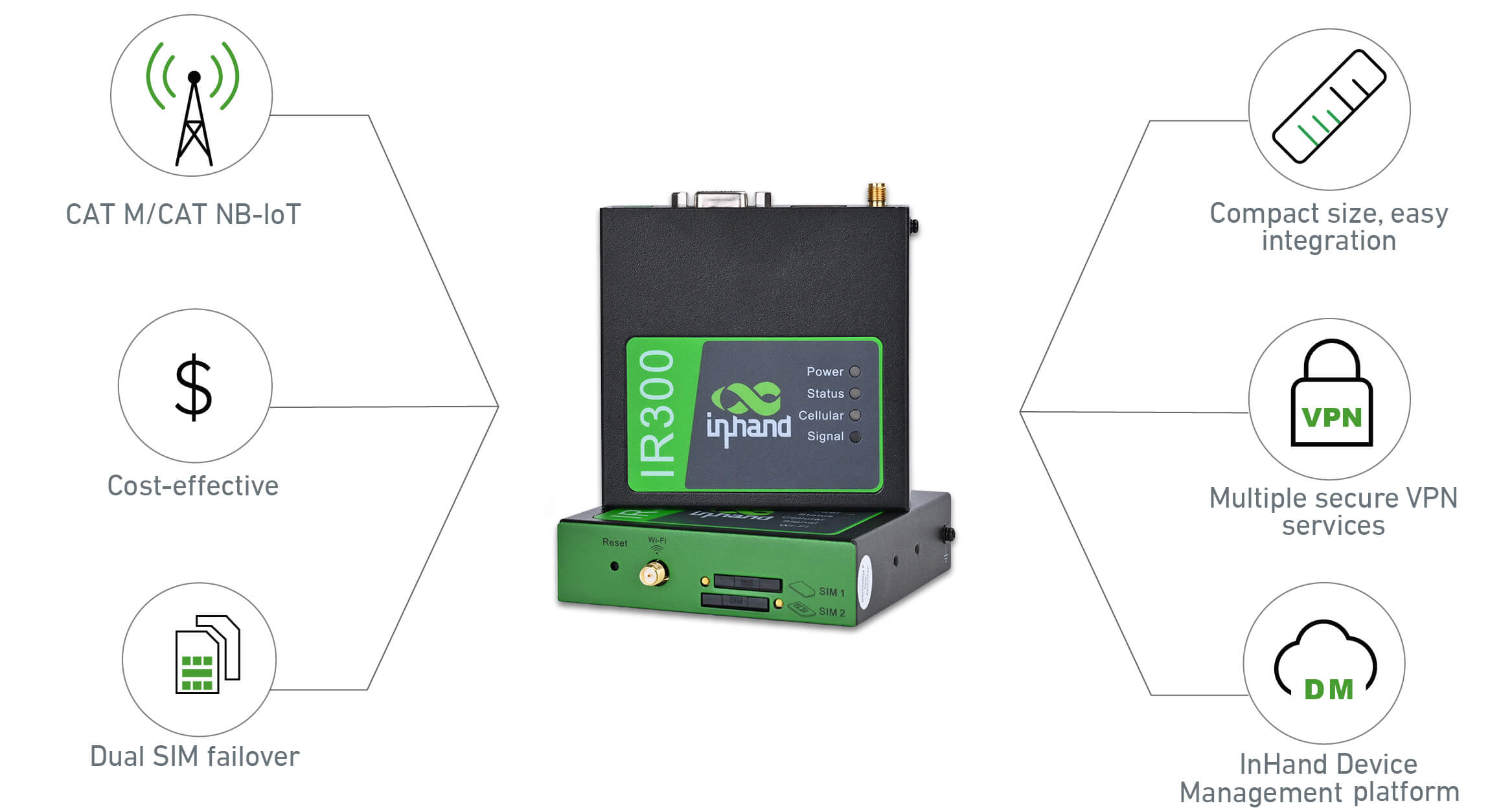

InRouter301 - A compact and easy-to-use LTE Cellular Router

InHand IR301 is a cost-effective and secure, compact industrial 4G VPN router, equipped with an Ethernet port and a Serial port ( RS232/RS485), dual SIM holders and a WiFi interface. It provides easy, reliable, and secure internet connectivity. The industrial cellular router can be used in a wide range of industrial and commercial IoT applications, delivering an option of a good balance between cost and performance.

InRouter302 Compact Industrial LTE VPN Router

Interested in this product?

Get Best Quote

Product Highlights

Compact and Rugged Housing Design LTE VPN Router

The industrial cellular router fits in narrow spaces easily with small, compact and industrial design, meanwhile supports both panel and DIN-rail mounting, suitable for various IoT deployment sites.

industrial compact and rugged cellular router

Fully Industrial Design

EMC level 2, fan-less cooling, solid metal shell, strong resistance to vibration and shock, effectively reduce fault rate. The industrial WiFi router offers high-quality networking solutions for unattended sites and works well even in harsh environments.

-20℃-70℃, IP30 protection level, EMI resistant, lighting resistant

Plug-and-Play Certified Router

IR301 is a convenient plug-and-play router. It will automatically and quickly connect to the network after plugging in the power supply and inserting the SIM cards. It is functionality meets kinds of carriers' access standards from many countries. You can rest assured to use our products for business.



industrial LTE and WiFi router

Continuity and Reliability Network Connection

The main link is WiFi or 4G optional, so is a backup link. WiFi and dual SIM ensures business data continuity by automatic switching to an available backup connection.

industrial reliable cellular router with link backup

Strong Security Protection

The IR301 is designed with comprehensive security protection, including encrypted VPN transmission, firewall protections and multi-level authorization control.

4G VPN router with strong security protection

Easy Web Management

A user-friendly web-based set-up interface that walks you through setup, configuration and management—quickly and easily.

Easy Web Management

Remote Centralized Management

IR301 is also compatible with InHand Remote Centralized Management System. This platform allowed to remotely manage & monitor the status and parameters of all routers & gateways by InHand Networks.

Device Manager - Join for free
  • Provide remote centralized management of your distributed InHand industrial WiFi routers & gateways
  • Upgrade firmware and update configuration in batch effectively
  • Support grouping management and access control
  • Monitor device status and data usage in real time
  • Easily track your devices in a map view
Device Manager - Remote Management

Fast and Easy Remote Access to IoT Devices

Compatible with InHand cloud-based platform—InConnect, which the service engineers can utilize to securely connect to industrial equipment at field sites, such as HMI, PLC, and cameras, as if they are locally connected.

InConnect-Try it now

Product Compare

InRouter
Model IR301-FQ02-WLAN IR302-FQ33-WLAN IR302-FQ38-WLAN IR615-S
Cellular network CAT M CAT 1 CAT 4 CAT 6
Wi-Fi 2.4 GHz, 150Mbps 2.4 GHz, 150Mbps 2.4 GHz, 150Mbps 2.4 GHz, 300Mbps
Ethernet 1*10/100 2*10/100 2*10/100 5*10/100
Serial Port RS232/RS485 None None RS232/RS485

Product Detail

InRouter302 Compact Industrial LTE VPN Router with 2 ethernet ports InRouter302 Compact Industrial LTE VPN Router

Packaging List

InRouter302 Compact Industrial LTE VPN Router, terminal block, 4G antenna

Certification

CE, FCC, PTCRB, IC, Verizon, AT&T
Network type Model(region) Band
LTE CAT M/NB-IoT IR301-FQ02 (Global)

CAT M1: B1/2/3/4/5/8/12/13/14/18/19/20/25/26/27/28/66/85

CAT NB2: B1/2/3/4/5/8/12/13/18/19/20/25/26/28/66/71/85
GSM/EDGE: 850/900/1800/1900

InRouter 301 Hardware Specifications
Hardware Platform
CPU Platform 580MHz
RAM 128MB DDR2
Flash 32MB SPI
Interface
Ethernet Port IR301: 1*10/100Mbps fast Ethernet port, LAN/WAN port 1.5KV network isolation transformer protection
Serial Port 1*RS-232, 1*RS485*1(DB9); ESD protection: 15KV
Power Supply DC9- -36V, over-current protection,
anti-reverse connection, 2 PIN industrial terminal block
Reset Button Pinhole reset button
SIM Card Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional) IEEE 802.1 1b/g/n, 150Mbps
Antenna Connector 4G: SMA x 1; Wi-Fi: RP-SMA x 1
Ground Terminal Supports
Mechanical Specs
Dimensions (mm) 90X90x25mm
Weight (g) 259g
Installation Method Panel mounting, rail mounting
Protection Rating IP30
Housing Metal
Cooling Fanless
Power Rate
Working Power 100-120mA@12V
Standby Power 80-90mA@12V
Peak Power 190mA@12.0V
Wi-Fi Transmit Power
Transmit Power 802.11b: 16dBm +/-2dBm (11Mbps)
802.11g: 16dBm +/-2dBm (54Mbps)
802.11n@2.4GHz: 16dBm +/-2dBm (HT20 MCS7)
802.11n@2.4GHz: 16dBm +/-2dBm (HT40 MCS7)
Ambient Environment
Storage Temperature -40 ~ 85℃
Operating Temperature -20 ~ 70℃
Ambient Humidity 5 ~ 95% (non-condensing)
Indicator
LED Power, Status, Cellular, Wi-Fi, Cellular Signal
EMC
Static EN61000-4-2, level2
Radiation Electric Field EN61000-4-3, level 2
Pulsed Electric Field EN61000-4-4,level 2
Surge EN61000-4-5,level 2
Conducted Disturbance Immunity EN61000-4-6, level 2
Shock Wave Resistance EN61000-4-12, level 2
Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal / vertical 400A/m (>level 2)
Physical Specs
Shockproof IEC60068-2-27
Vibration Resistance IEC60068-2-6
Free Fall IEC60068-2-32
Certificate
CE, FCC, PTCRB, IC, Verizon, AT&T
InRouter301 Software Specifications
Network Connection
Network Access APN, VPDN, PrivateNetwork
Access Authentication CHAP/PAP
LAN Protocol ARP
WAN Protocol PPP, PPPoE, DHCP
Network Type GSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA, TDD LTE/
FDD LTE (Please refer to the Ordering Guide for frequencies.)
Network Protocol
IP Application Ping, RouteTrace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Static routing
NAT Supports network address translation
Security
Network Security Stateful Packet Inspection (SPI), DoS attack defense;
Multicast filter/Ping probe packet, Access Control List (ACL);
Content URL filter, port mapping, virtual IP mapping, IP/MAC binding
Data Security Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2),
OpenVPN protocols
Supports CA digital certificate
Reliability
Hot Backup VRRP hot backup
Link detection Sends heartbeat packets to detect, auto redials when disconnected
Dual SIM Failover Supports dual SIM failover
Embedded Watchdog Device runs self-detection, auto recovers from malfunctions
WLAN (optional)
Protocol IEEE 802.11b/g/n
Rate Up to 150Mbps
Mode AP, STA and WDS modes
Security Open system, shared key, WPA/WPA2 certification
WEP/TKIP/AES encryption
Transmission
Distance
80 meters by line of sight (Actual transmission distance depends on environment of the site.)
Network Management
QoS Management Bandwidth limit, IP speed limit
Configuration Telnet, web, ssh, and console
Upgrade Method Web, Device Manager
Logs Local system logs, remote logs, and serial export of logs.
Power down saving of important logs.
SMS Functions Status query,
configuration, restart
Dial-on-demand Dial-on-demand,
data / SMS activation
Network
Management
Supports InHand DeviceManager, batch management Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services.
SNMP SNMP v1/v2c/v3,support SNMP TRAP
Traffic
Management
Supports data traffic threshold, traffic statistics and traffic alarm
Alarms System restart alarm, LAN port online/offline alarm, data traffic
alarm, SIM card failure alarm, etc.
Maintenance Tools Ping, route tracking, network speed test
Status Query System status, modem status, network connection status, and routing status
