InHand Networks SKU: VG710-FS39
filler
Price:
$675
  • Description
  • Operation Band
  • Specifications
  • Download
  • Optional Accessories
  • Reviews

High-Performance Vehicle Gateway

The InVehicle G710 is a new vehicle LTE gateway developed especially for the Vehicle Area Network (VAN). It provides high-speed and secure connectivity for mission-critical applications in a wide range of scenarios, such as police cars, heavy equipment, ambulances, and logistics. Equipped with the cloud-based remote fleet management platform, it offers ubiquitous networking and uninterrupted monitoring for logistics management, asset tracking, mobile office and public security.

InVehicle G710 Vehicle Gateway

Product Highlights

High-Speed Vehicle Area Network (VAN)

With LTE CAT6 high-speed WAN, dual-band 2.4G/5G Gigabit WiFi, Gigabit Ethernet and CAN bus, the VG710 vehicle gateway provides vehicles and devices with fast, reliable and secure networks.

High-Speed Vehicle Area Network

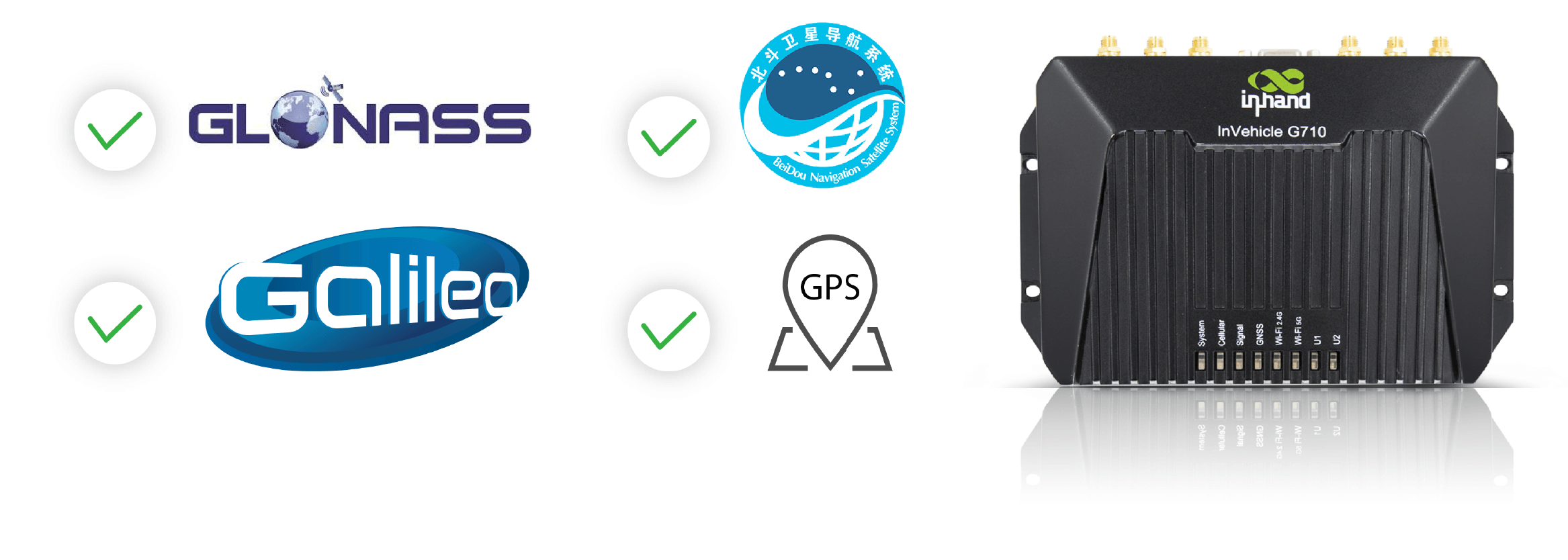

Uninterrupted High-accuracy Vehicle Location

Utilizing the 72-channel high-accuracy and high-sensitivity GNSS positioning system, which includes GPS, GLONASS, Galileo and Beidou with inertial navigation (dead reckoning). The VG710 vehicle gateway provides reliable, fast and precise vehicle location.

GPS, GLONASS, Galileo and Beidou with inertial navigation

Real-time Monitoring of Vehicle Status

Integrating OBD-II and J1939, the VG710 vehicle gateway enables real-time vehicle diagnostics. The embedded GNSS offers uninterrupted precise positioning, with remote analysis software monitoring dangerous driving behavior, thus ensuring driving safety.

Real-time Monitoring

Driver Behavior Management

Monitor vehicle track, mileage, collision, speeding, hard braking, aggressive cornering, etc. in real time, remind drivers to drive more cautiously.

Driver Behavior Management

Superior Reliability in Harsh Vehicle Environments

The vehicle grade processor chip ensures constant and reliable operation in harsh environments. Designed for IP64 for resistance to dust and water ingress, the VG710 survives water splash, dust, shock, vibration, humidity and extreme temperatures.

Industrial Design for Harsh Vehicle Environments

Fleet Management Cloud Platform

Task dispatch, route planning, vehicle tracking, real-time messaging, geo-fencing and other fleet management functions, for central management of vehicles and vehicle gateways.

Fleet Management Cloud Platform

Easy-to-use Development Platform for Custom Applications

Powerful edge computing capabilities facilitate the development of custom applications. The remote fleet management platform is easy for secondary development by third-party software developers.

Easy-to-use Development Platform for Custom Applications

Support Mainstream IoT Cloud

With an open cloud ecosystem that supports Microsoft Azure and AWS, the VG710 vehicle gateway offers more options for application developers.

open cloud ecosystem that supports Microsoft Azure and AWS

Product Compare

Vehicle Networking
Model VG710 VT310
Ethernet Ports 4*10/100/1000Mbps, RJ45 -
Dual SIM 2 1
Bluetooth Bluetooth 4.1 Bluetooth 4.1
USB USB 2.0 -
Serial Ports 1*RS232, 2*RS485 1*RS232
Python Programs ✔ -
Docker ✔ -
Diagnostic Interfaces 2*CANbus, 1*J1708, 1*LINBus 2*CANbus, 1*J1708
I/O Ports 4*DI/AI and 4*DO 4*DI, 1*AI, 3*DO
GNSS Receiver  GPS, GLONASS,Galileo,Beidou GPS
Protection Rating IP64 IP67
Cloud Platforms AWS, Azure, Aliyun AWS, Azure, Aliyun, Wialon,
WhiteLabel Tracking

Related Solutions

Product Detail

InVehicle G710 High-Performance Vehicle Gateway with dual SIM InVehicle G710 High-Performance Vehicle Gateway

Packaging List

Certification

InVehicle G710 High-Performance Vehicle Gateway certifications
Network type Model(region) Band
LTE CAT-6

VG710-FS39
(North America, Latin America, Caribbean Coast)

 LTE-FDD 700/850/1700/1900MHz, Band 2/4/5/12/13/17/29
UMTS/HSPA+ 850/1700/1900MHz, Band 2/4/5
GSM/GPRS/EDGE 850/900/1800/1900MHz
VG710-FS59(EMEA, APAC) LTE-TDD 1900/2300/2600MHz, Band 38/39/40/41
TD-SCDMA 1900/2000MHz, Band 34/39
LTE-FDD 700/800/850/900/1800/2100/2600 MHz, Band 1/3/5/7/8/18/19/20/26/28A/28B
UMTS/HSPA+ 850/900/1800/2100MHz, Band 1/3/5/6/8
GSM/GPRS/EDGE 900/1800MHz

InVehicle G710 Hardware Specifications
Hardware Platform
CPU ARM Cortex A CPU
RAM 1G/512MB DDR3
FLASH 8GB eMMC
Main Frequency 717MHz
Satellite Navigation
GNSS Receiver GPS, GLONASS, Galileo, Beidou
Built-in Sensor Inertial navigation sensor (accelerometer and gyroscope)
Positioning Deviation 1.5m (With SBAS); 2.5m (Autonomous)
Tracking Sensitivity -160dBm
Location Update Rate MAX 10Hz
Interface
Cellular LTE CAT6/CAT4
Ethernet

4*10/100/1000 Mbps

RJ45 interface
Serial Port RS232 serial (DB-9)
USB Port USB2.0 Micro-B (Readwrite: Max 480Mbps)
MicroSD Micro SD Card (up to 32GB, 20MB/s)
Bluetooth Bluetooth 4.1
Antenna SMA-K: Cellular, GNSS, Diversity; RPSMA-K: 2*WiFi, Bluetooth
Indicator System, LTE, Signal, GNSS, WiFi 2.4G, WiFi 5G, U1, U2
WiFi
Frequency 2.4G / 5GHz dual-band
Protocol
 Wi-Fi 5
Maximum Output 2.4G: 17dBm
5G: 17dBm
Working Mode AP / Client
Automotive Interface
DI
 6 * digital input
AI 6 * analog input
DO

4 * digital output
Diagnostic Interface CanBus
RS485
 RS485 serial (A+, B-, GND)
Other
 1 WIRE (driver ID/temperature sense)
Power Supply
Pin Definition V+, V-, ignition signal, NC (4 pins)
Input Voltage 9-36VDC [configurable to 7-36VDC]
Protection
 Built-in voltage transient protection, with delayed ignition induction
Standby Power
 0.006W - monitors ignition signal only; system starts on ignition
Operating Power 12.00W - average when RF module not running at full load
Peak Power
 18.20W - peak value when RF module running at full load
Mechanical
Installation
 Wall-mounting
Protecting Rating
 IP64
Cooling
 Radiation cooling
Housing
 Die-cast aluminum
Dimensions
 186 x 128.5 x 48
Real-Time Clock
 Supported
Weight
 775g
SIM Card Slot
 Dual SIM
SIM Card Spec
 2FF
Environment
Operating Temperature -30 °C to +70 °C / -22 °F to +158 °F
Storage Temperature -40 °C to +85 °C / -40 °F to +185 °F
Humidity 95% RH @ 60°C
Vehicle
Automotive Standard ECE-R118, IEC60068-2-31
Rail Standard EN50155, EN50121， EN61373, EN45545
EMC
 Level 3 (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-18)
Physical
Shock IEC60068-2-27
Vibration IEC60068-2-6
Fall IEC60068-2-32
Certificate

CE, FCC, IC, PTCRB, AT&T, E-Mark, RoHS
InVehicle G710 Software Specifications
Network Connection
Network Access APN, VPDN
LAN Protocol ARP, Ethernet
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAP V2
Network Protocol
IP Application IPv6,Ping, Traceroute, DHCP server/relay/client, DNS relay, DDNS, Telnet, SSH, HTTP, HTTPS, TFTP, FTP, SFTP,Portal
IP Routing Static routing, RIP, OSPF, BGP, IGMP Proxy
Network Security
Firewall SPI, DoS attack defense, multicast/Ping probe filter, ACLs
Supports NAT, PAT, DMZ, port mapping, virtual server
User Level
 2 levels: administrator; read-only user
AAA
 Local authentication, Radius, Tacacs+, LDAP
CA Certificate
 PEM, PKCS12, SCEP
VPN
 IPsec VPN, L2TP, PPTP, GRE, OPENVPN, CA
Reliability
Backup
 Floating routing, VRRP, interface backup
Link Detection
 Sends heartbeat packet to detect, auto redial when disconnected
Watchdog Runs self-detection and auto-repairing of device faults
Offline Storage Built-in cache, records key data when network unavailable
Port
VLAN Partition
 Support
Port Mirroring
 Support
WLAN
Protocol
 IEEE802.11 b/g/n/a/ac
Security
 Shared key, WPA/WPA2 authentication, WEP/TKIP/AES encryption
Network Management
Configuration Local or remote HTTP, HTTPS, Telnet, SSH
Upgrade
 Local or remote WEB, DM, TFTP, FTP, SFTP server
AAA
 Local / Radius / TACACS +
Network Diagnostic Ping, Traceroute, Sniffer (network packet capturing tool)
Edge Computing Framework
Edge Computing Platform An edge computing platform integrating network, computing, storage and applications
Edge Computing Engine Python & Docker
SDK Python 3 SDK, Docker SDK and Azure IoT Edge SDK
IDE Visual Studio Code
IoT Architecture
 Supports MQTT, DDS, AMQP, XMPP, JMS, REST, CoAP
3rd Party Cloud MS Azure, SmartFleet and development APIs for other third-party platforms
Docker images Node-RED, Ubuntu, Docker for ARM 32 etc.
Application Services
Fleet Management Cloud InHand SmartFleet cloud platform: task allocation, route planning, vehicle tracking, real-time messaging, geofencing, batch firmware upgrade, batch configuration backup, application upgrade
Vehicle Telemetry Rich interfaces for vehicle telemetry and asset tracking devices
Event Alarm Customizable event alarms: digital input, network, service status, power supply, temperature, voltage, etc.
Message Push SMS, Email, App, device digital output
